Zmotion focus on motion control and automation solutions. There are motion controller, vision motion controller, also motion control card, and each has several series. Today, motion control card is the "main character", that is, Zmotion motion control card -- ECIO series IO card. Specifically, through C# language, develop ECI IO card and test interaction speed of multiple IO reading and writing.
Let's begin!
(1) IO Card Function

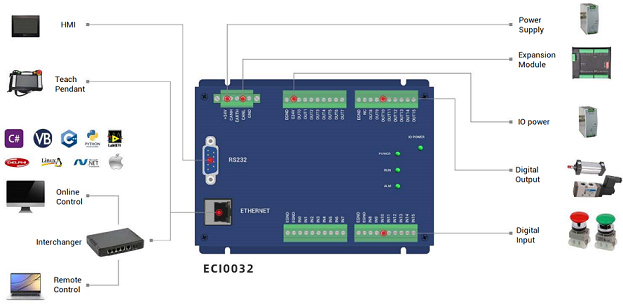

For, ECI0032/ECI0064 ECIO series motion control card, it can be connected to the PC through Ethernet, RS232 communication interface for receiving commands from PC to execute. In addition, each expansion module can be linked through CAN bus to expand inputs and outputs.
ECIO series motion control cards (ECI0032/ECI0064) uses optimized network communication protocol to watch logic control and IO status in real-time.
As for the application program, VC, VB, C++, C# can be used to develop. While the program is running, it is necessary to use dynamical library zmotion.dll. During debugging, it can connect to ZDevelop and controller at the same time, in this way, easy to debug and convenient to observe.

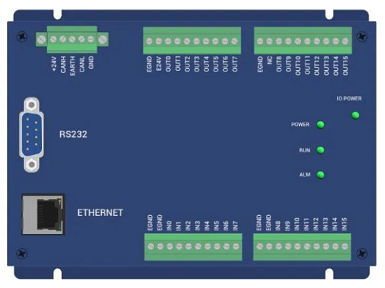

ECI0032

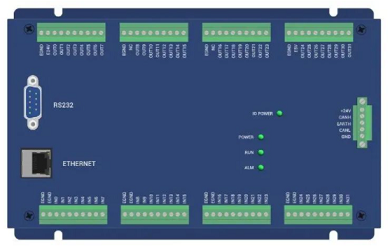

ECI0064

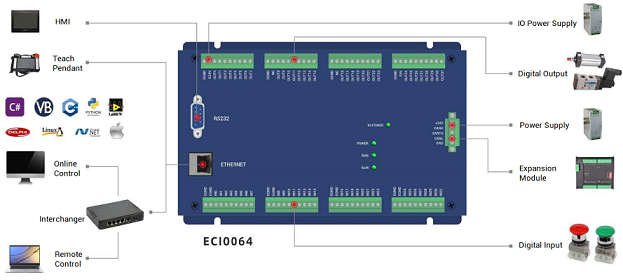

(2) IO Card Hardware Interface

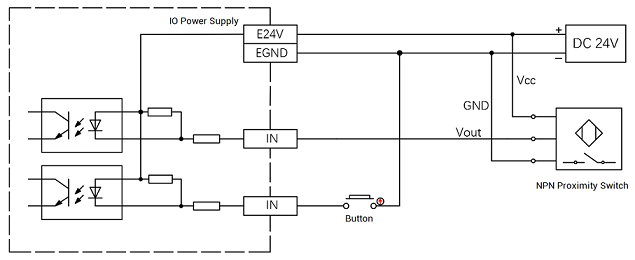

general input wiring reference

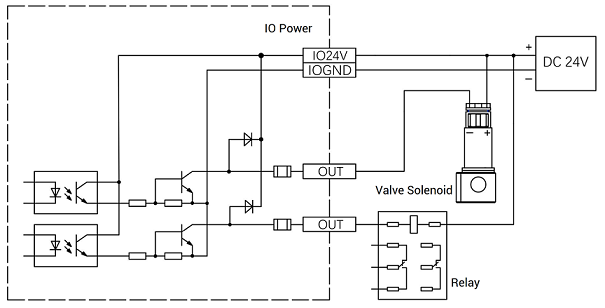

general output wiring reference
For more specific information, please refer to each user manual from "download".
(3) IO Control Card Basic Information
(1) New build WinForm project & Add function library

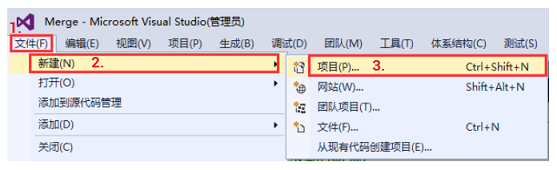

In VS2015 menu, click "file" -- "new build" -- "project".

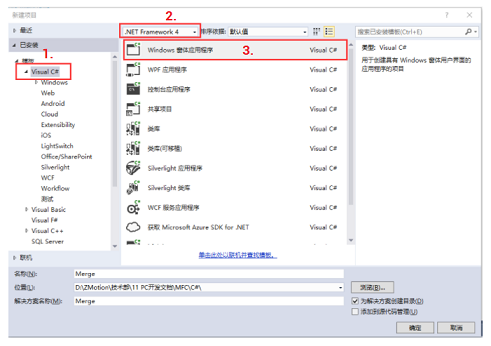

Select "Visual C#", .NET Framework 4 and Windows app.
Obtain C# function library from the manufacturer, or c ontact us directly.
Copy obtained C# library files and relevant files into new-built project.

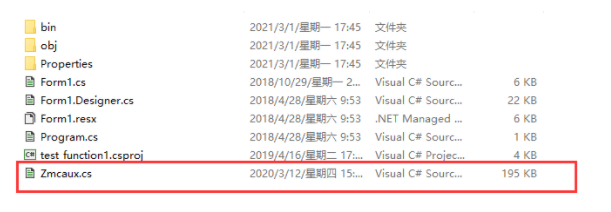

--copy zmcaux.cs file to new created project--

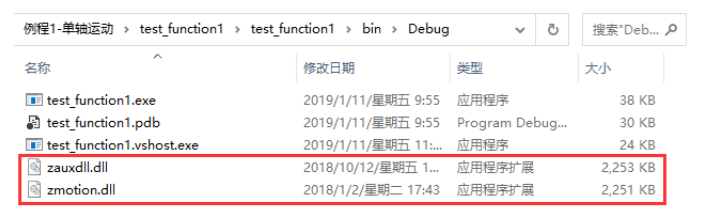

--put zaux.dll and zmotion.dll file into bin\debug folder--

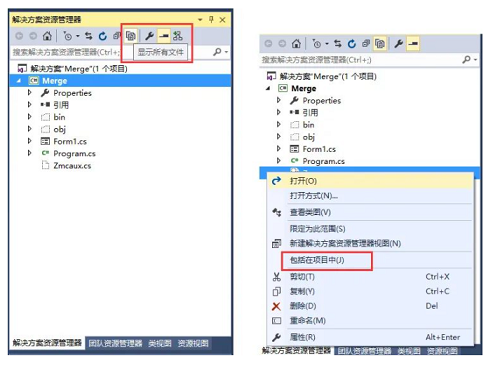

Now, use vs to open new-built project file, click "show all files" in the right "solution resource manager". Then, right-click zmcaux.cs file -- included in project.

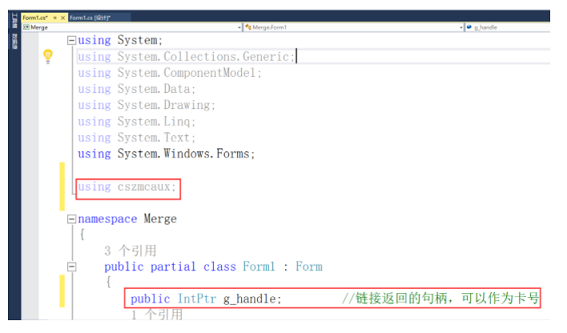

Double click Form1 in Form1.cs, when code editing interface appeared, write " using cszmcaux" in the beginning of the file, and declare controller handle "g_handle".
Here, project was created, it is time to do C# project development.
(2) PC Function Introduction
Get PC manual firstly from Zmotion website -- download -- software manual, or contact us directly.

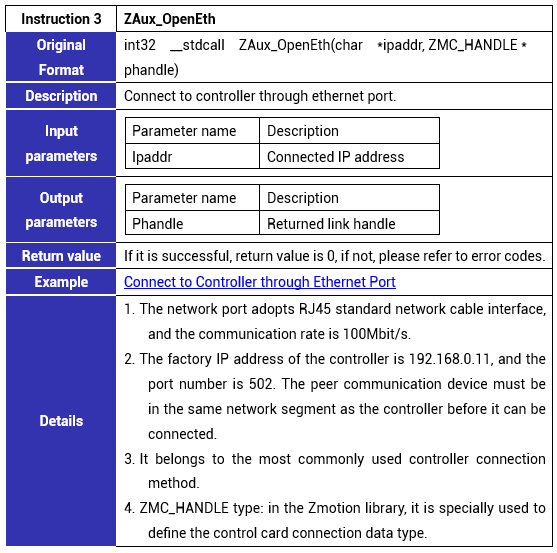

--link with controller to get link handle--

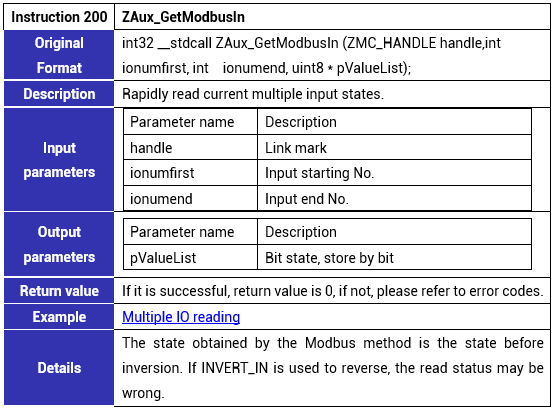

--rapidly read multiple inputs' current status--

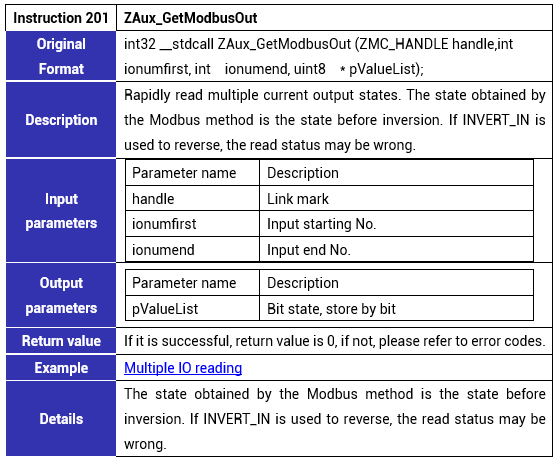

--rapidly read multiple outputs' current status--

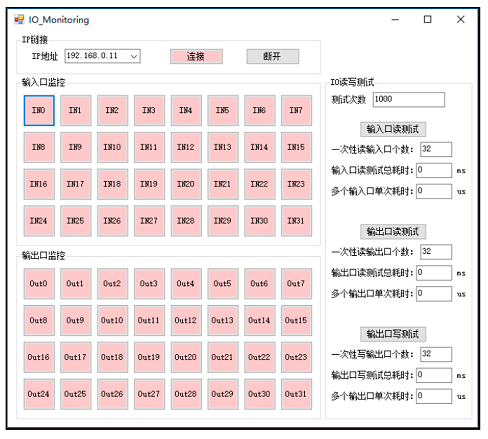

(1) Routine Interface
(2) Relevant Codes

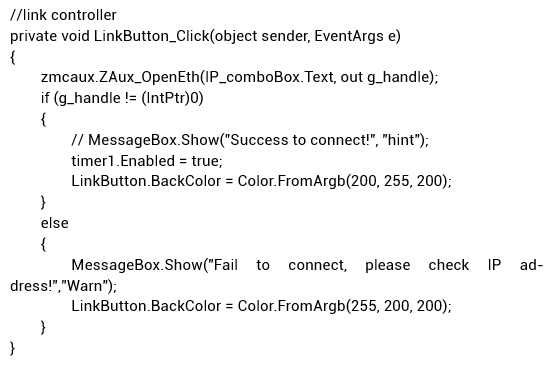

--call the interface function ZAux_OpenEth() that is used to link with controller in event processing function of link button to connect to controller, then open timer 1 to watch controller IO states when linked--
--watch controller IO status through timer 1--

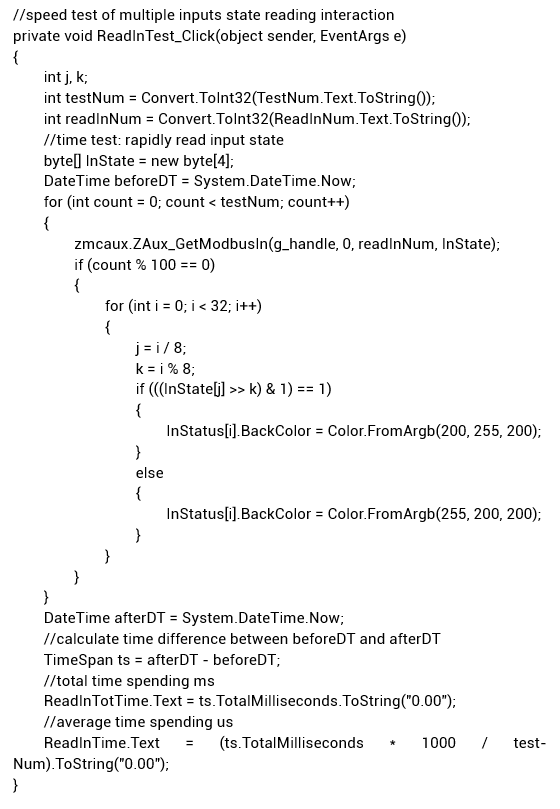

--test function: multiple inputs' state reading speed--

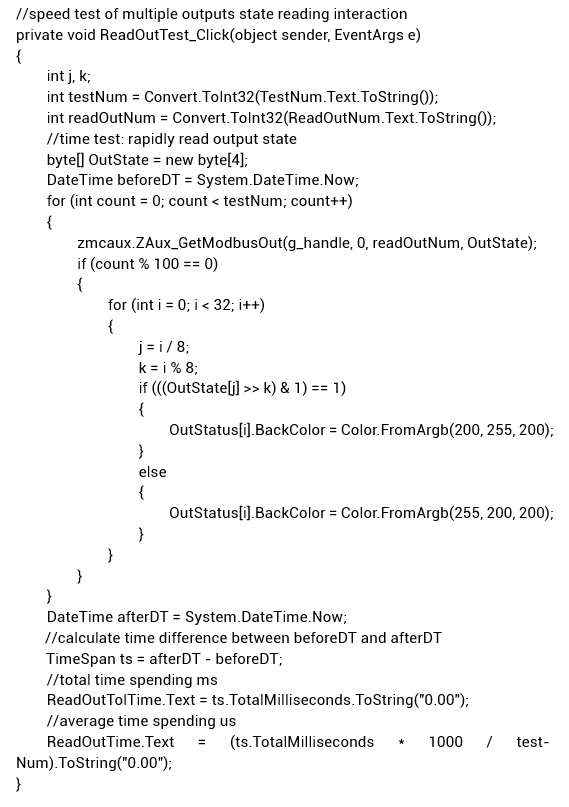

--test function: multiple outputs' state reading speed--

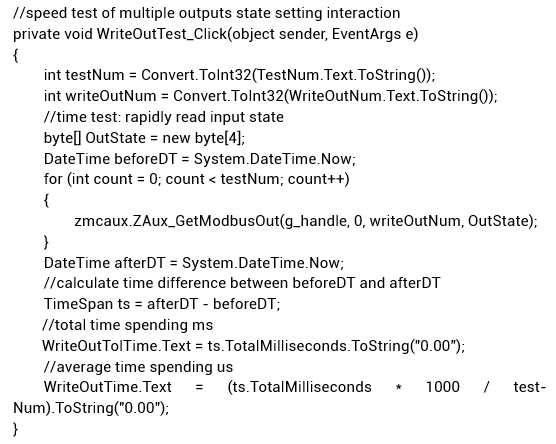

--test function: multiple outputs' state configuration--
(3) Test Result of Interaction Speed Between Multi-IO And Upper Computer
32 inputs and 32 outputs.
Reading and writing times: 1000

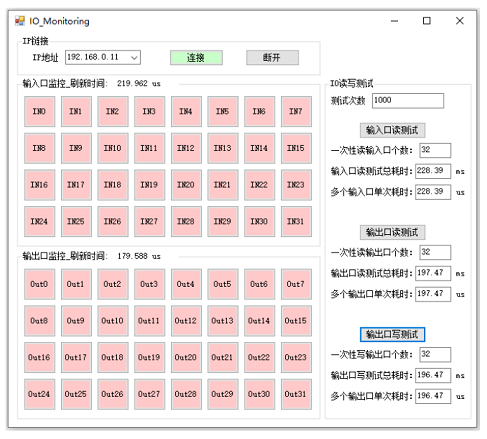

Interaction speed test result:
32 inputs and 32 outputs.

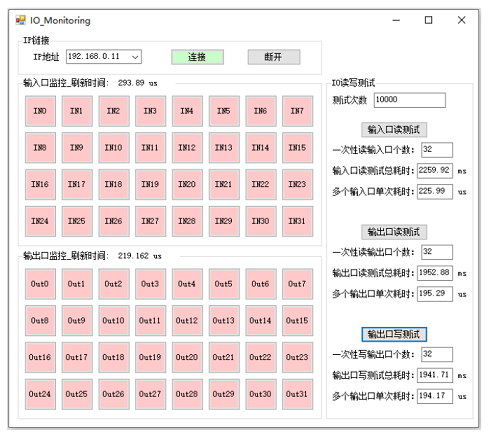

Reading and writing times: 10000
Interaction speed test result:
32 inputs and 32 outputs.
Reading and writing times: 100000
Interaction speed test result:
The above is to test the reading speed of 32 inputs, the reading speed of 32 outputs and the writing speed of 32 outputs. From the data display of the above operation effect diagram, whether it is an input port or an output port, their interaction speed is maintained at around 200us.
When the number of tests increases from 1000 to 1W or even 10W, the interaction speed remains at around 200us. That is, the test results are very stable.

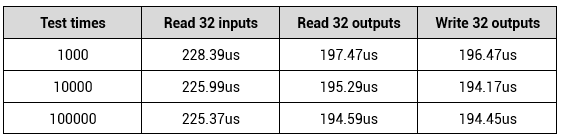

Then, the test data is shown in the table below:
