Industry Application

Industry Application

3C Electronics


As we all know, 3C industry is typical labor intensive, therefore it is necessary to update automation of industry for reducing labor cost in the future. Based on own understanding of motion control technology in the 3C electronics industry, ZMotion focuses on the intelligent transformation of 3C electronics manufacturing, and provides comprehensive and rich intelligent manufacturing solutions for industry customers around its pain points and difficulties.

1. Industry applications and solutions for automatic dispensing equipment

Dispensing equipment is an automated machine that controls the fluid, drips and coats the product surface or inside the product. It can achieve precise glue-controlling of three-dimensional, four-dimensional, and even five-dimensional paths. It can be used to do dot, draw lines, circular or ARC type, etc. And it’s widely used in 3C electronics, LED lighting, automotive electronics, new energy and other industries.

Typical applications:  mobile phone buttons, mobile phone shells, liquid crystal module packaging, optical components, IC packaging, PCB bonding sealant

image 2.png

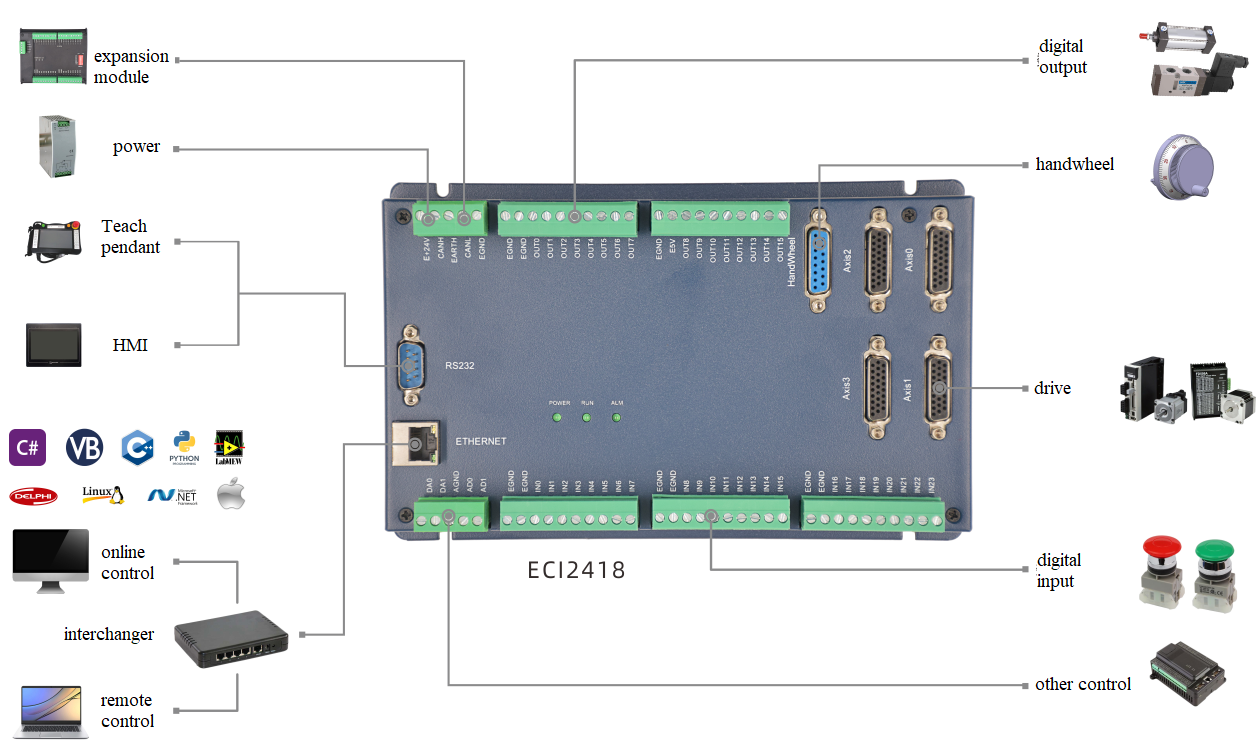

ECI2418-HW


performance:

●  There are 24 IO inputs and 16 IO outputs on board, and the maximum differential pulse output is 10MHZ.

 There are two high-speed PWM outputs with 1MHZ.

Support the precise output of the hardware layer "MOVE_OP".

Support advance/delay switch glue "MOVEOP_DELAY".

Support position synchronization output PSO.

Support continuous trajectory processing.

Support vision shooting.





2. Industry applications and solutions for winding equipment.

Winding machines are widely used in the manufacturing industries of toroidal core voltage regulators, transformers, and current transformers. It is a kind of mechanical equipment that requires high speed and precision control, and requires the control system to provide extreme accurate, smooth linear speed and flexible switching capabilities.

Typical applications: parallel winding machine, ring winding machine, stator and rotor winding machine, textile winding machine, voice coil winding machine...


ZMC432-12


  performance:

●There are  24 IO inputs and 12 IO outputs on board, and 6 physical pulse axes with a maximum frequency of 10MHZ, which can be connected to step. The synchronization period can be up to 100us. In addition, the winding is highly precise and tight,  including soft switching.

16-axis linkage can be reached, and multi-head linkage design can be achieved.

High speed and high precision, high repeatable positioning accuracy.

Being programmable, convenient and flexible realization of various processes (stay wire, winding, wire arrangement, foot wrapping, rubber covering, etc.)

Support PC software online debugging and programming.
