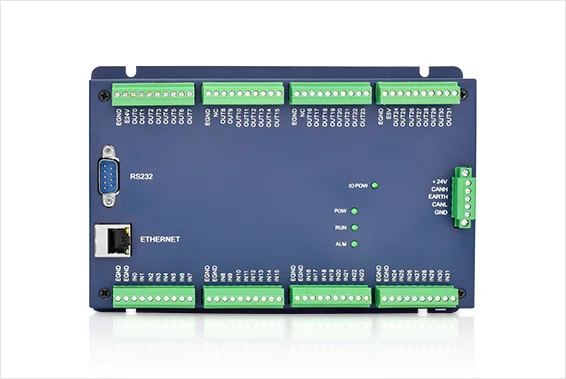

Product name ：ECI0064
Specification: 32 INs and 32 OUTs PC based IO card
ECI0064 ia a kind of PC based IO control card developed by Zmotion, real-time motion control is available through optimized network communication protocol.
Maximum inputs or outputs can reach 512 through CAN bus.
The output current can reach 300mA,which can directly drive some kinds of solenoid valves.
Multi-task and multi-file programming in ZBasic.
Various program encryption methods to protect customers' intellectual properties.

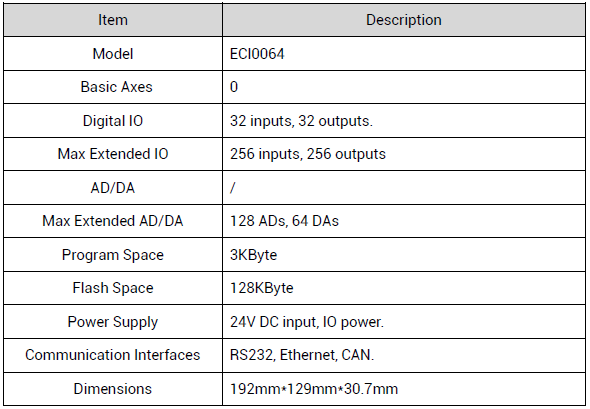

Parameter/Model | ECI0064 |
Basic Axes | 0 |
Max Axes | 0 |
Inner IOs | 32 inputs 32 outputs (all channels with overcurrent protetction) |
Max IOs | 256 inputs 256 outputs |
Inner AD/DA | NO |
Max AD/DA | 128 ADs，64 DAs |
Array Space | 800 |
Procedure Space | 3KByte |
Flash Space | 128KByte |
Power supply | 24V DC (power is within 10w, no need of fan cooling), IO power suppl:24V |
Communication interface | RS232,Ethernet,CAN |
Size | 192*131mm |

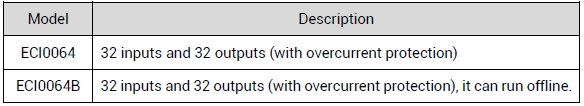

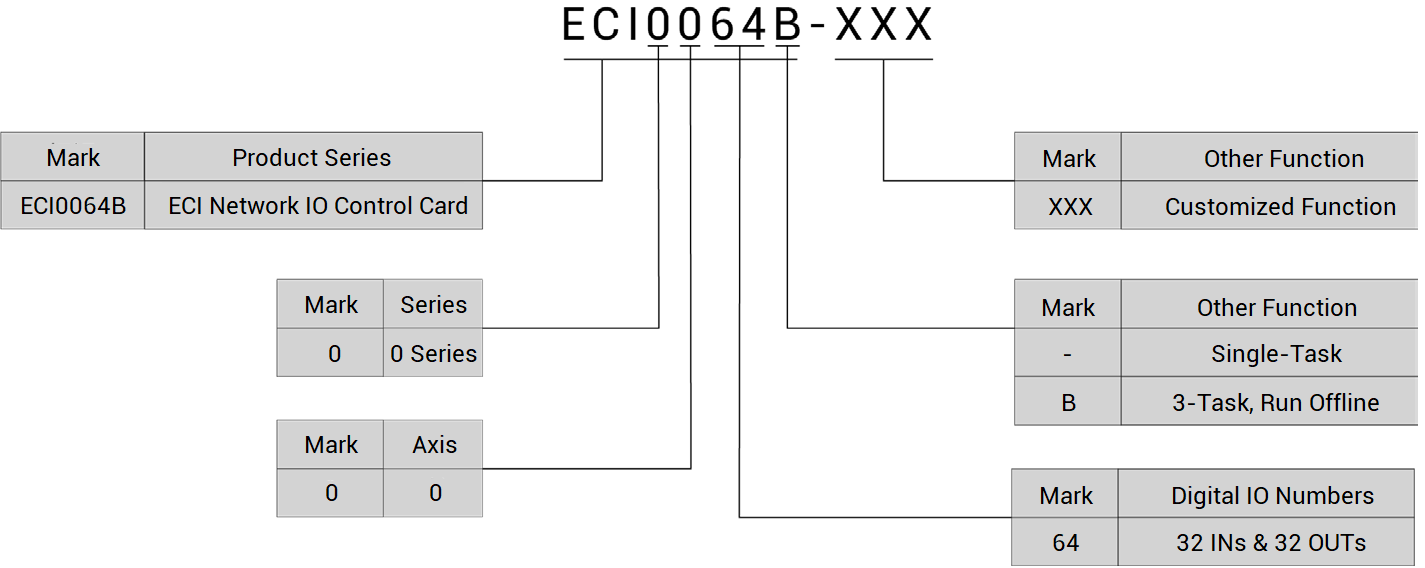

Model | Specification |
ECI0064 | 32 inputs 32 outputs（all channels with overcurrent protectio） |
ECI0064B | 32 inputs 32 outputs（all channels with overcurrent protectio）, can offline operation |
Features
Parameters

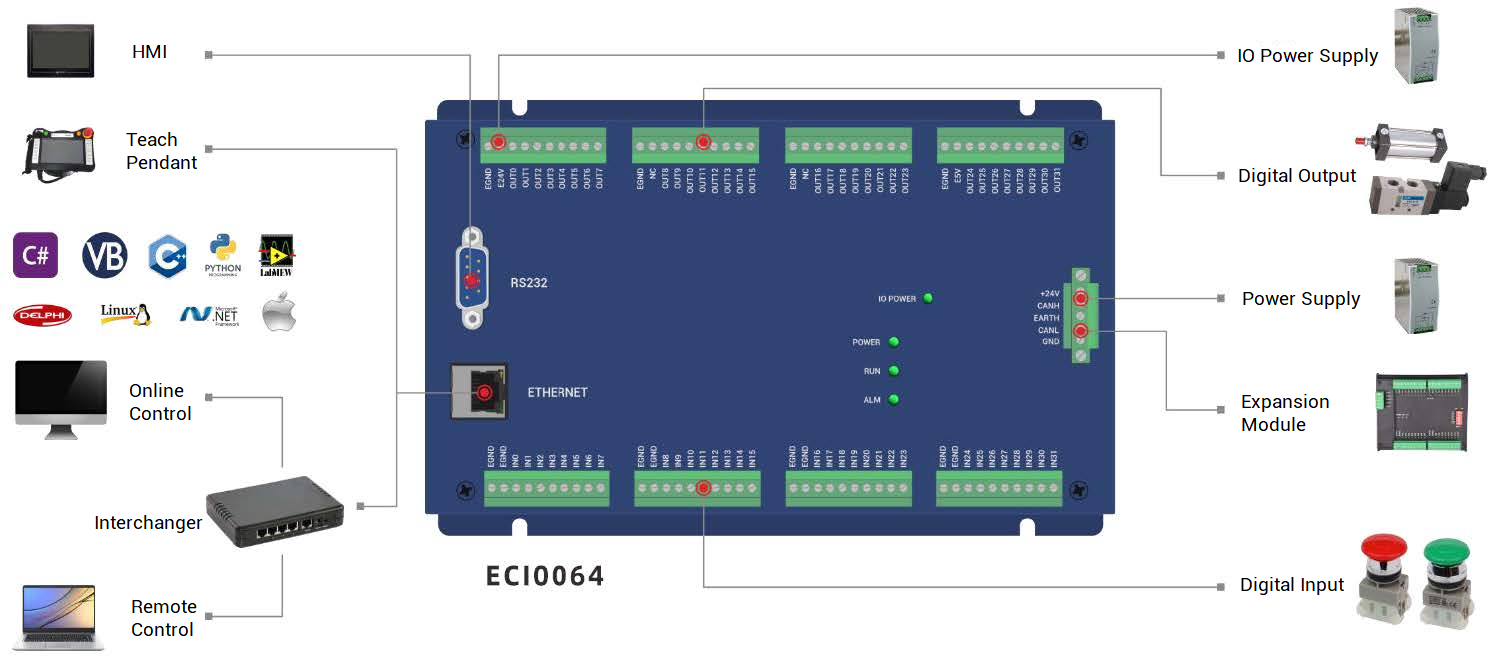

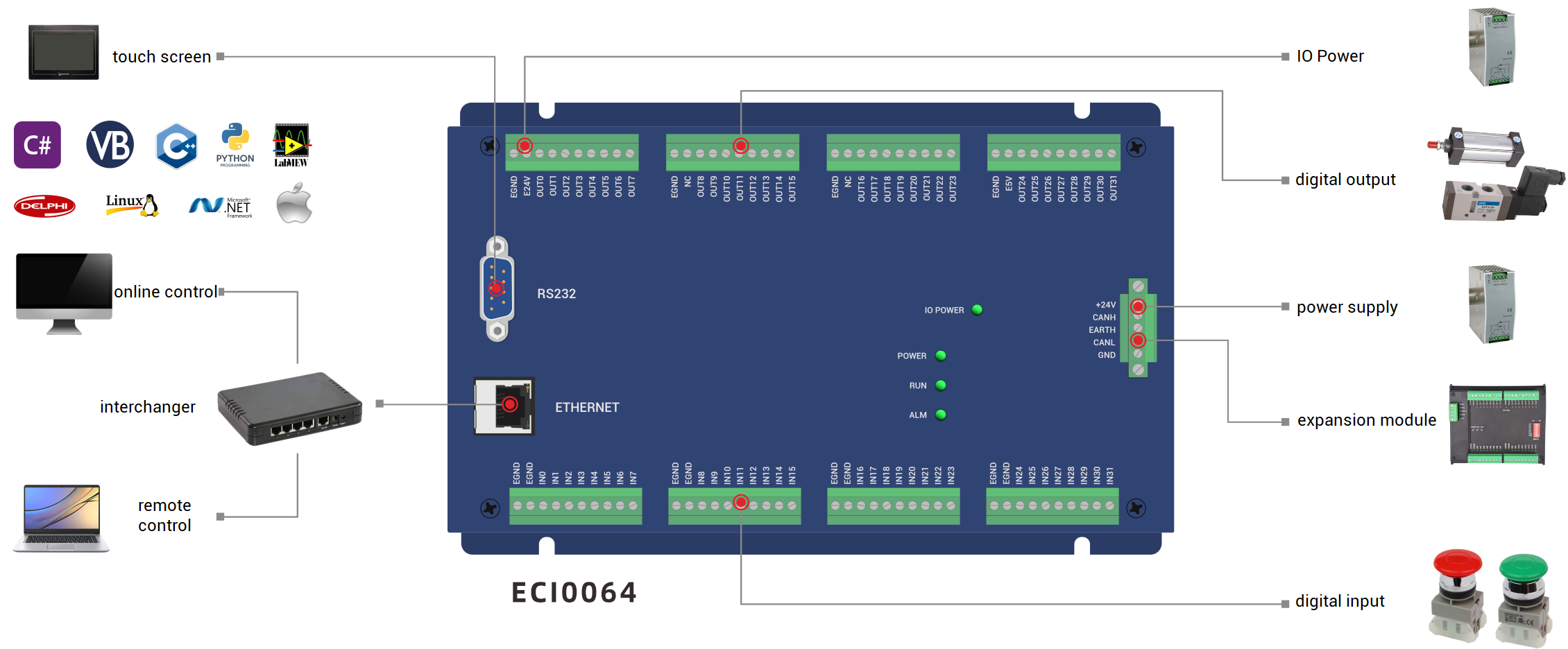

System Architecture
