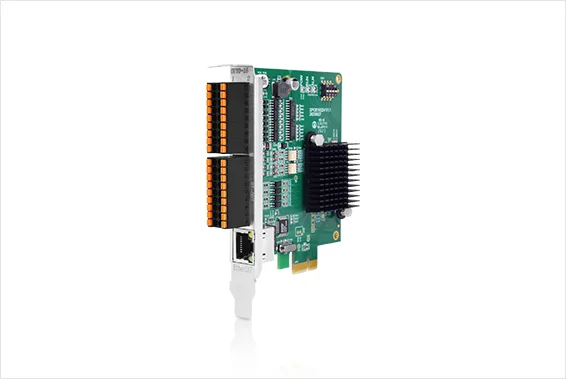

Product name ：XPCIE1032H Motion Control Card
Specification: PCIe EtherCAT Real-time Motion Control Card

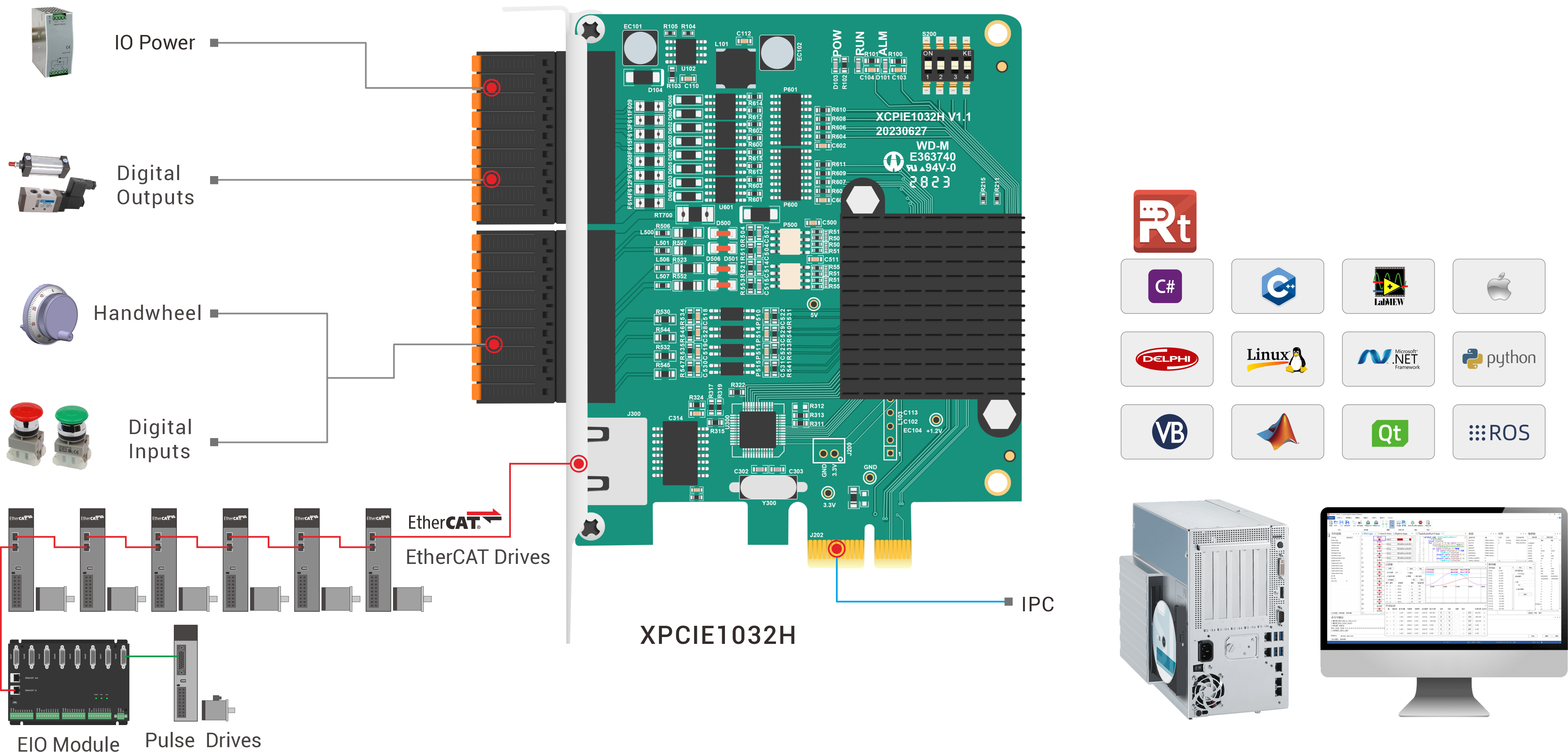

XPCIE1032H motion control card is a kind of EtherCAT bus type based on PCI Express. It supports 6-64 axes motion control, and multiple high-speed digital inputs and outputs are valid, which can achieve multi-axis synchronous control and high-speed data transfer.
XPCIE1032H integrates powerful and rich motion control functions, and MotionRT7 motion control real-time kernel is used together to realize real-time control system under Windows, and instruction interaction speed is faster 10 times than traditional PCI/PCIe cards.
XPCIE1032H supports up to 64 axes motion control (pulse + EtherCAT bus)
Pulse output mode: single-ended direction / pulse.
Support encoder position measurement, which can be configured as handwheel input mode.
Maximum pulse output frequency of pulse axis is 500kHZ.
512 isolated inputs and 512 outputs can be expanded through EtherCAT bus.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Support linear interpolation, arbitrary circular interpolation, helical interpolation and continuous interpolation.
Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis and other functions.
Support pulse closed loop, pitch compensation and other functions.
Support multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCIE1032H Motion Control Card User Manual V1.0 | V1.0 | 1.92MB | Download |
