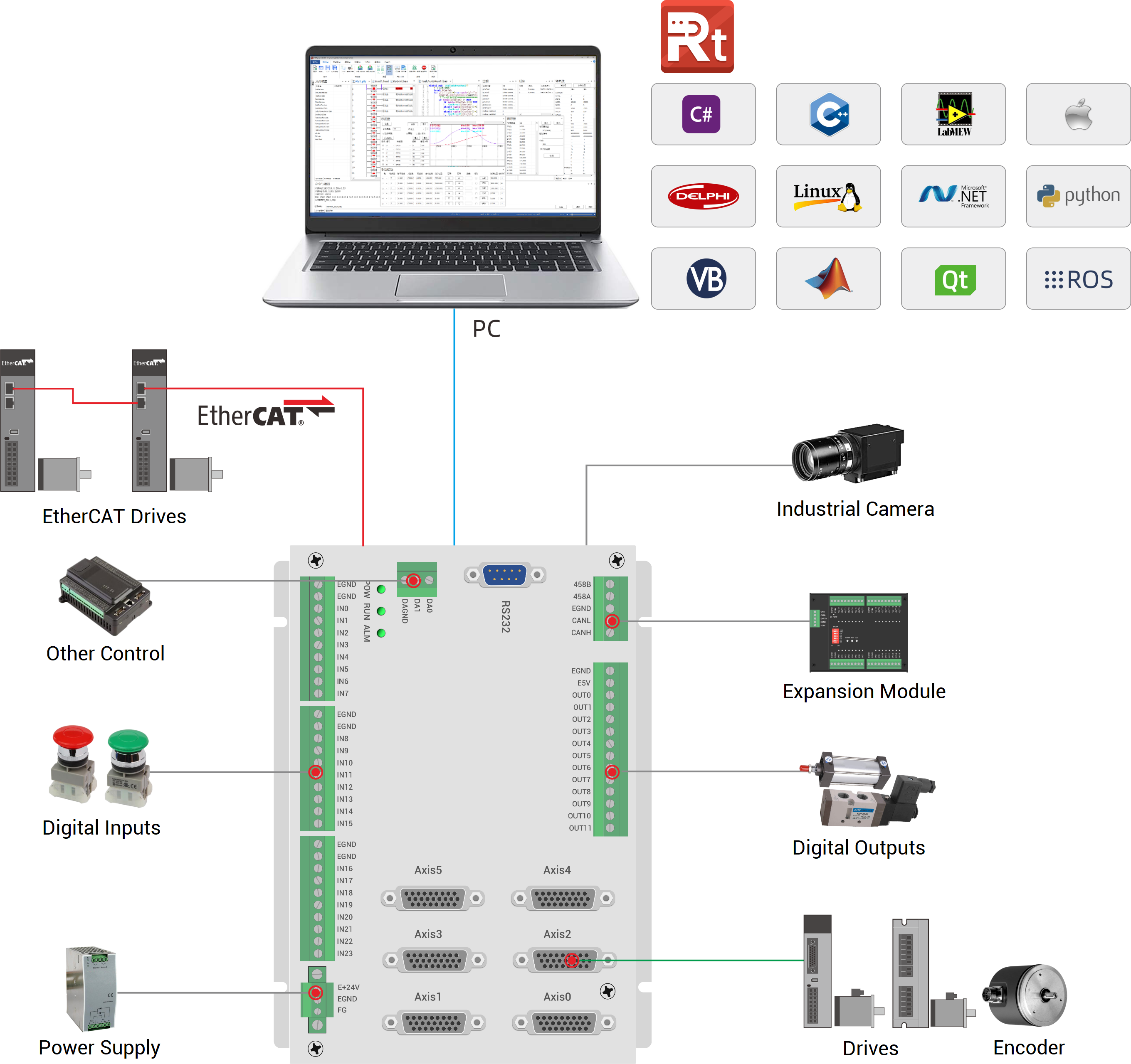

There are rich ommunication interface: board RS232, RS485, CAN interface, 2 Ethernet (with 1000M), EtherCAT, 2 USB3.0, 2 USB2.0, HDMI interface.
Support mainstream USB3.0 camera and GigE camera in the market.
Support vision location, shape match, vision measurement, QR code/bar code detection, etc.
32 axes EtherCAT bus motion control.
The refresh cycle of EtherCAT is 1ms.
The board has 16 digial inputs and 16 digital outputs, 6 channels high-speed pulse output and 6 channels high-speed encoder feedback interface.
Support handwheel high-speed encoder input interface.
Support 4 channels precision output, and can achieve position synchronization output. (POS)
Support vision fly-camera function.
Support electronic cam, electronica gear, position latch, synchronous follow, virtual axes and other functions.
Many complex motion control functions can be realized，such as, linear interpolation, circular interpolation, continuous path processing.
Support Delta, SCARA, 6-joint, dual-rotation and other 30+ robotic arm model algorithm.
Isolation input and output can be extended to 4096 through EtherCAT bus.
A variety of procedure encryption to protect intellectual property rights of customers
Replace PC + Windows + Halcon + Motion Control Card
Basic or Trapezoidal chart program. Actually PLC also can solve machine vision applications.
Direct to interact RAM, which is higher one magnitude than PCI/PCI data interaction.
Users can expand Basic instruction through C language to increase real-time and flexibility.
A motion controller has motion control, machine vision, configuration display and PLC functions.
A software develops motion control, machine vision, configuration display and PLC synchronously.
A program solves motion control, machine vision, configuration display and PLC applications synchronously.
