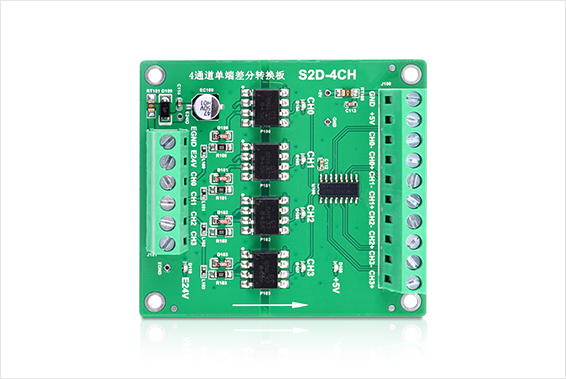

Product name ：S2D-4CH
Specification: 4 channels single port- differential coversion board
S2D-4CH is a 4 channels isolation coversion board, which is from single port signal into differnetial signal. It must be applied in places of differential signal.
4 single port channels input, 4 differential channels output.
Photoelectric isolation.
Max conversion rate: 10MHz.
NPN low-level valid input.
Selectable standard module size.
Item | Specification |
Model | SD2-4CH |
Channel numbers | 4 channels inputs, 4 channels outputs |
Isolation Type | photoelectric isolation |
Max conversion rate | 10MHZ |
Input Type | NPN type low-level electricity valid input |
Max voltage | 29V |
Input start voltage | <15V |
Input close voltage | >15.1V |
Input resistance | 3.3KΩ |
Input Type | differential input |
Output volatge | 0.1V-4.7V |

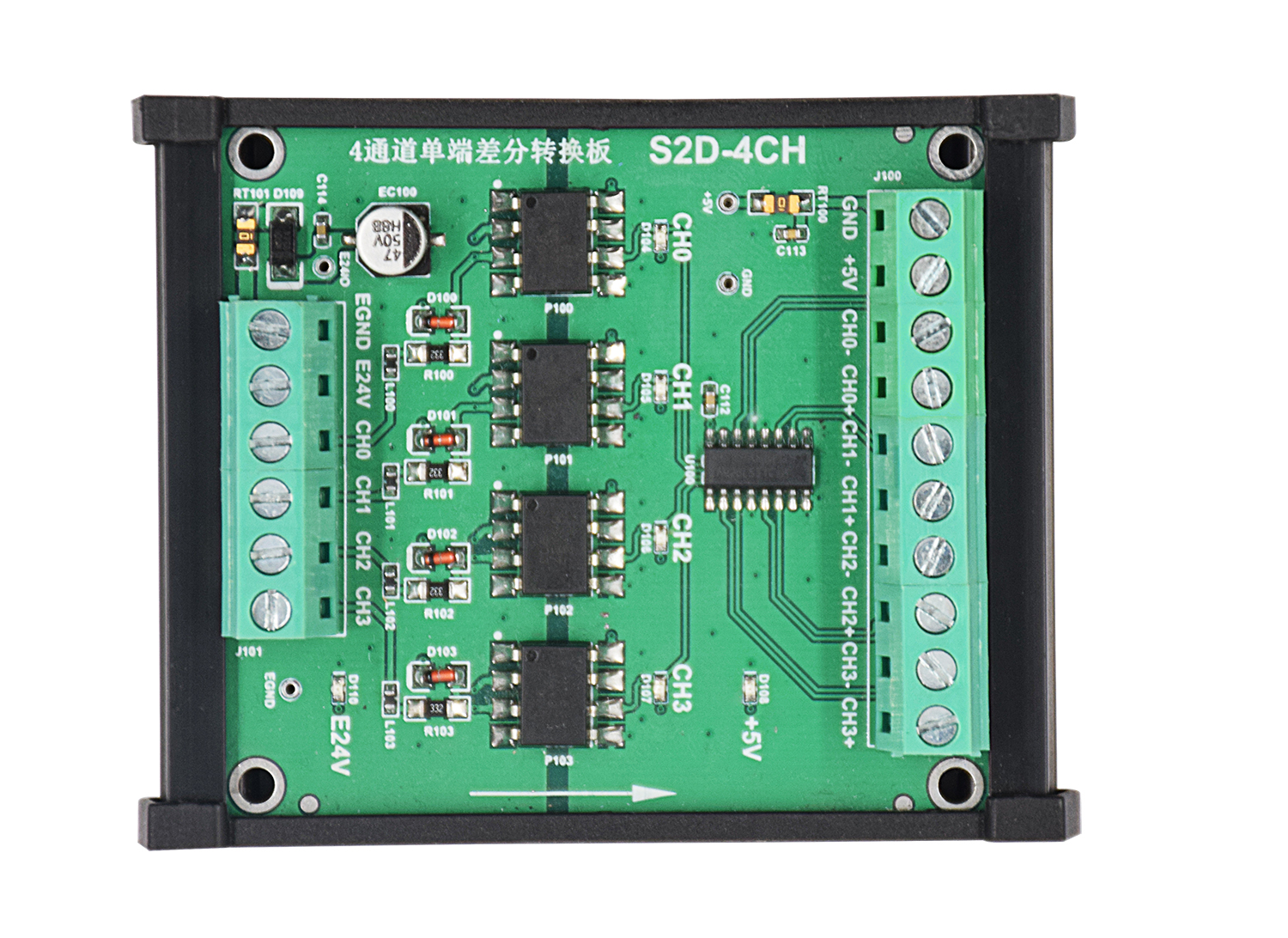

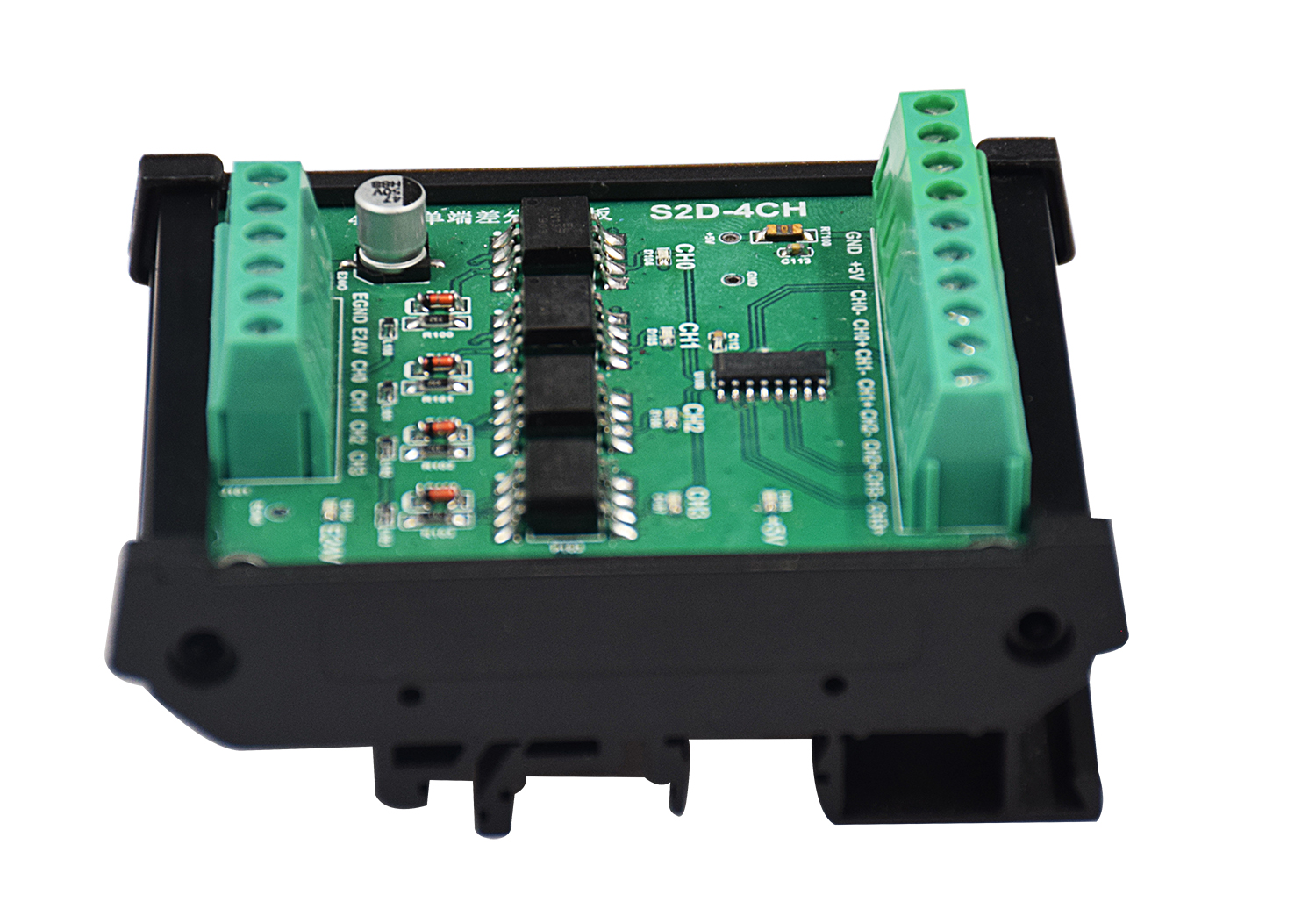

With standard module

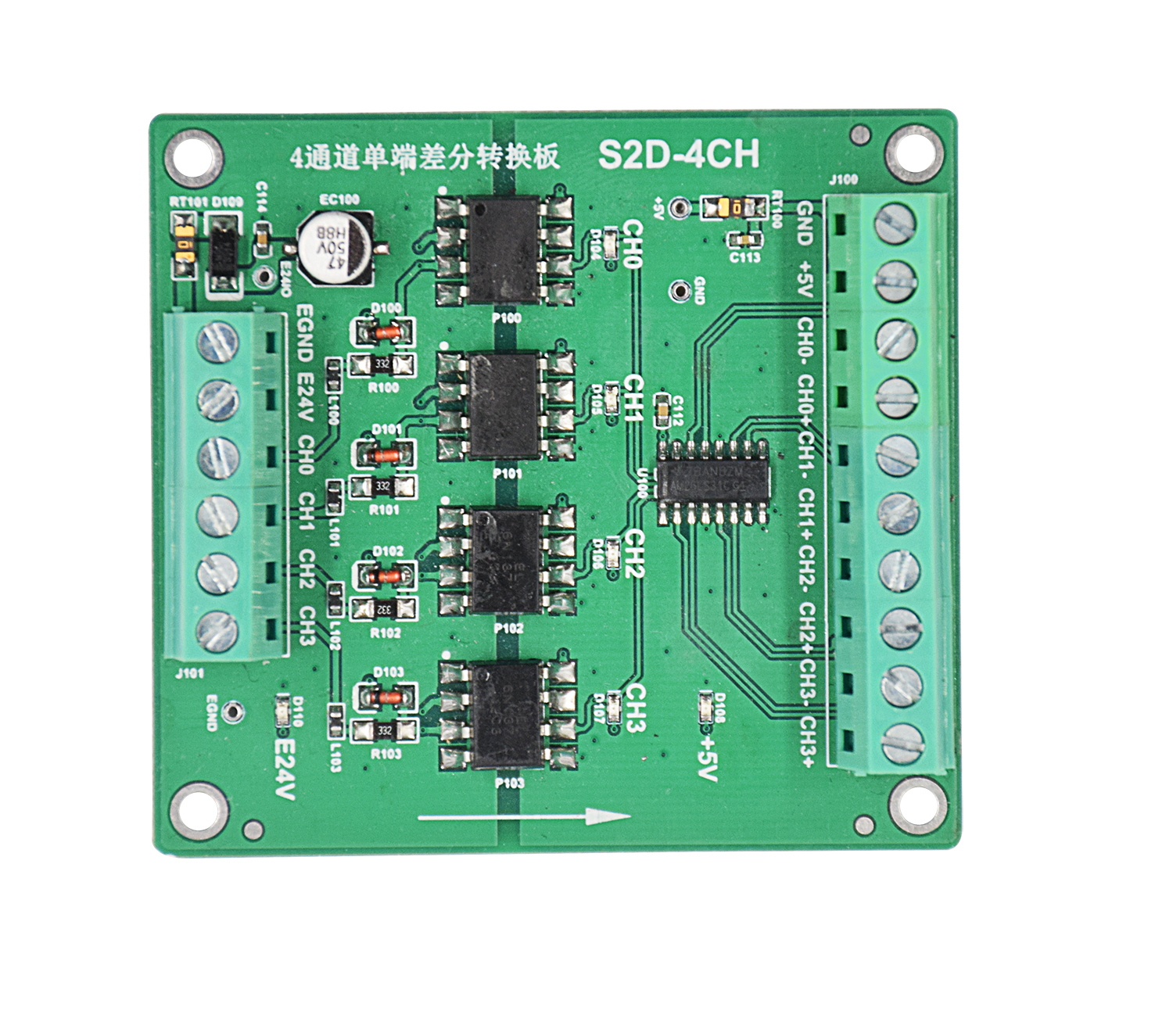

No module
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| S2D-4CH 4 Channel Single Terminal-Differential Conversion Board Version 1.1 | V1.1 | 193KB | Download |
