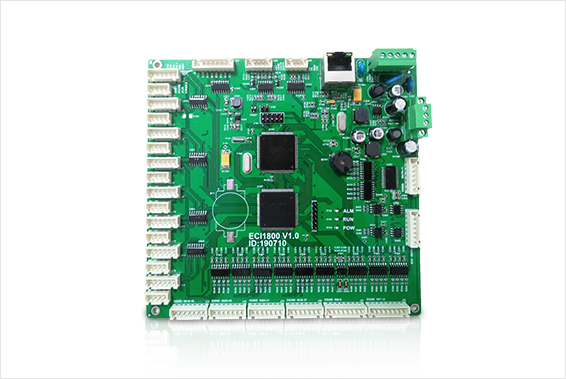

Product name ：ECI1A00
Specification: 10 axes PC motion control card
ECI1A00 Series motion control card support up to 12 axes interpolation of linear, random circular, helical, electronic cam, electronic gear, synchronous follow, virtual-axis, etc. Real-time motion control is available through optimized communication protocol.
Motion control of up to 12 axes
Pulse output mode: direction/pulse or double pulse
Handwheel input mode is supported
Maximum axis output frequency: 5Mhz.
Maximum inputs or outputs can reach 512 through CAN bus.
The positive or negative limit signal / origin signal of axis can be configured to any inputs.
The output current can reach 300mA, which can directly drive some kinds of solenoid valves.
Linear interpolation of up to 6 axes, interpolation of random, spherical and helical.
Electronic cam, electronic gear, position latch, synchronous follow and virtual axis etc.
Multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Parameter/Mode | ECI1808 | ECI1A08 |
Basic Axes | 8 | 10 |
Max Axes | 12 | 12 |
Basic Axes Type | pulse output (another 24V in handwheel) | pulse output (another 24V in handwheel) |
Inner IOs | 46 inputs 20 outputs | |
Max IOs | 256 inputs 256 outputs | |
Inner ADDA | 2 ADs, 2 DAs | |
Max AD/DA | 128 ADs，64 DAs | |
Pulse resolution | 32 | |
Encoder resolution | 32 | |
Speed resolution | 32 | |
Axis Motion Buffer | 128 | |
Array Space | 800 | |
Procedure Space | 4KByte | |
Flash Space | 128KByte | |
Power input | 24V DC(power is with 10w, no need of fan cooling)，IO power supply: 24V | |
Communication interface | RS232, Ethernet, CAN | |
Size | 154*145mm | |
Model | Specification |
ECI1808 | 8 axes, point to point, electonic cam, linear interpolation, circular interpolation, continuous interpolation |
ECI1A08 | 10 axes, point to point, electonic cam, linear interpolation, circular interpolation, continuous interpolation |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| V | Download |
Features
Parameters

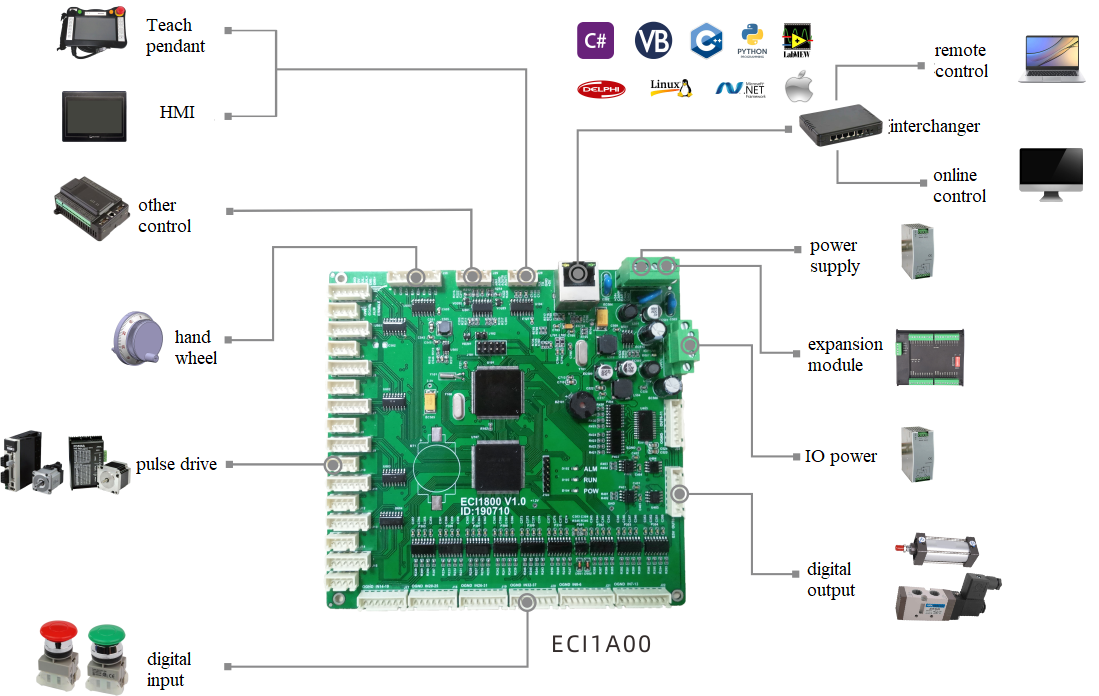

System Architecture
