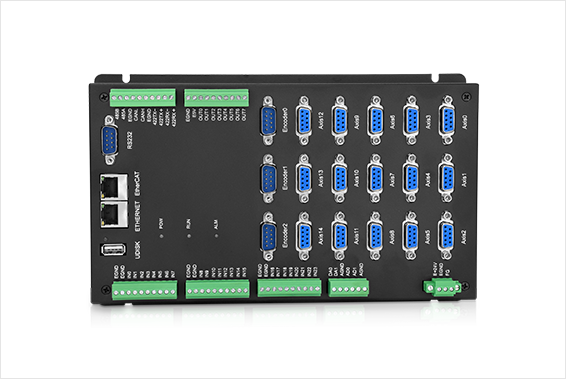

Product name ：ZMC416BE
Specifications: 16-Axis EtherCAT Motion Controller
ZMC416BE EtherCAT motion controller supports linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronous follow, and virtual-axis setting functions (up to 32 axes). And real-time motion control can be achieved through optimized network.
Up to 32 axes motion control.
Pulse output mode: direction/pulse or dual-pulse
Maximum axis output frequency:10Mhz.
4096 isolated inputs and 4096 isolated outputs can be extended through CAN or EtherCAT protocol.
The positive or negative limit signal / origin signal of axis can be configured to any inputs.
The max output current of general digital output can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: EtherCAT, RS232, RS485, RS422, USB, Ethernet.
Support linear interpolation, any circular interpolation, helical interpolation, spline interpolation of 32 axes at most.
Support electronic cam, electronic gear, position latch, hardware comparison output, synchronous follow and virtual axis etc.
Support pulse closed-loop, and pitch compensation.
Multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Support power failure detection and power failure storage.
Features

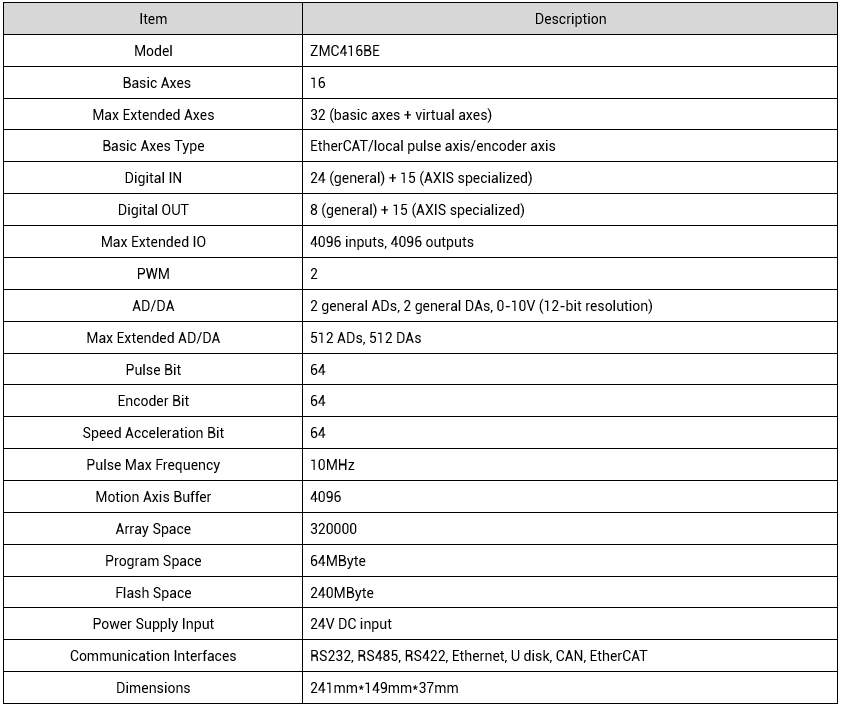

Parameters

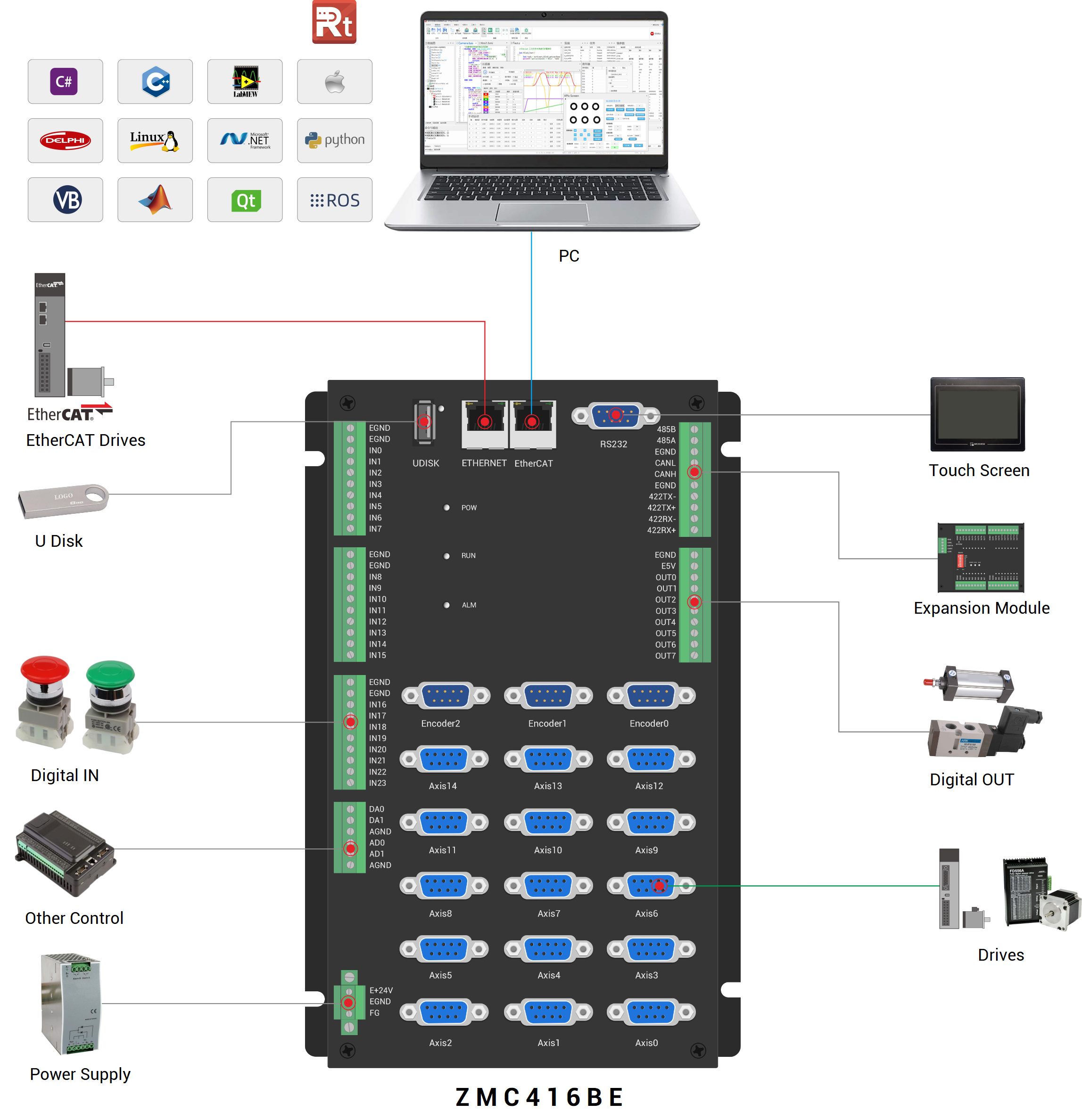

System Architecture
