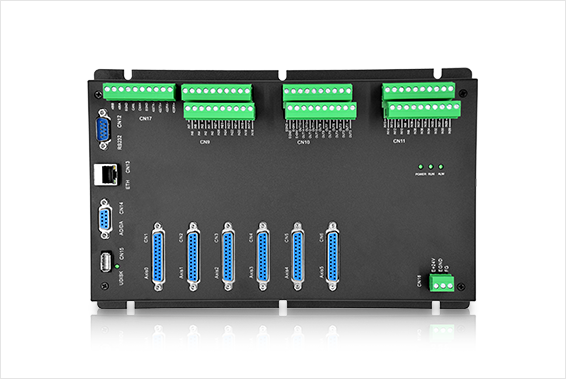

Product name ：ZMC308B
Specifications: 8 axes pulse motion controller
ZMC308B is a kind of pulse motion controller developed by ZMotion Technology. It supports 8 axes itself, but can be extened to 16 axes at most. There are many motion control functions it can achieve, such as, linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronous follow, virtual axis, etc. Also, real-time motion control can be achieved through optimized network communication protocol.
Motion control of up to 8 axes, 8-16 axes.
Pulse output mode: direction / pulse or double pulse.
Encoder position measurement is supported and can be configured as hand wheel input mode.
Maximum pulse frequency output of each axis: 10MHZ.
Isolation inputs or outputs can reach 512 through CAN bus.
The positive or negative limit signal / origin signal of axis can be configured to any inputs.
The output current can reach 300mA, which can directly drive some kinds of solenoid valves.

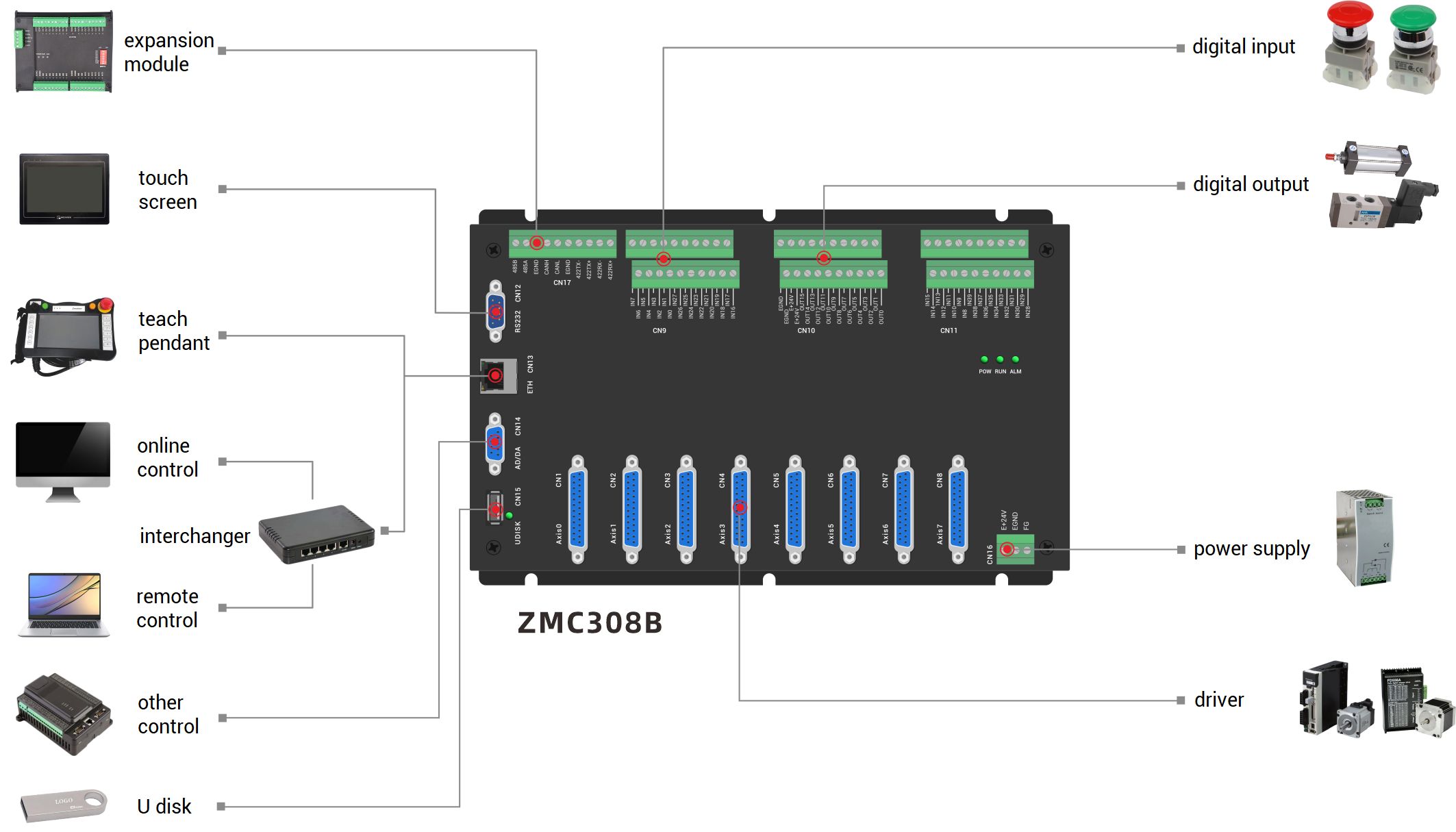

Interfaces: USB drive, RS232, RS485, RS422 and ETHERNET etc.
Linear interpolation of up to 16 axes, interpolation of random, spherical and helical.
Electronic cam, electronic gear, position latch synchronous follow and virtual axis etc.
Pulse closed loop, pitch compensation and other functions.
A variety of program encryption methods to protect the intellectual property rights of customers.
Power failure detection and power failure storage.

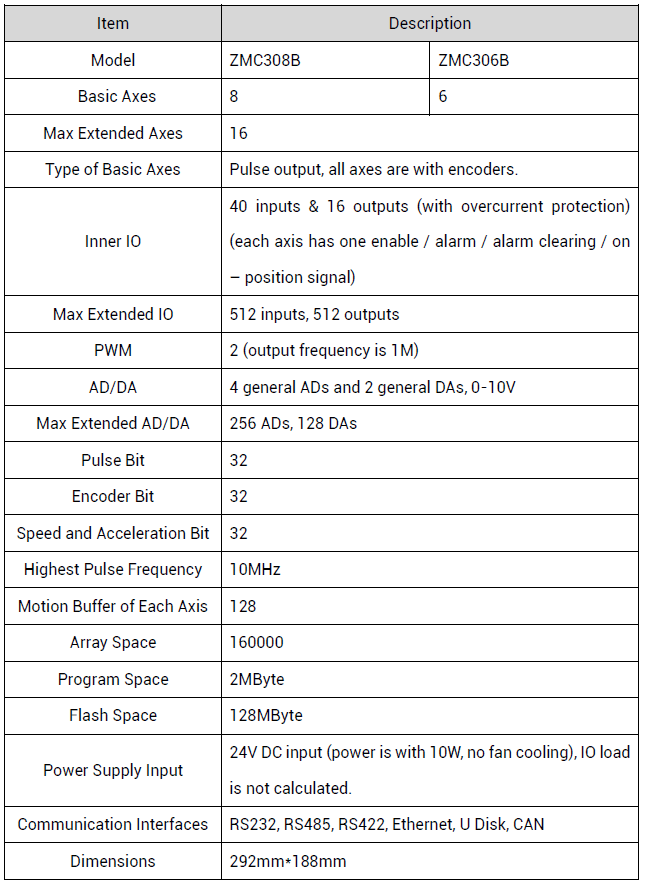

Specification | ZMC308BE | ZMC306BE |
Basic axes | 8 | 6 |
Max Axes | 16 | 16 |
Basic Axes Type | pulse output, all axes are with encoder | pulse output, all axes are with encoder |
Inner IOs | 40 inputs16 outputs(all channels with overcurrent protection)（each axis has enable/warning/warn clearing singal/on position signal) | |
Max IOs | 512 inputs 512 outputs | |
PWM | 2（output frequency 1M） | |
Inner ADDAs | 4 ADs，2 DAs. （0-10V） | |
Max AD/DA | 256 ADs，128 DAs | |
Pulse Resolution | 32 | |
Encoder Resolution | 32 | |
Speed Resolution | 32 | |
Max Pulse Speed | 10Mhz | |
Axis Motion Buffer | 128 | |
Array Space | 160000 | |
Procedure Space | 2MByte | |
Flash | 128MByte | |
Power input | 24V DC (power is within 10w, no need of fan cooling). Power Supply: 10V DC. | |
Communication Interface | RS232,RS485,RS422,Ethernet,USB,CAN,EtherCAT | |
Size | 292*188mm | |

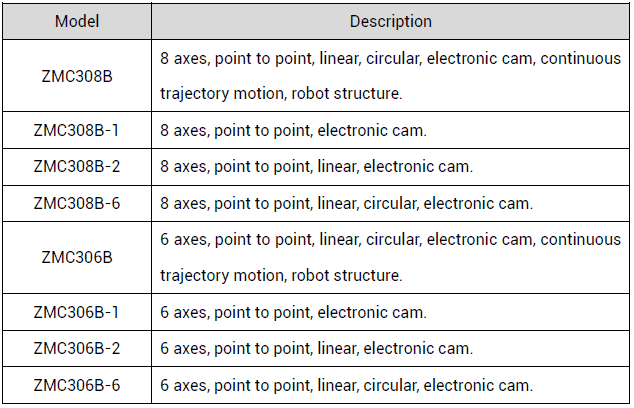

Model | Specification |
ZMC308B | 8 axes, point, linear, arc interpolation, electonic cam, continuous path motion, robotic arm instructions. |
ZMC308B-1 | 8 axes, point, electronic cam. |
ZMC308B-2 | 8 axes, point, linear interplation, electronic cam. |
ZMC308B-6 | 8 axes, point, linear, arc interpolation, electonic cam. |
ZMC306B | 6 axes, point, linear, arc interpolation, electonic cam, continuous path motion, robotic arm instructions. |
ZMC306B-1 | 6 axes, point, electronic cam. |
ZMC306B-2 | 6 axes, point, linear interpolation, electronic cam. |
ZMC306B-6 | 6 axes, point, linear, arc interpolation, electronic cam. |
