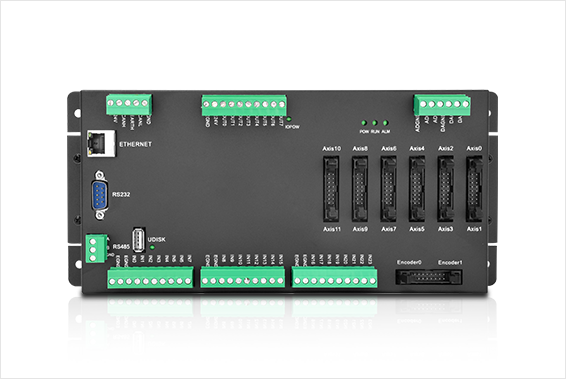

Product name ：ZMC212(stop production)
Specification: 12 axes pulse motion controller
ZMC212 is a kind of pulse motion controller developed by ZMotion Technology. It supports 12 axes itself, but can be extened to 16 axes at most. There are many functions it can achieve, such as, linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronous follow, virtual axis, etc.
Motion Control of 12-16 axes.
Pulse output mode: direction / pulse or double axes.
Encoder position measurement is supported and can be configured as hand wheel input mode.
Maximum pulse frequency output of each axis: 8MHz.
Maximum inputs or outputs can reach 512 through CAN.
The positive or negative limit signal / origin signal of axis can be configured to any inputs.
The output current can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: USB, RS485, RS232, Ethernet
Linear interpolation of up to 16 axes, interpolation of random, spherical and helical.
Electronic cam, electronic gear, position latch, synchronous follow and virtual axis etc.
A variety of program encryption methods to protect the intellectual property rights of customers.
Support multi robotic arm structures.
Independent continunous interpolation on multi-machine.
Parameter/Specification | ZMC212 |
Basic Axes | 12 |
Max extended axes | 16 |
Basic Axis Type | pulse output，axis 0/1 can be configured as encoder |
Inner IOs | 24 in 8 out (all channels with overcurrent protection) |
Max extended IOs | 512 in 512 out |
Max extended AD/DA | 256 ADs，128 DAs |
Pulse resolution | 32 |
Encoder resolution | 32 |
Speed resolution | 32 |
Max Pulse Speed | 10Mhz |
Axis Motion Buffer | 128 |
Array Space | 40000 |
Procedure Space | 460KByte |
Flash Space | 128MByte |
Power supply input | 24V DC input (power is within 10W, no need of fan cooling), IO24V input |
Communication interface | RS232, RS485, Ethernet, USB |
Size | 279.52*127mm |
| Name | Version No | Format | Size | Download |
|---|
Features
Parameters

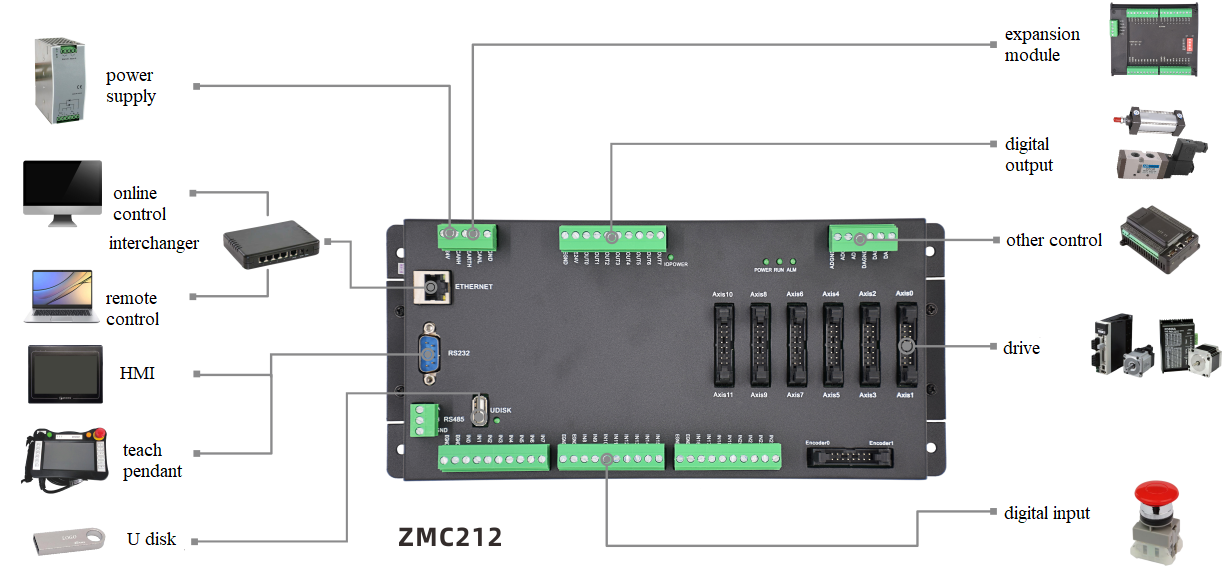

System Architecture
