CAN Bus Expansion

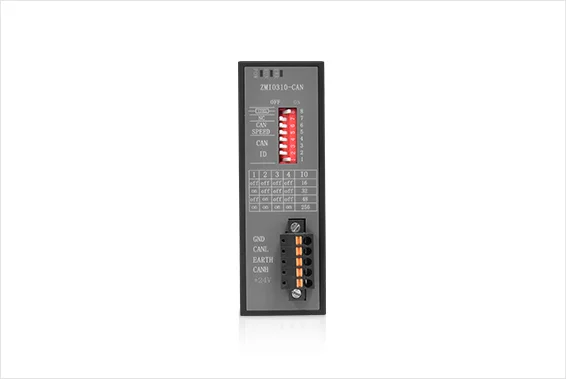

Product name :ZMIO310-CAN

Specification: CAN Bus Slave Station Communication Module

ZMIO310-CAN communication module is a CAN bus slave communication module used together with the controller that is with CAN bus interface. When IO, AIO and other resources are not enough, the ZCAN communication module needs to be added firstly, then, connect to other expansion submodules.

  • Maximum IOs of continuation submodules: max 6 inputs + 6 outputs
    Maximum AIOs of continuation submodules: max 16 ADs and16 DAs
  • Parameter/Specification

    ZMIO310-CAN

    Power supply

    24V DC

    Communication interface

    CAN Bus Interface

    Connection numbers

    Up to 16 ZCAN slave station modules

    Transfer Distance

    two nodes is less than 40m

    Address configuration

    DIP Switch

    Continuation Submodules' expansion

    Up to 6 inputs + 6 output modules and 3 AD/DA modules. The total number is maximum 16, and the actual number depends on each module's power consumption.

    Power

    0.6W

    Internal Power for Back Level

    7.9W



  • 架构图.png

  • Name Version No Format Size Download
    ZMIO310 Vertical Bus Expansion Module User Manual V1.0 V1.0 PDF 2.51MB Download
    ZMIO310 -- 3D Model V ZIP 994KB Download
