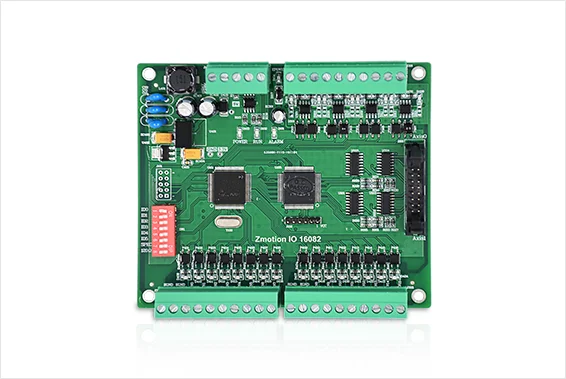

Product name ：ZIO16082 (16 IN & 8 OUT & 2 Axes)

Specification: 16 IN & 8 OUT & 2 Axes CAN Expansion Module

ZIO16082 is an expansion board that can expand digital IO and pulse axes through CAN protocol. Specifically, 16 IN, 8 OUT, and 2 pulse axes can be extended through one ZIO16082. When your controller's IO and axis resources can't meet the requirements, the ZIO16082 can help you.
For IO, you only need to dial the code.
For axis, please do axis mapping.

Features
Parameters

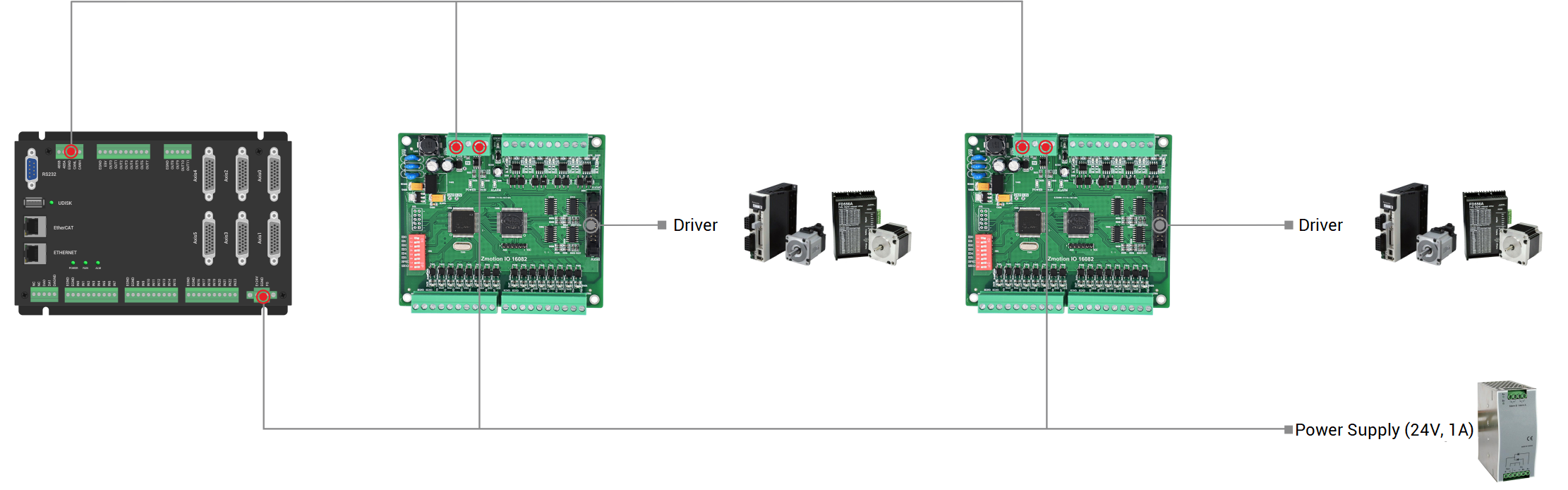

System Architecture
Download

One ZIO16082 extends 16 general inputs and 8 digital outputs.
One ZIO16082 extends 2 pulse axes.
There is one embedded CAN bus port to link with master controller.
Dial switch 1-4 to configure CAN address
Combination of DIP 1-4
Starting IO No.
End IO No.
0
16
31
1
32
47
2
48
63
3
64
79
4
80
95
5
96
111
6
112
127
7
128
143
8
144
159
9
160
175
10
176
191
11
192
207
12
208
223
13
224
239
14
240
255
15
256
271

Dial switch 5-6 to configure CAN speed

Combination of DIP 5-6
Specification
0
Speed 500KBPS
1
Speed 250KBPS
2
Speed 125KBPS
3
Speed 1MBPS

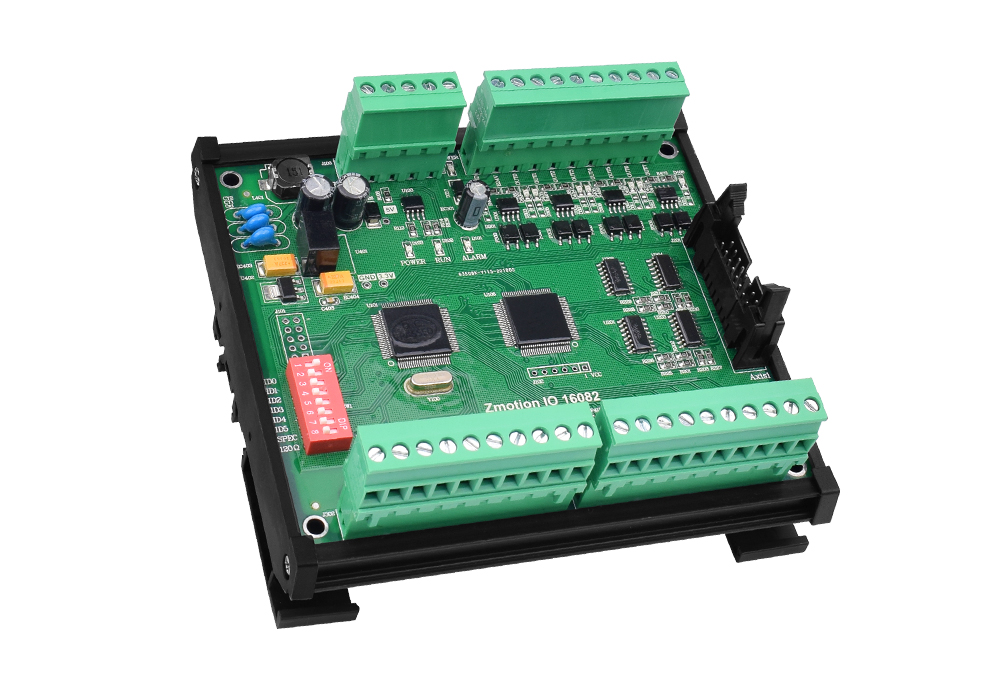

Selectable mounting brackets (ZIO16082M)

Name	Version No	Format	Size	Download
ZIO CAN Expansion Module User Manual V2.2.1	V2.2.2	PDF	3.89MB	Download

Combination of DIP 1-4	Starting IO No.	End IO No.
0	16	31
1	32	47
2	48	63
3	64	79
4	80	95
5	96	111
6	112	127
7	128	143
8	144	159
9	160	175
10	176	191
11	192	207
12	208	223
13	224	239
14	240	255
15	256	271

Combination of DIP 5-6	Specification
0	Speed 500KBPS
1	Speed 250KBPS
2	Speed 125KBPS
3	Speed 1MBPS
