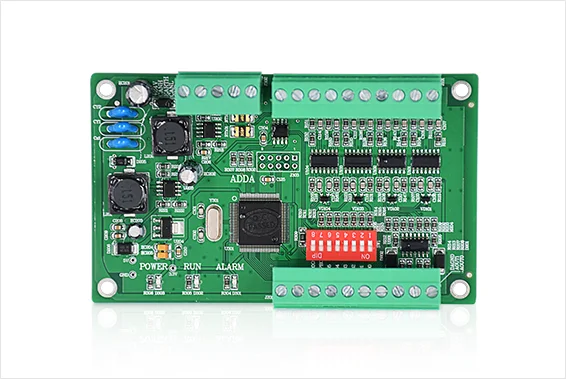

Product name ：ZAIO0802 (8 AD & 2 DA)
Specification: 8 AD & 2 DA CAN Expansion Module
ZAIO0802 is an expansion board that is mainly for expanding analogs, specifically, it can get more 8 analog inputs and 2 analog outputs. When your controller's analogs can't meet the requirements, ZAIO0802 is very suitable.
Expanded analog resources usage is same as ZIO IO resources, just to operate the DIP switch.
One ZAIO0802 extends 8 analog inputs and 2 analog outputs.
There is one embedded CAN bus port to link with master controller.
Combination Value | Starting AD No. | End AD No. | Starting DA No. | End DA No. |
0 | 8 | 15 | 4 | 7 |
1 | 16 | 23 | 8 | 11 |
2 | 24 | 31 | 12 | 15 |
3 | 32 | 39 | 16 | 19 |
4 | 40 | 47 | 20 | 23 |
5 | 48 | 55 | 24 | 27 |
6 | 56 | 63 | 28 | 31 |
7 | 64 | 71 | 32 | 35 |
8 | 72 | 79 | 36 | 39 |
9 | 80 | 87 | 40 | 43 |
10 | 88 | 95 | 44 | 47 |
11 | 96 | 103 | 48 | 51 |
12 | 104 | 111 | 52 | 55 |
13 | 112 | 119 | 56 | 59 |
14 | 120 | 127 | 60 | 63 |
15 | 128 | 135 | 64 | 67 |
Dial switch 5-6 to configure CAN speed
Combination Value | Specification |
0 | Speed 500KBPS |
1 | Speed 250KBPS |
2 | Speed 125KBPS |
3 | Speed 1MBPS |
Selectable mounting brackets (ZAIO0802M)
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZAIO Analog Expansion Module Hardware Manual Version 1.1 | V1.1 | 406KB | Download |
