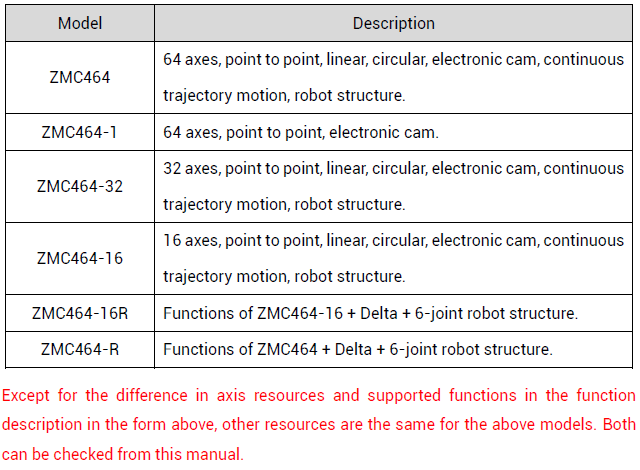

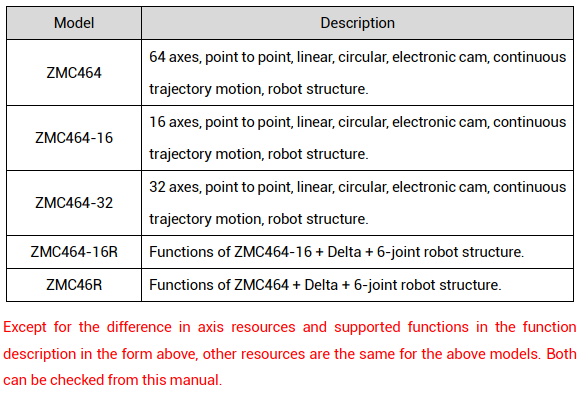

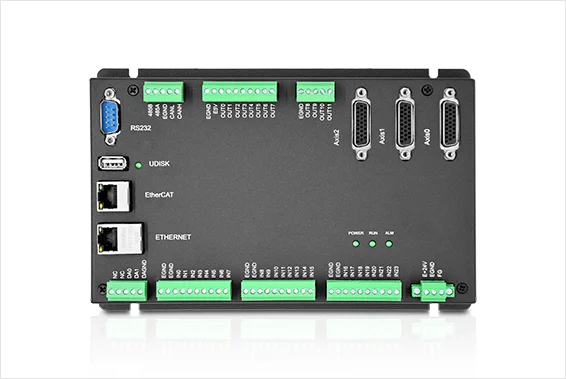

Product name ：ZMC464
Specification: 64-Axis EtherCAT Motion Controller
ZMC464 is one high-performance multi-axis standalone motion controller that is compatible with EtherCAT and pulse. It supports up to 64 axes for complex continuous trajectory control requirements.
ZMC464 high-performance multi-axis motion controller can be applied in robot (SCARA, Delta, 6-joint), electronic semi-conductor equipment (detection device, assembly device, locking device, welding machine), dispensing device, non-standard equipment, textile and garment equipment, entertainment equipment, medical equipment, assembly line, etc.
Motion control of up to 64 axes, 64 EtherCAT digital servo-axis.
ZMC464 is with 3 auxilary pulse-axis (pulse output+encoder input)
There are 24+3 digital inputs, 12+3 digital outputs (2 high speed HWM outputs) and 2DAs on board.
Interfaces: Ethernet, RS232, RS485, USB, CAN, etc.
ZCAN bus can extend to 512/512/256/128 input/output/AD/DA.
Multi-task programming in ZBasic, 22 tasks, 62 files.
Interpolation of linear, circular, spherical, helical etc., together with speed look-ahead, electronic cam, electronic gear, motion superposition, virutal axis, hardware position latch, comparison output.
4 high speed position lath channels, and continuous latch is valid, 1μs measurement precision.
Support all kinds robot structures, such as, Delta, Scara, 5DOF, 6DOF, etc.
Multi-task, multi-axis and multi-robot control
Support hardware comparison output(HW_PSWITCH2), hardware timer and precision output in motion.
Independent continuous interpolation on multi machines
Various encryption methods to protect customers' intellectual properties
Power failure detection and power failure storage
Features

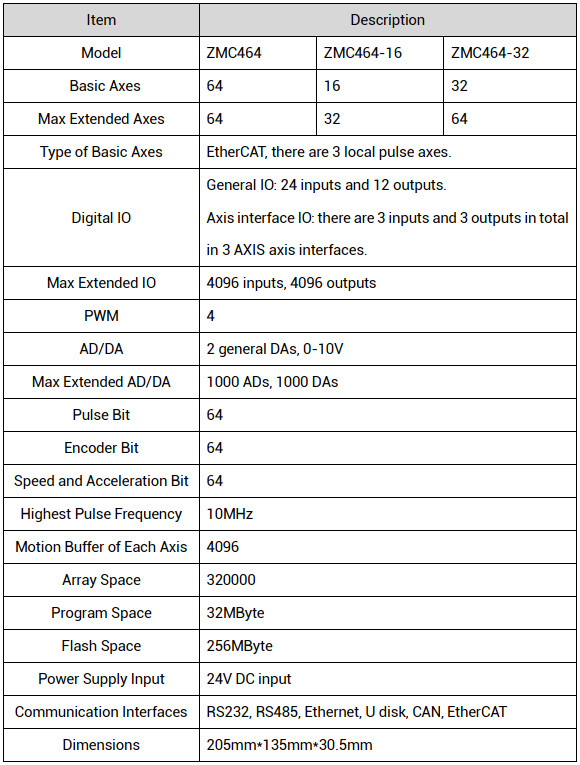

Parameters

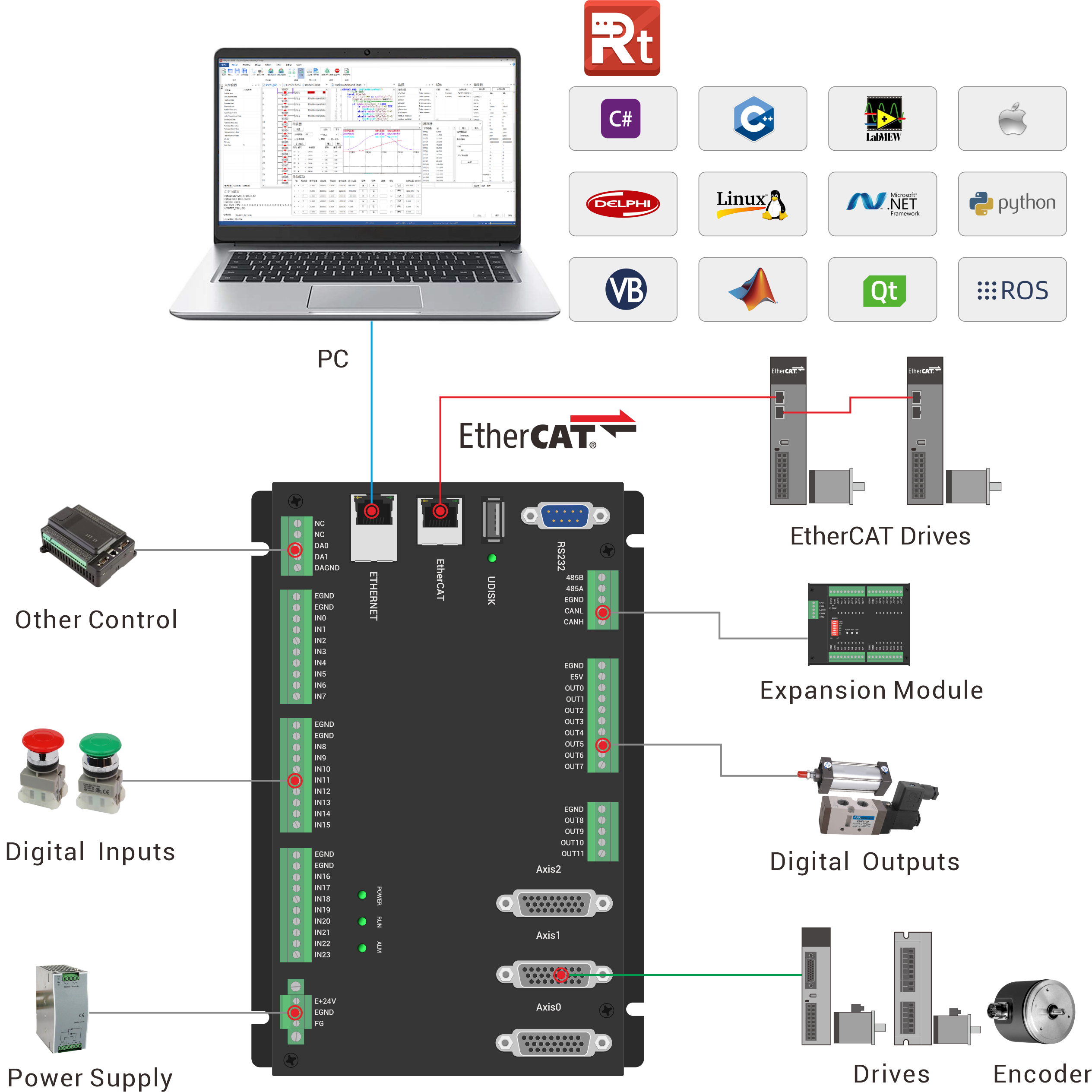

System Architecture
