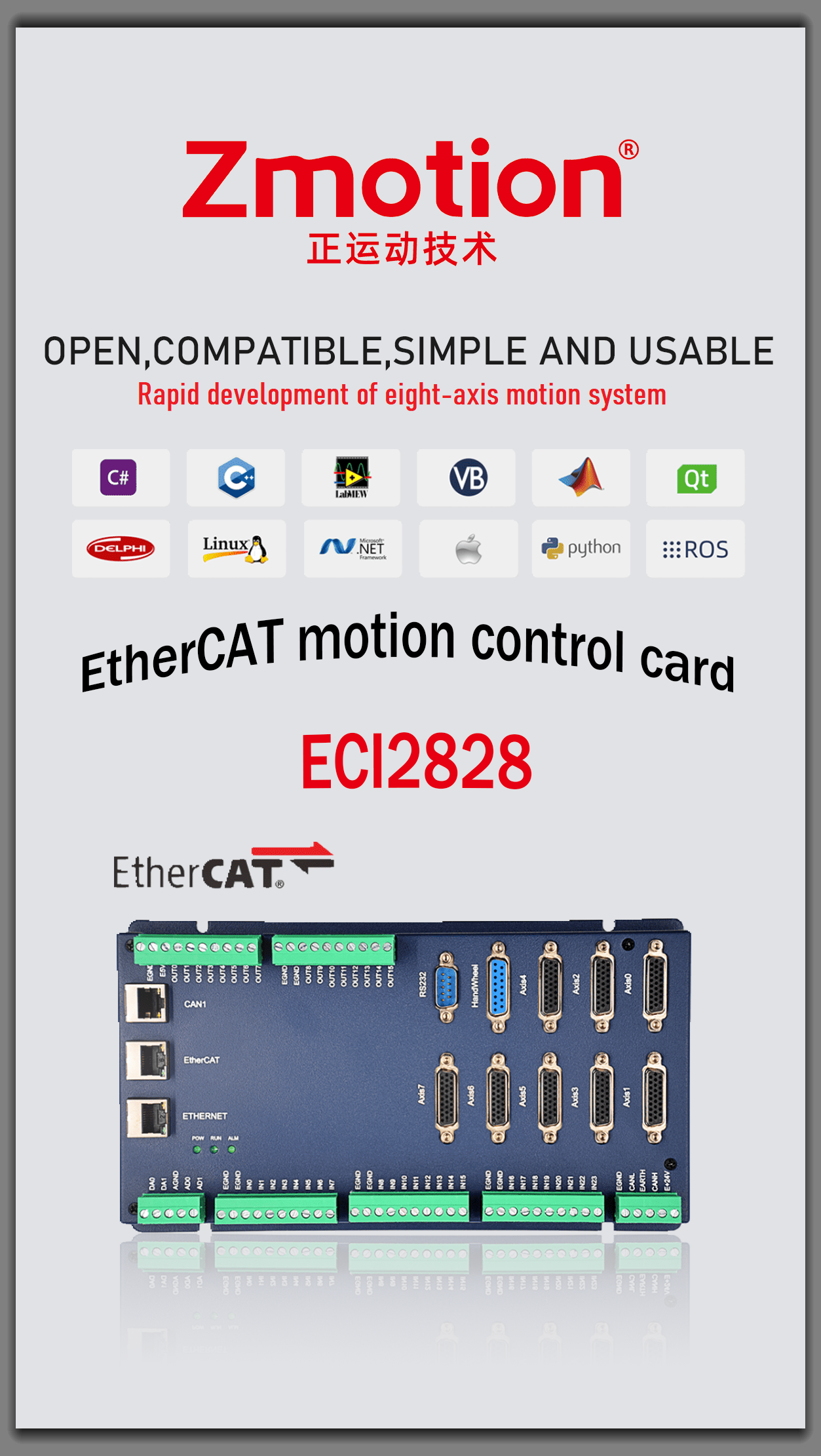

The following are the new features of ECI2828 compared to ECI2816:

1) Added EtherCAT interface, motor axis number increased to 8, 24+16 inputs and 16+16 outputs(Each axis interface has two general inputs and two general outputs,  can be used as servo enable , alarm clear, position reach signal, alarm signal etc.)

2) The output pulse frequency of each axis can reach 10MHz; Can be extended to 512 isolated inputs or outputs via CAN.

3) ECI2828 supports hardware comparison output, accurate output and vision flying shot.

4) ECI2828 supports various PC programming languages:C++, C#, LabVIEW, VB, Delphi, Linux,.Net platform, iMac, Python, Matlab etc.It has unified upper machine API interface, with open, compatible, simple, easy to use and other features.

Product advantages:

1) Replace IPC completely,no more complex configuration.

2) No need of PCI driver installation, connect to PC through Ethernet cable directly.

3) All products call same set of API functions regardless of the number of axes;

4) No PCI adapter and patch board needed making wiring and troubleshooting more easier;

5) Compares to industrial computer ECI series motion control card has better dust resistance.

6) ECI series has 128K space inside to store the code that can be used in a few occasions where the real-time demand is particularly high.

●Controlled by 8-axis EtherCAT, embedded 8-axis interface (pulse output + encoder input).

●Supports Ethernet and RS232 ; The upper machine is using the same API function interface.

●Embedded 24+16 inputs and 16+16 outputs, handwheel interface (AB encoder +10 inputs).

●Embedded AD, DA and PWM interfaces. The axis interface supports 10M pulse transmission and 5M encoder input.

●Can be expanded to 256 inputs, 256 outputs, 128 ADs and 64 DAs through CAN bus.

●Point to point, electronic cam,linear interpolation,circular interpolation and continuous interpolation.
