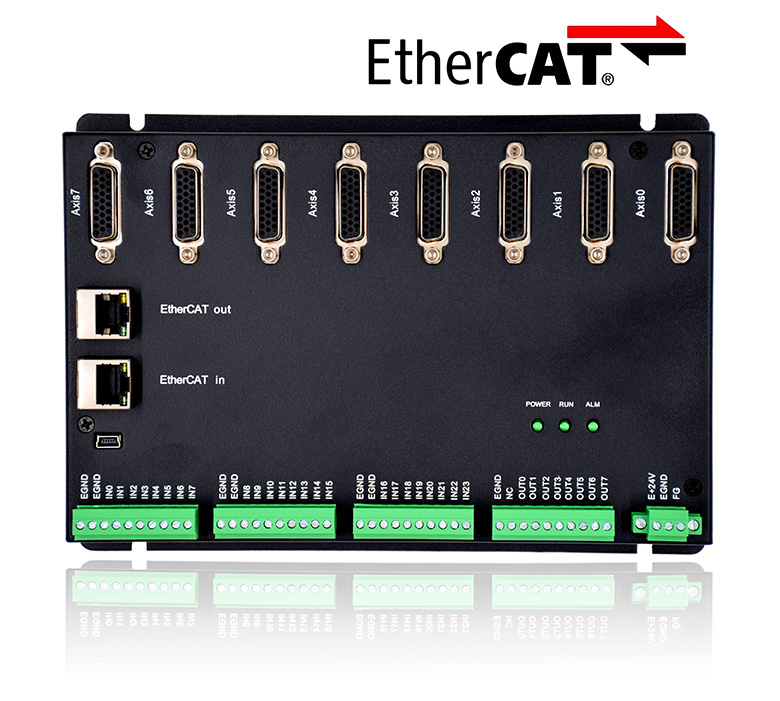

ZMotion Technology | Production Recommendation -- EtherCAT Expansion Module EIO24088

Release time :2022-11-16 18:37 Author:ZMotion Editer Number of hits :19626

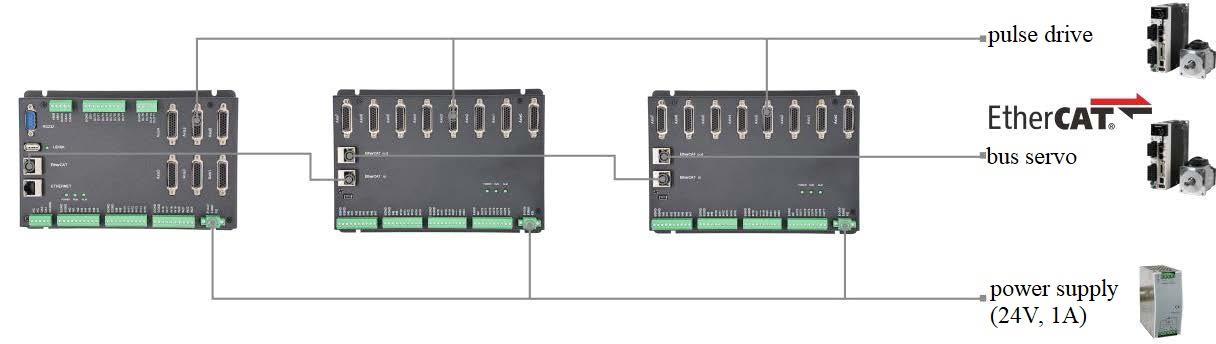

EIO expansion module is used for EtherCAT bus controller, when IO and other resources are not enough, an expansion module is needed. And controller can link with multi expansion modules through bus at the same time, and each expansion module has a unique address, which starts from 0. The resource of expansion module can be accessed by program on controller through IO number, and this number is set through bus instruction NODE_IO.



Product Features:

8 axes EtherCAT axis control expansion module

8 axis-control expansion interfaces (pulse output + encoder input)

There are 24 + 8 digital inputs and 8 + 8 digital outputs

Bus refresh period is 250μs-2ms











ECI24088 is a kind of EtherCAT Bus Expansion Module developed by ZMotion Technology, more details of ECI24088 -- ECI24088 Hardware Manual.
