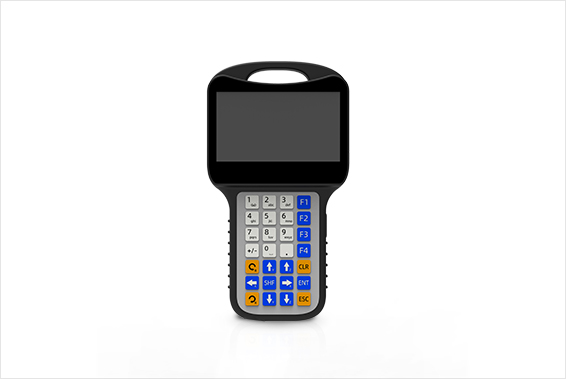

Product name ：ZHD301X
Specification: ZHD301X Teach Pendant
ZHD301X is one touch screen teach pendant that can show interface by network. Please note it must be used together with the controller that supports HMI function.
Teach pendant has the DC24V power supply, and it is with 480*272 resolution true color displayer, also there are 28 keys.
Through communicating with controller scripts, show and operate all kinds of interfaces.
Support drawing: you can enter Chinese
& English characters, line, arc, image.
There are 28 key buttons, key functions can be customized.
Support RJ45 crystal head (for standard
model, it has 2m connecting line), U disk interface.
Support HMI configuration protocol.
It can control all kinds of manipulators.
Support touch screen, key buttons are
used together with touch screen.
Resolution: 480*272
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZHD301X Teach Pendant User Manual V2.0.0 | V2.0.0 | 1.15MB | Download |
Features

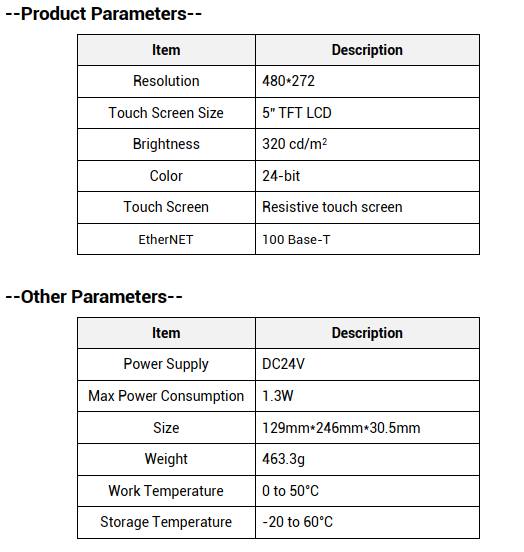

Parameters

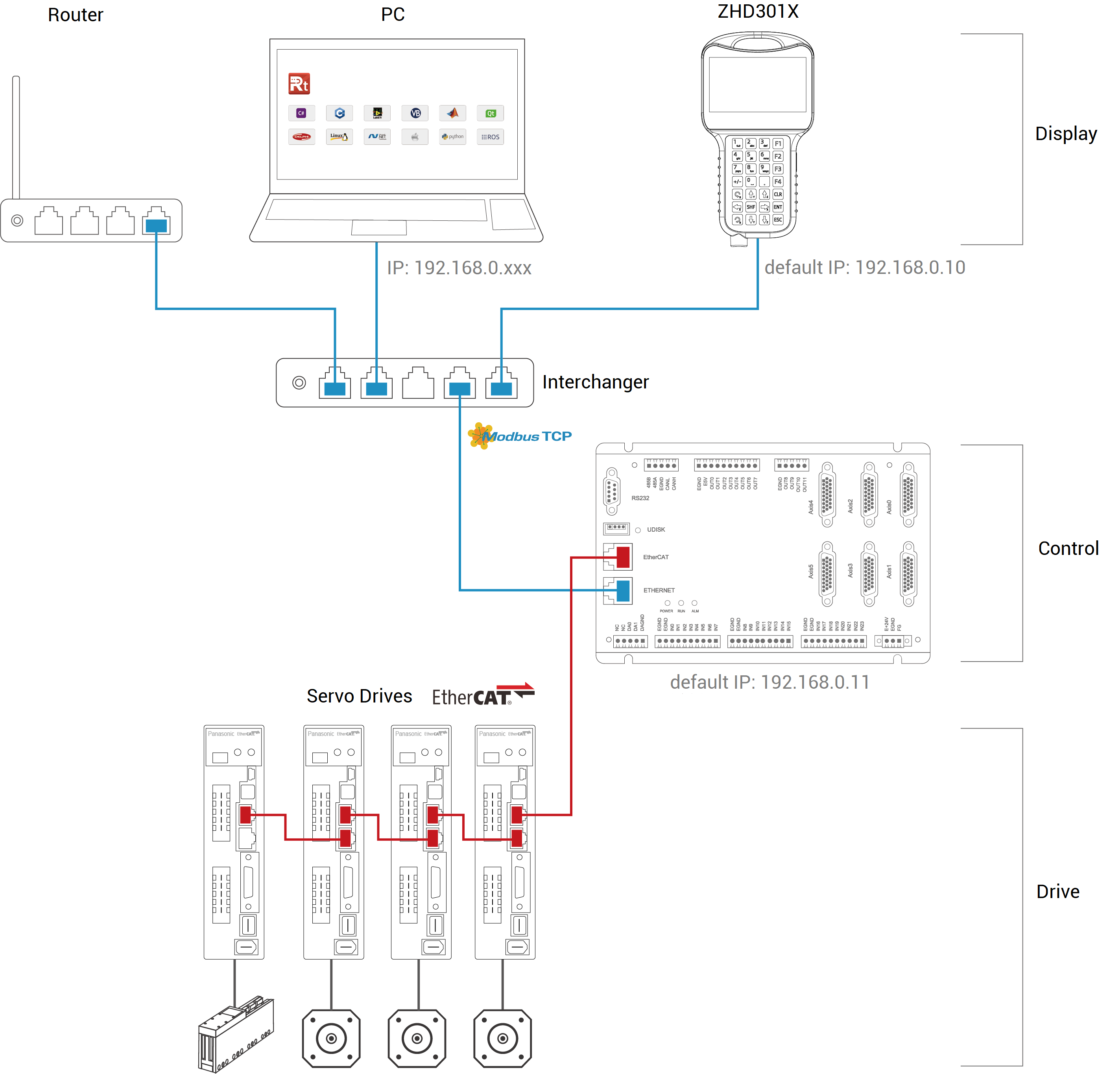

System Architecture
