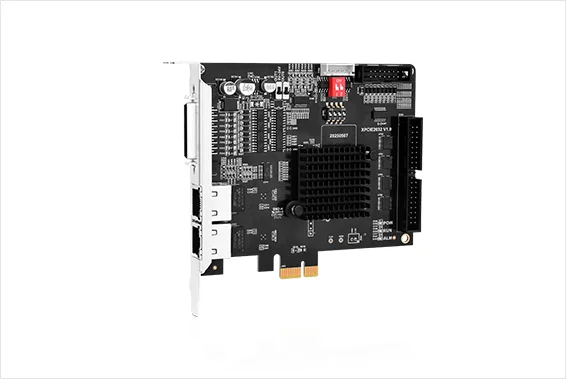

Product name ：XPCIE2032H Motion Control Card
Specification: PCIe EtherCAT Real-Time Motion Control Card
XPCIE2032H motion control card is a kind of EtherCAT and pulse type that is with PCIE interface. 4-254 axes motion control can be achieved for point motion, interpolation, trajectory planning, handwheel control, encoder position detection, IO control, position latch, etc.
Requirement: XPCIE2032H motion control card requires the main frequency is larger than 2GHz, the running memory is larger than 8G, and the hard disk is above 256M.
Motion Control Applications: in high-speed & high-precision occasions, such as, semi-conductor equipment, SMT processing, 3C automation production line, new energy equipment, laser processing, non-standard equipment
XPCIE2032H motion control card is used together with MotionRT7.
It supports “redundancy” function, and one EtherCAT bus slot can be up 32 axes.
It can be up to 125us super high-speed control period (please prepare enough performance and real-time).
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Motion control functions: point motion, linear interpolation, circular interpolation, continuous interpolation, simple manipulator commands.
Special functions: pulse closed-loop, pitch compensation, single-ended encoder, high-speed latch, single-ended pulse, PWM, HW, etc.

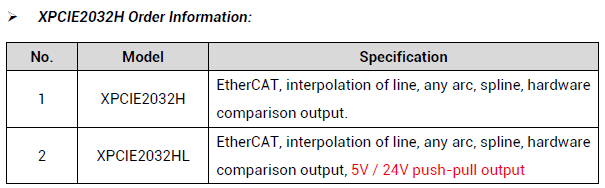

Special mode XPCIE2032HL supports push-pull outputs, you can select 24V / 5V.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCIE2032H Motion Control Card User Manual V2.0.0 | V2.0.0 | 3.28MB | Download |
Features

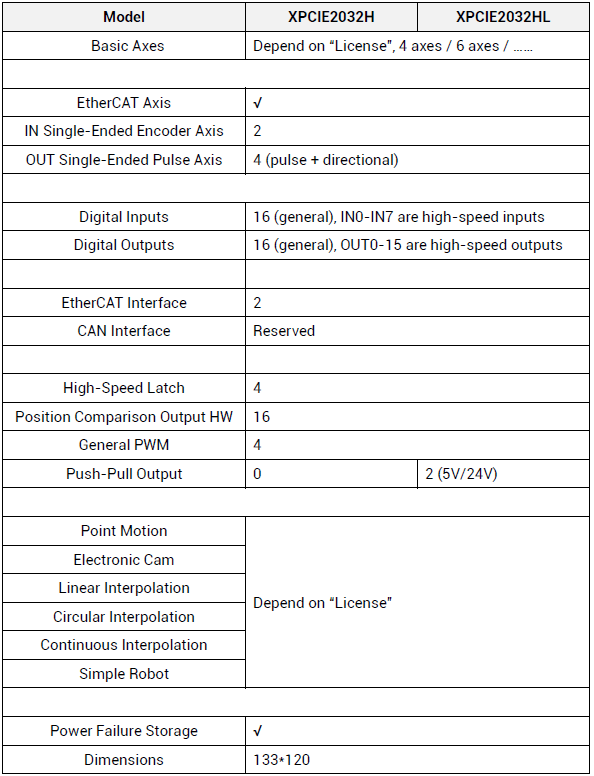

Parameters

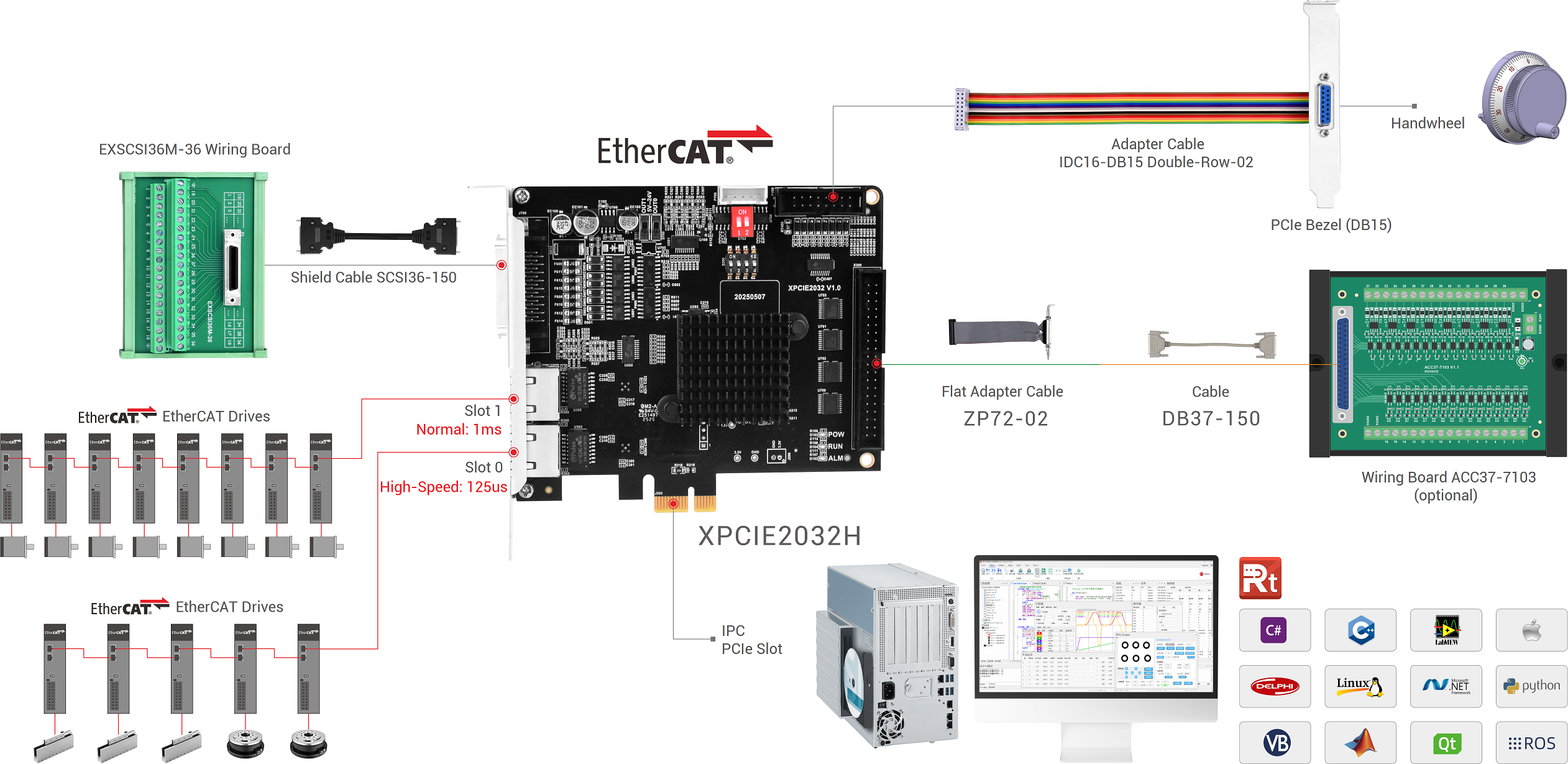

System Architecture
