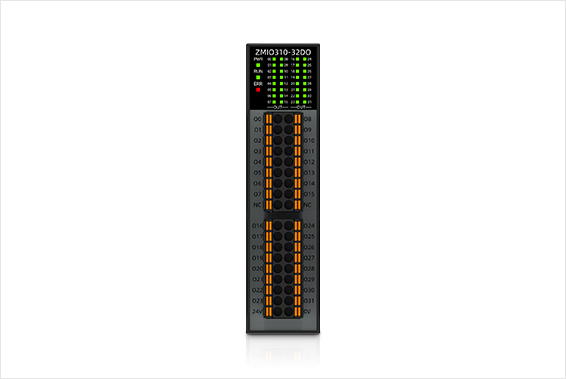

Product name ：ZMIO310-32DO CAN Output Expansion Sub-Module
Specification: Vertical Sub-Module to Expand 32 Digital Outputs by CAN Bus
ZMIO310-32DO is a 32 digital outputs expansion module that is used when IO resources are not enough.
It is matched with ZMIO310-CAN communication module to expand 32 digital outputs. Several modules can be used at the same time.
Also, it can be connected to ZMIO310-32DI (CAN protocol) 32 digital input modules.
The digital output module has signal indication led, you can check IO states conveniently.
32 digital outputs, the type is NPN.
convenient & quick wiring for you.
Parameter / Specification | ZMIIO310-32DO |
Power Voltage | 24VDC |
Output Type | Digital output |
Output Extended | 32 |
Output Method | NPN type, it is low electric level when there is output |
Output Overcurrent Protection | Max is 300mA, and the max tripping current is 600mA. |
The max leakage current when OFF | 25μA |
Respond time when ON | 12μA |
Respond time when OFF | 80μA |
Internal power | 0.3W |
Self-Power | 1.3W |
Isolation | Coupler isolation |
Input Frequency | <8kHz |
Action showing (output) | When the output is ON, output indication led will be ON. |
Supported Service | Update the firmware |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 (32) Vertical Bus Expansion Module User Manual V2.0.0 | V2.0.0 | 3.82MB | Download |
Features
Parameters

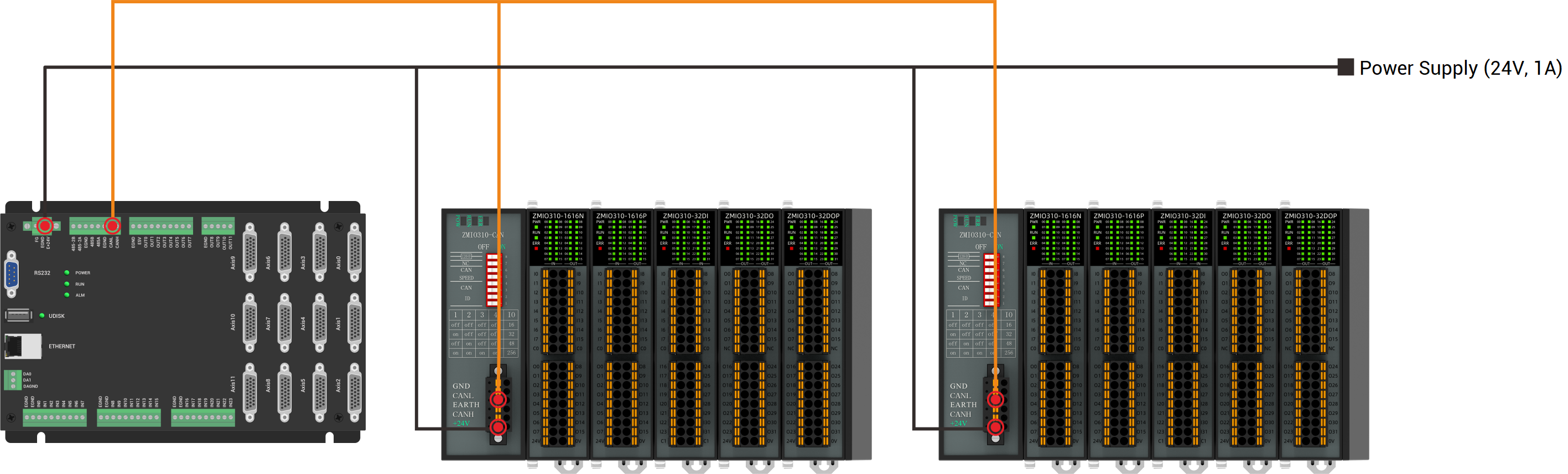

System Architecture
