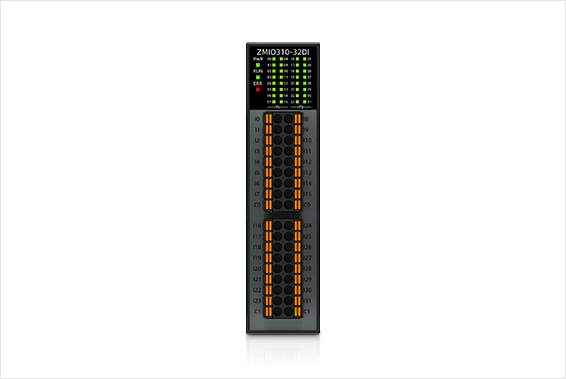

Product name ：ZMIO310-32DI CAN Input Expansion Sub-Module
Specification: Vertical Sub-Module to Expand 32 Digital Inputs by CAN Bus
ZMIO310-32DI is a 32 digital inputs expansion module that is used when IO resources are not enough.
It is matched with ZMIO310-CAN communication module to expand 32 digital inputs. Several modules can be used at the same time.
Also, it can be connected to ZMIO310-32DO / ZMIO310-32DOP (CAN protocol) 32 digital output modules.
The digital input module has signal indication led, you can check IO states conveniently.
32 digital inputs, the type can be NPN / PNP.
convenient & quick wiring for you.
Parameter / Specification | ZMIO310-32DI |
Power Voltage | 24VDC |
Input Type | Digital input |
Input Extended | 32 |
IO Power Supply Voltage Input Method | NPN / PNP NPN (IO public end connects to +24V) PNP (IO public end connects to EGND) |
Input Current (Typical) | NPN (-4.8mA), PNP (+4.8mA) |
Input Impendence | 4.7KΩ |
Voltage when ON | For PNP type, >7.2V. For NPN type,<14.5V |
Voltage when OFF | For PNP type,<6.8v. for="" npn="">14.7V |
Internal power | 0.3W |
Self-Power | 1.9W |
Isolation | Coupler isolation |
Input Frequency | <5kHz |
Action showing (output) | When the output is ON, output indication led will be ON. |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 (32) Vertical Bus Expansion Module User Manual V2.0.0 | V2.0.0 | 3.82MB | Download |
Features
Parameters

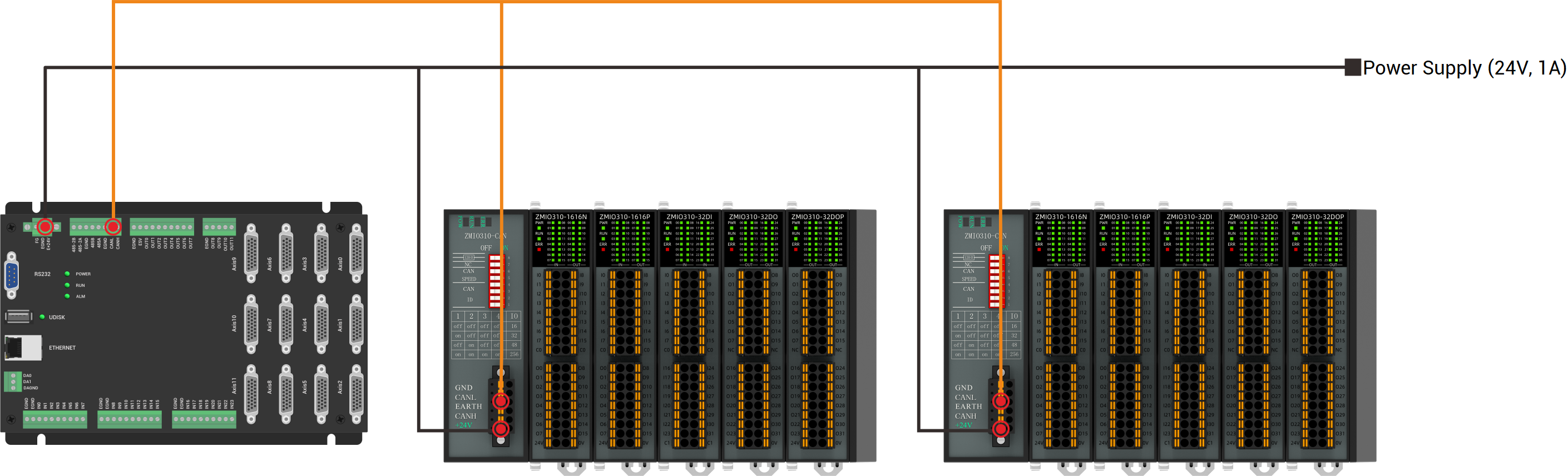

System Architecture
