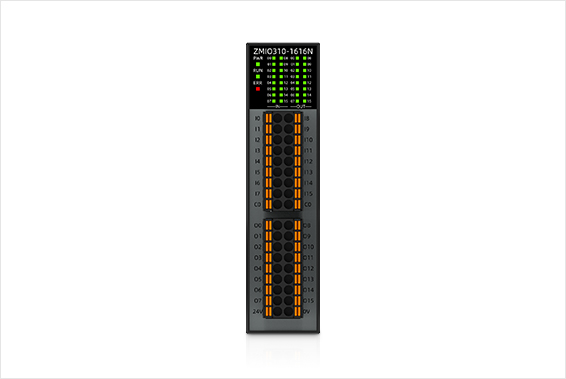

Product name ：ZMIO310-1616N EtherCAT Expansion Sub-Module
Specification: Vertical Sub-Module to Expand 16 INs & 16 OUTs by EtherCAT Bus
ZMIO310-1616N is an expansion module that can expand 16 digital inputs and 16 digital outputs when IO resources are not enough.

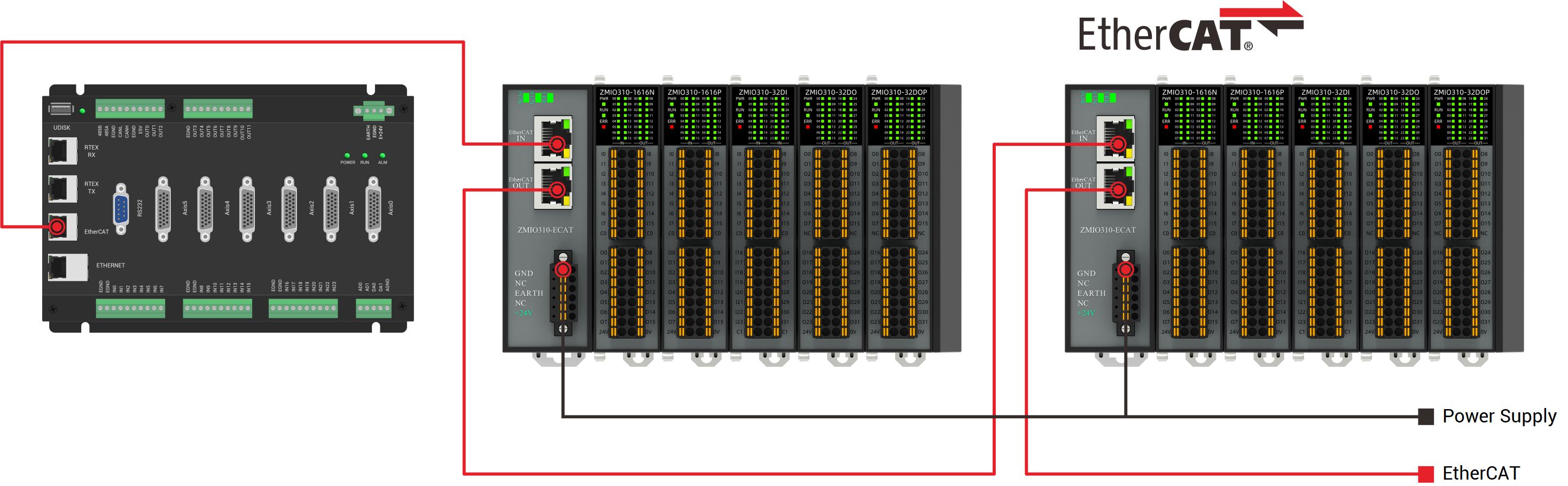

It is matched with ZMIO310-ECAT communication module, several modules (EtherCAT protocol) can be used at the same time.
The module (digital inputs & digital outputs) has signal indication led, you can check IO states conveniently.
16 digital inputs + 16 digital outputs, the input type can be NPN / PNP, the output type is NPN type.
convenient & quick wiring for you.
Parameter / Specification | ZMIO310-1616N |
Power Voltage | 24V DC |
IN Extended | 16 |
IN Type | NPN / PNP |
OUT Extended | 16 |
OUT Type | NPN |
Dimensions (mm) | 24*95*93 |
Ø Digital IN (NPN & PNP)
Item | Parameter / Specification |
Power Voltage | 24VDC |
Input Type | Digital input |
Input Extended | 16 |
IO Power Supply Voltage Input Method | NPN / PNP NPN (IO public end connects to +24V) PNP (IO public end connects to EGND) |
Input Current (Typical) | NPN (-4.8mA), PNP (+4.8mA) |
Input Impendence | 4.7KΩ |
Voltage when ON | For PNP type, >7.2V. For NPN type,<14.5V |
Voltage when OFF | For PNP type,<6.8v. for="" npn="">14.7V |
Internal power | 0.3W |
Self-Power | 1.9W |
Isolation | Coupler isolation |
Input Frequency | <5kHz |
Action showing (output) | When the output is ON, output indication led will be ON. |
Ø Digital OUT (NPN)
Item | Parameter / Specification |
Power Voltage | 24VDC |
Output Type | Digital output |
Output Extended | 16 |
Output Method | NPN type, it is low electric level when there is output |
Output Overcurrent Protection | Max is 300mA, and the max tripping current is 600mA. |
The max leakage current when OFF | 25μA |
Respond time when ON | 12μA |
Respond time when OFF | 80μA |
Internal power | 0.3W |
Self-Power | 1.3W |
Isolation | Coupler isolation |
Input Frequency | <8kHz |
Action showing (output) | When the output is ON, output indication led will be ON. |
Supported Service | Update the firmware |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 (32) Vertical Bus Expansion Module User Manual V2.0.0 | V2.0.0 | 3.82MB | Download |
