Product name ：PCIE464M
Specification: 64-Axis EtherCAT Motion Control Card
PCIE464M is a kind of EtherCAT + Pulse motion control card that is with PCIE interface, then it can control several stepper motors or digital servo motors.
PCIE464M motion control card can be applied in multi-axis point to point, interpolation motion, trajectory planning, handwheel control, encoder position measurement, IO control, position latch, etc.
Support encoder position measurement, which can be configured as handwheel input mode.
Support HW hardware comparison output, high-speed latch, PWM, and other special functions.
Max output pulse frequency of pulse axis is 500kHz.
The max output current of OUT can reach 300mA, which can drive some solenoid valves.
Support many motion control functions, such as, point to point, electronic cam, linear interpolation, circular interpolation, continuous interpolation, Scara robot, etc.
Support pulse closed loop, and pitch compensation.
Model | PCIE464M-AX64 | PCIE464M-AX16 | PCIE464M-AX32 |
Basic Axes | 64 Axes: l 8 single-ended pulse axes l 2 single-ended 24V high-speed encoders l 2 single-ended 24V low-speed encoders | 16 Axes: others are same as PCIE464M-AX64 | 32 Axes: others are same as PCIE464M-AX64 |
Total Axes | 64-Axis (basic axis + virtual axis) | 64 | 64 |
EtherCAT Bus Axis | P | ||
IN Single-Ended Encoder Axis | 4 | ||
OUT Single-Ended Pulse Axis | 8 (pulse + directional) | ||
Digital IN | 16 (general), IN0-7 are high-speed inputs | ||
Digital OUT | 16 (general), OUT0-15 are high-speed outputs | ||
Expanded Digital IN | ≤4096 | ||
Expanded Digital OUT | ≤4096 | ||
EtherCAT | 1 | ||
High-Speed Latch | 4, IN0-3 | ||
Hardware Comparison Output HW | 12, OUT0-11 | ||
General PWM | 4, OUT0-3 | ||
Point to Point | P | ||
Electronic Cam | |||
Linear Interpolation | |||
Circular Interpolation | |||
Continuous Interpolation | |||
Scara Robotic Arm | |||
Program Space | 1920kbyte | ||
Power Down Storage | P | ||
Dimension (mm) | 105*120 | ||
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| PCIE464M Motion Control Card User Manual V2.0.2 | V2.0.2 | 2.53MB | Download |
Features
Parameters

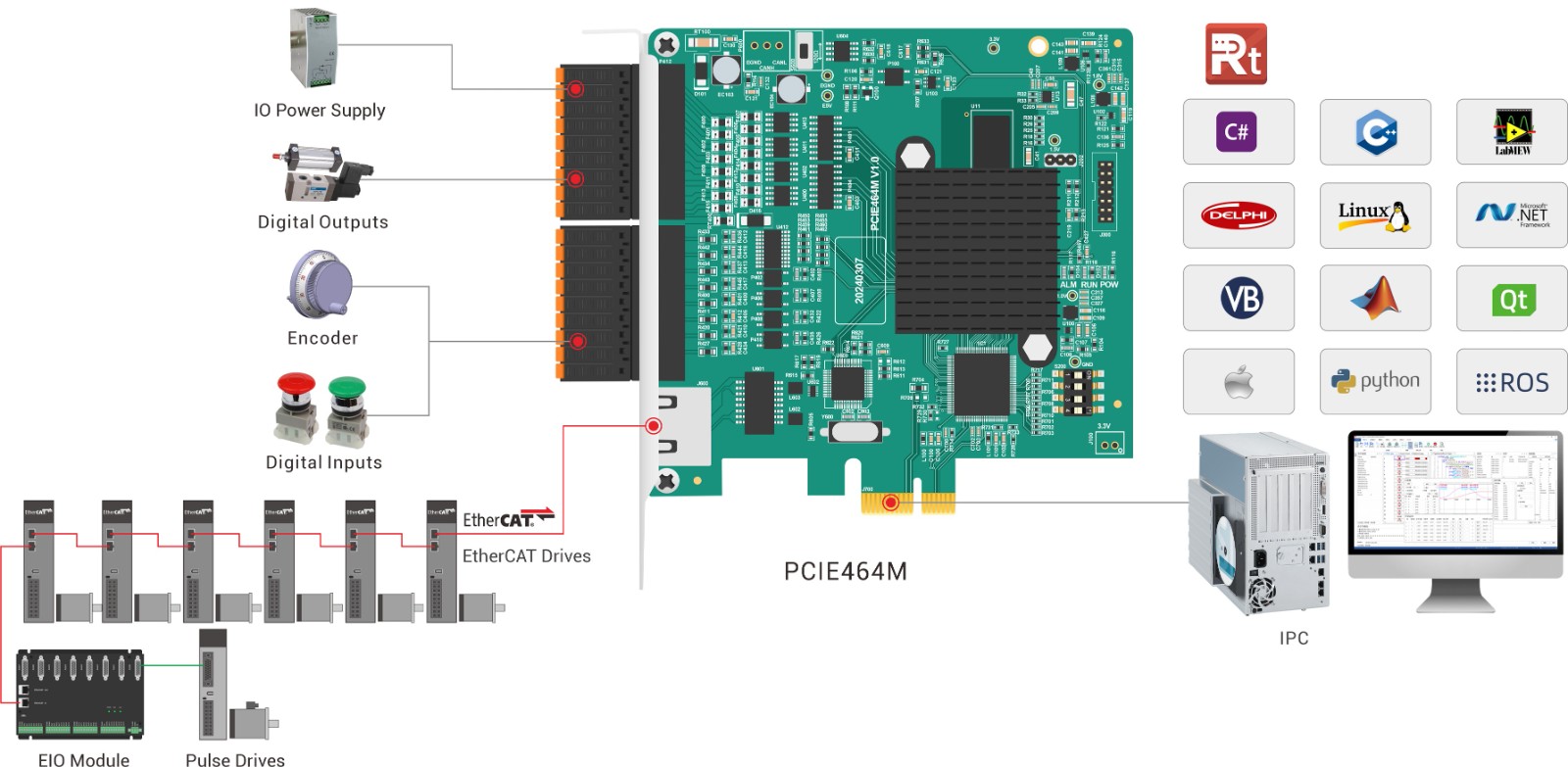

System Architecture
