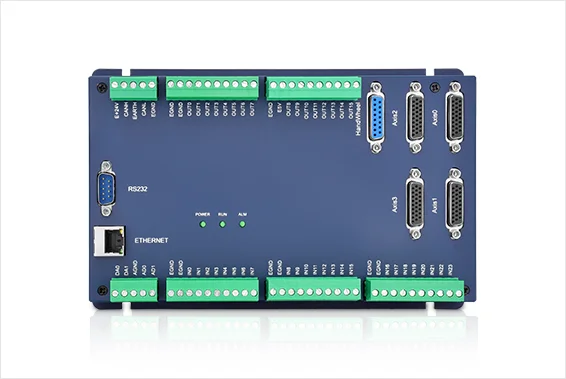

Product name ：ECI2418B
Specification: 4-Axis Network Motion Control Card
ECI2418B economical multi-axis motion control card is a kind of network motion control card that belongs to pulse type and modular type. Motion control can be extended to 12 axes to achieve some simple trajectory control requirements, such as, linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronization follow, virtual axes, robotic arm instruction, etc., and real-time motion control can be achieved through optimized network communication protocol.
Motion Control Applicatios: electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, assembly line, etc.
Support motion control of 4 differential pulse axes, which can be up to 12 axes by expansion modules.
Pulse output mode: pulse / direction or dual pulses.
AXIS interface supports encoder position measurement, which can be configured as handwheel input mode.
Specialized handwheel input interface.
Maximum pulse output frequency of each axis: 10MHZ.
256 isolation inputs and 256 isolation outputs can be extended at most through CAN bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 500mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, Ethernet, CAN.
Support linear interpolation, any circular interpolation, helical interpolation of 12 axes at most.
Support point to point, electronic cam, linear interpolation, circular interpolation, continuous interpolation, robotic arm instructions.
Multi-file and multi-task programming in ZBasic (RTBasic).
A variety of program encryption methods to protect the intellectual property rights of customers.
Features

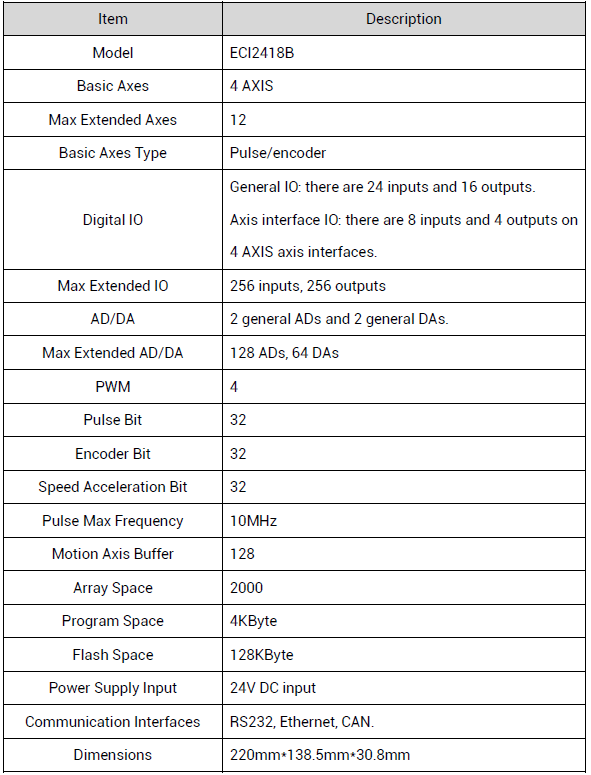

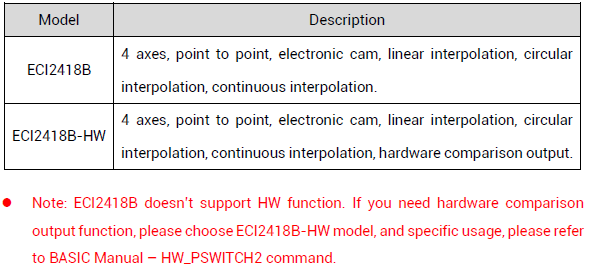

Parameters

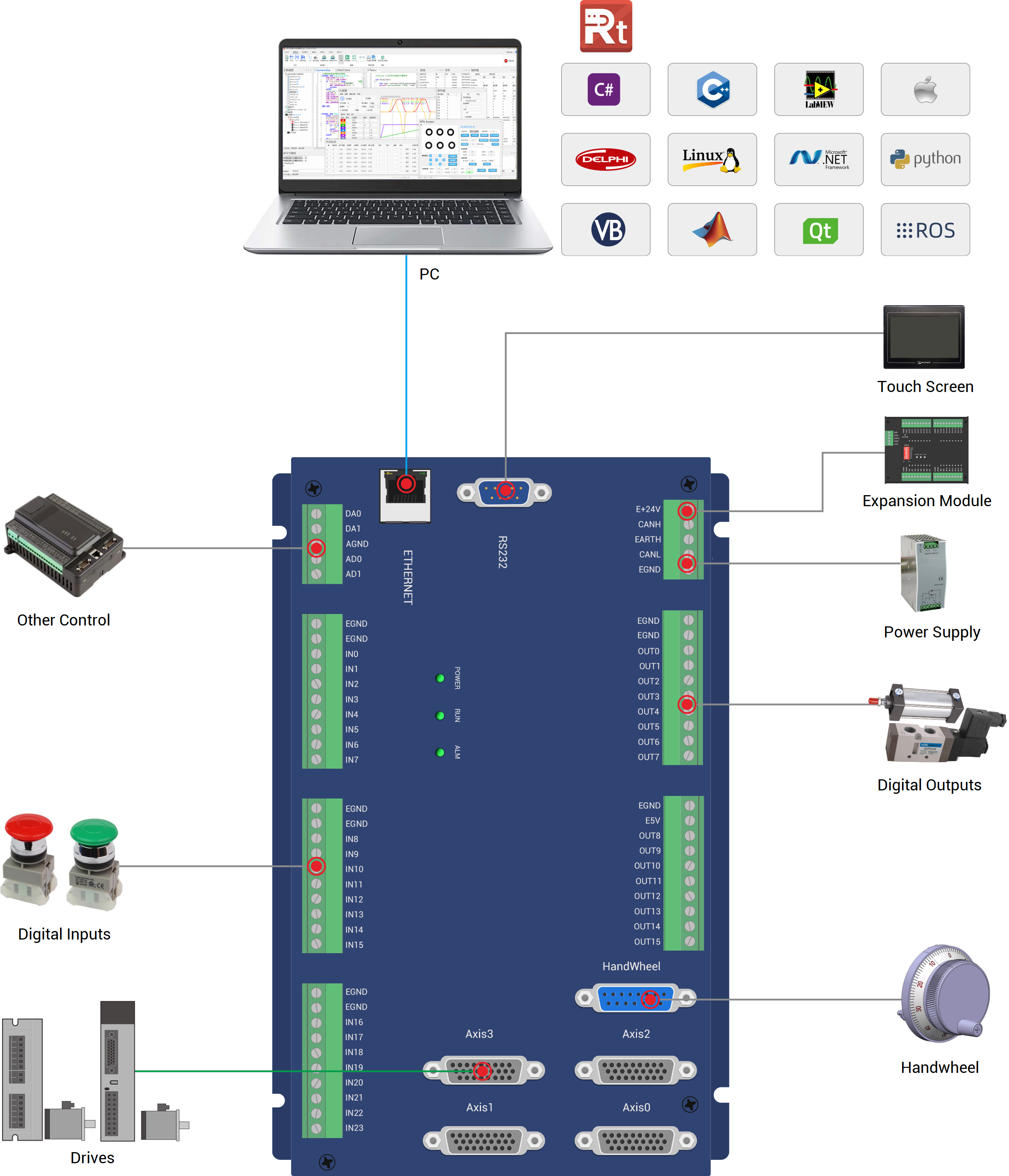

System Architecture
