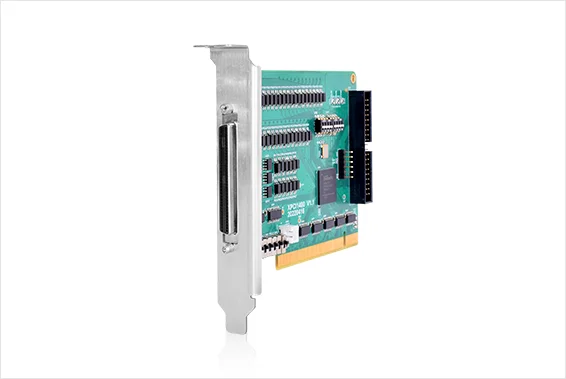

Product name ：XPCI1400 Motion Control Card
Specification: 4 Axes Motion Control Card
XPCI motion control card is a new type of PCI bus motion control card developed by Zmotion. It can control multiple stepper motors or digital servo motors.
It can be applied for multi-axis point-to-point motion, interpolation motion, trajectory planning, IO control, etc.
Up to 4 axes of motion control.
Pulse axis output mode: pulse/direction
Mechanical control signal input: +/-EL, ORG, +/-SD, photoelectric isolation.
The maximum output pulse frequency of the pulse axis is 5MHz.
The maximum output current can reach 300mA, which can directly drive some solenoid valves.
Support linear interpolation, circular interpolation in any space, and helical interpolation.
Support electronic cam, electronic gear, synchronizaion follow, virtual axis and other functions.
Support pulse closed loop, pitch compensation and other functions.
Support ZBasic multi-file multi-task programming.
A variety of program encryption means to protect the intellectual property rights of customers.
The card slot interface is designed according to the PCI V3.0 standard 32-bit card, and is backward compatible with the PCI V2.3 standard.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCI1400 Motion Control Card User Manual V1.0 | V1.0 | 2.44MB | Download |
