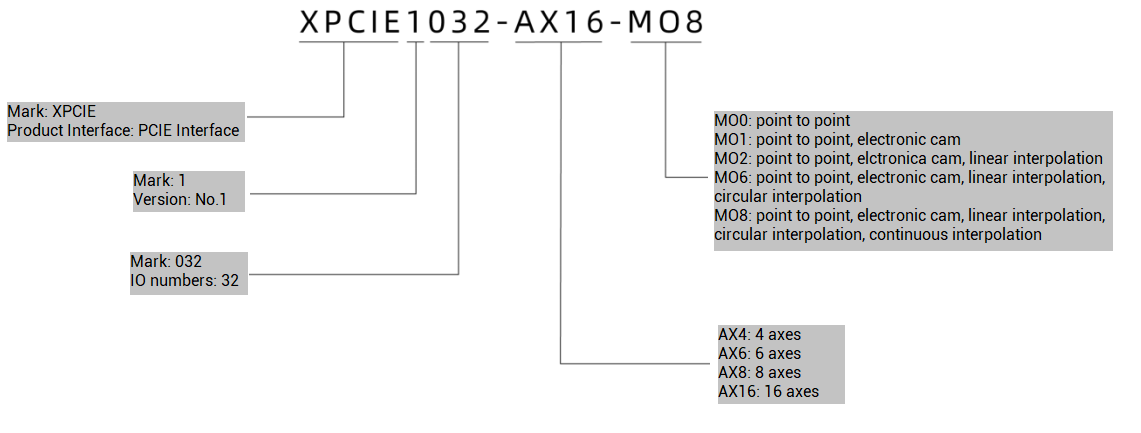

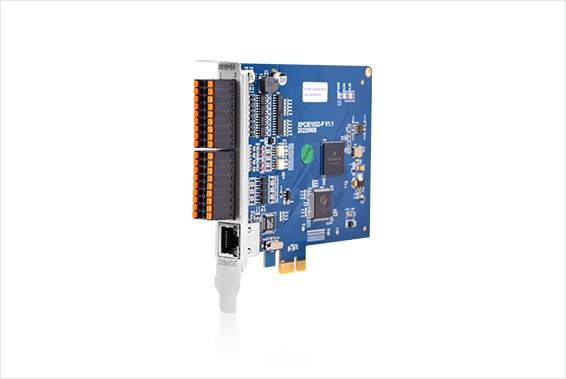

Product name ：XPCIE1032 Motion Control Card
Specification: 16-axis EtherCAT Bus Motion Control Card
XPCIE1032 motion control card supports EtherCAT bus, and it can achieve 16 axes motion control at most, multiple step motors or digital servo motors can be controlled. Also it supports EtherCAT bus and general pulse control.
There are many functions it can realize, such as, multi-axis point to point, interpolation, trajectory planning, handwheel control, encoder position detection, IO control, position latch, etc.
Axis motion control up to 16.
Pulse-axis output mode: single-ended direction / pulse.
Support encdoer position measurement, which can be configured as handwheel input mode.
The max output pulse frequency of pulse-axis is 500KHz.
512 isolation inputs or outputs can be expanded through EtherCAT bus.
The max output current can reach 300mA, which can drive some solenoid valve.
Support linear interpolation, any space circular interpolation, helical interpolation, continuous interpolation.
Electronic cam, electronic gear, position latch, synchronization follow, virtual-axis, etc.
Include pulse closed-loop and pitch compensation.
Support multi-file and multi-task program in ZBasic.
There are many encryption procedures to protect customers' intellectual property.
| Name | Version No | Format | Size | Download |
|---|
Features

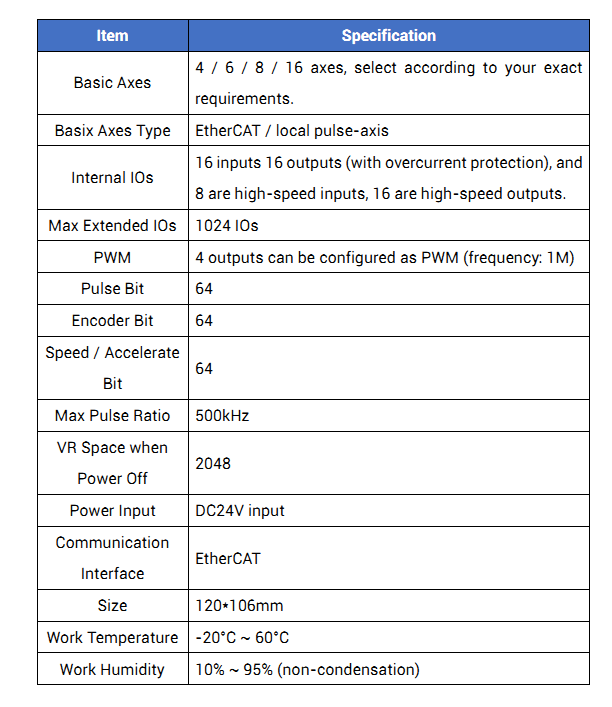

Parameters

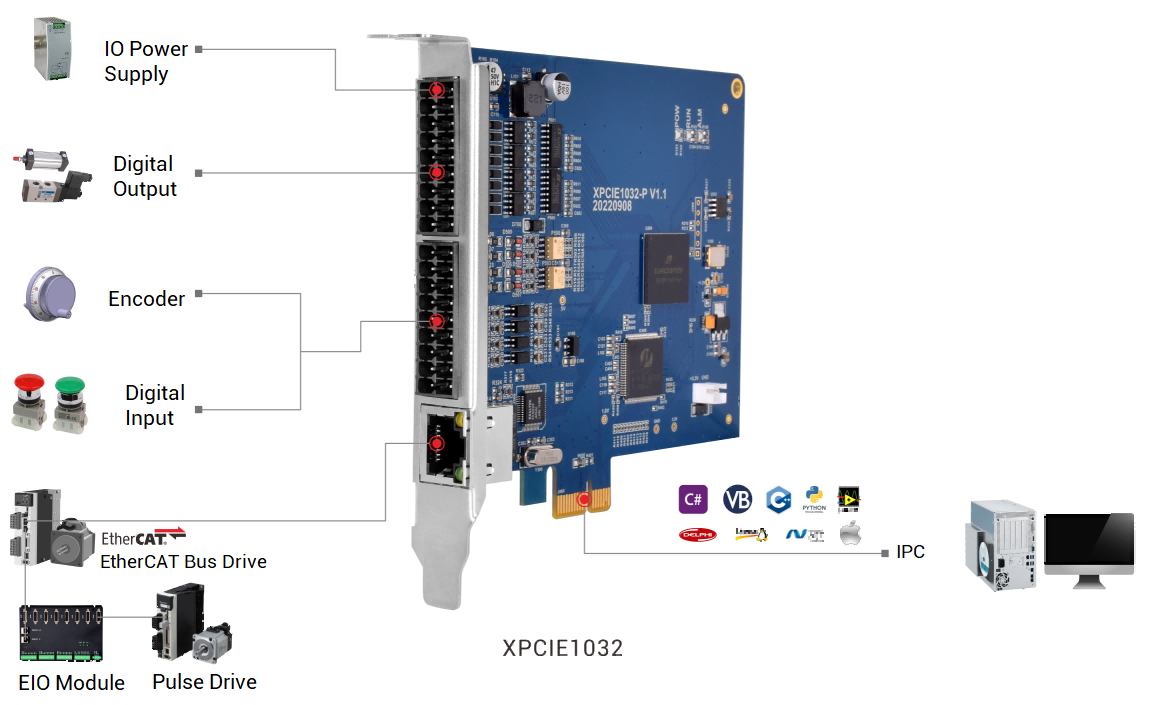

System Architecture
Download
