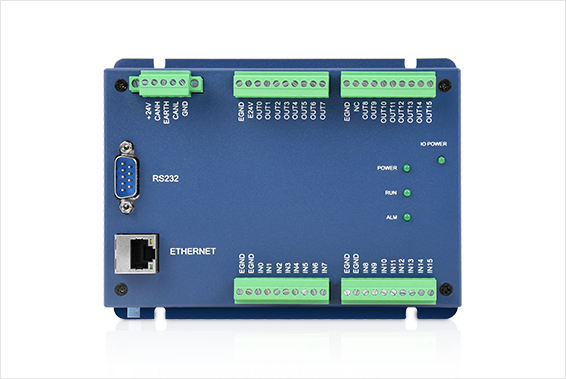

Product name ：ECI0032
Specification: 16 INs & 16 OUTs Network IO Control Card
ECI0032 is a kind of network IO control card developed by Zmotion Technology. Real-time IO control can be achieved through optimized network communication protocol.
ECI0032 network IO control card supports Ethernet and RS232 communication interface to connect to computer. Every expansion module can be connected through CAN bus to expand inputs and outputs.
272 isolated inputs and 272 isolated outputs can be extended through CAN bus.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, CAN, Ethernet.
Support Multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ECI0032 IO Control Card User Manual V1.6.0 | V1.6.0 | 2.07MB | Download |
Features

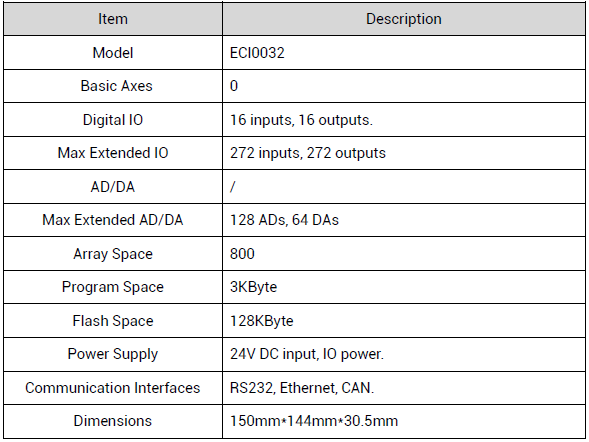

Parameters
