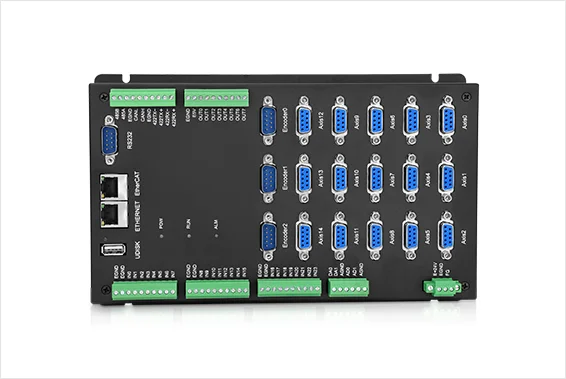

Product name ：ZMC316BE
Specifications: 16-Axis EtherCAT Motion Controller
ZMC316BE EtherCAT motion controller supports linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronous follow, and virtual-axis setting functions (up to 22 axes). And real-time motion control can be achieved through optimized network.
Motion control of up to 22 axes.
Pulse output mode: pulse / direction or dual pulses.
Maximum pulse frequency output of each axis: 10MHZ.
4096 isolated inputs and 4096 isolated outputs can be extended at most through CAN bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: EtherCAT, RS232, RS485, RS422, U Disk, Ethernet.
Support linear interpolation, any circular interpolation, helical interpolation and spline interpolation of 22 axes at most.
Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis, etc.
Support pulse closed loop, pitch compensation and other functions.
Multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Power failure detection and power failure storage.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMC316BE Motion Controller User Manual V1.6.0 | V1.6.0 | 2.92MB | Download |
Features
Parameters

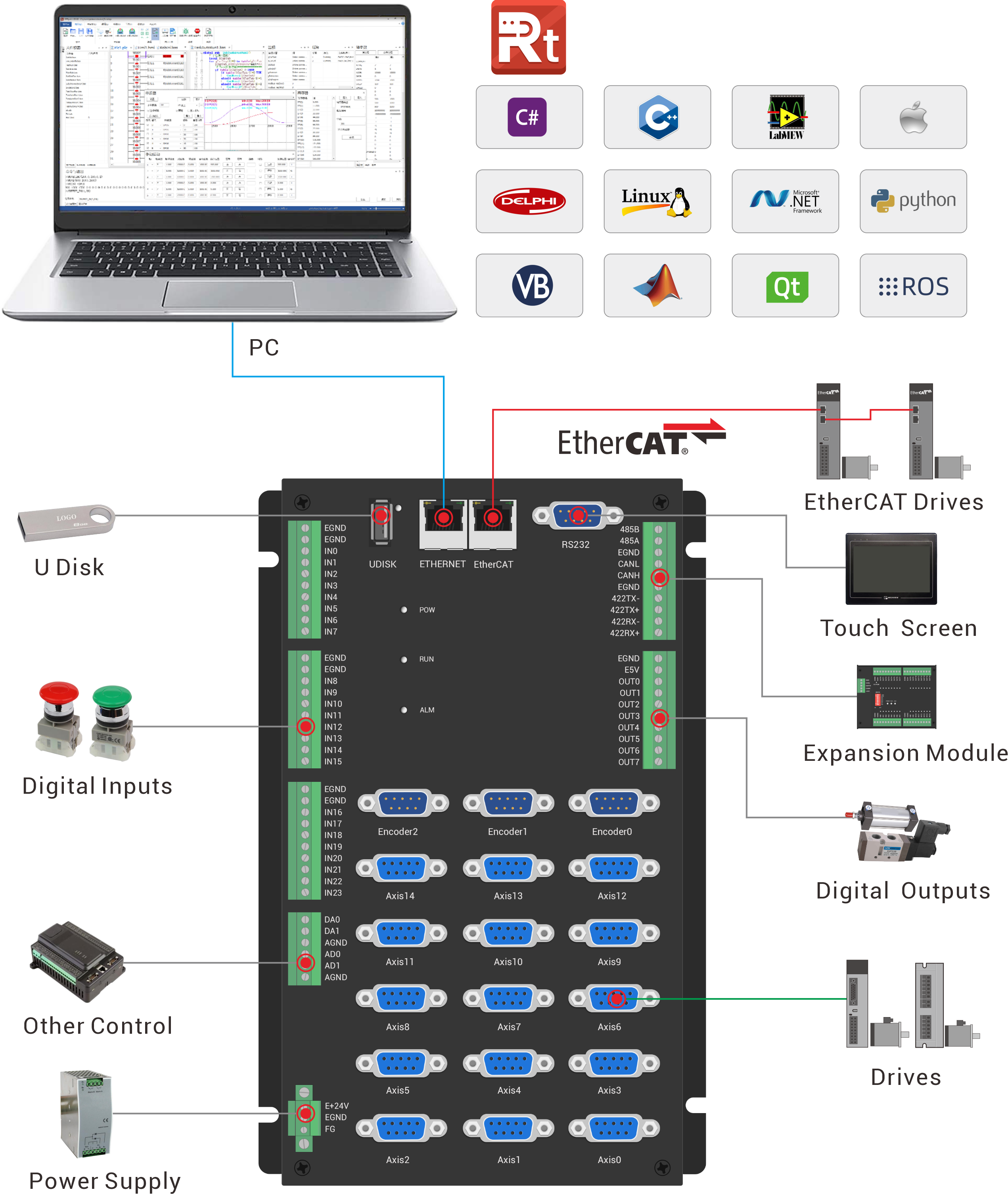

System Architecture
