Product name ：ZMC106S(stop production)

Specification: 6 axes pulse motion controller

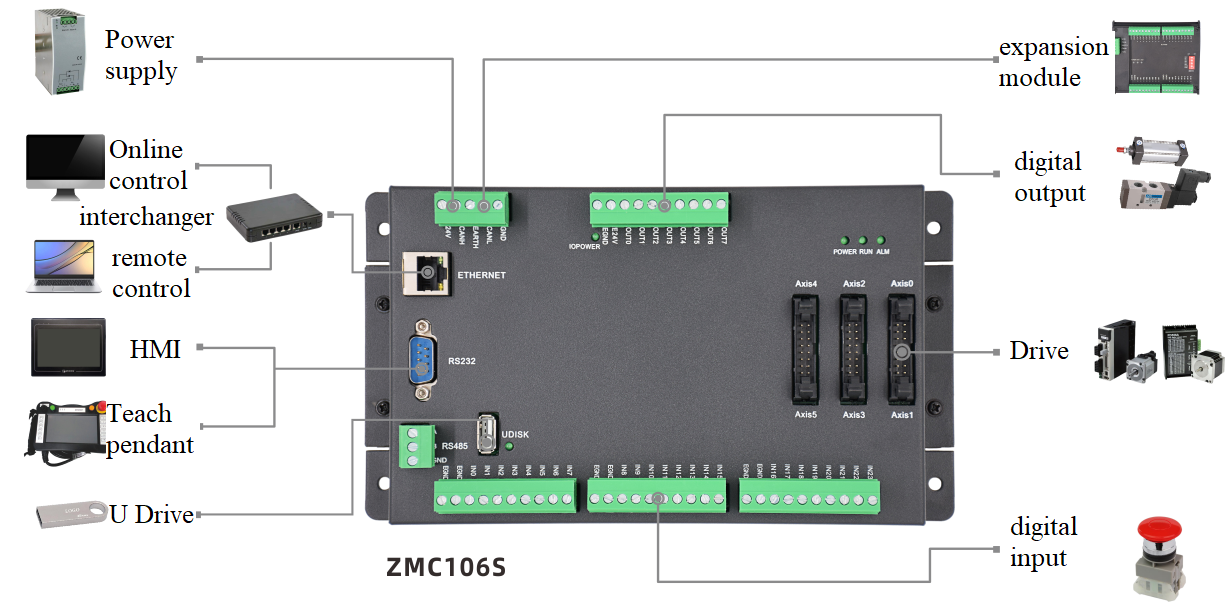

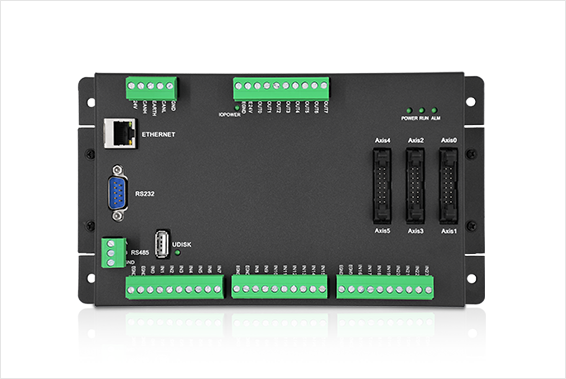

ZMC106S is developed by Zmotion Technology, a kind of pulse motion controller. It supports 6 basic axes, which can be extended up to 12 axes. It can do linear interpolation, random arc interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronous follow, virtual-axis settings, etc.

  • Motion Control 6-12 axes.
    Pulse output mode: direction / pulse or double axes.
    Encoder position measurement is supported and can be configured as hand wheel input mode.
    Maximum pulse frequency output of each axis: 8MHz.
    Maximum inputs or outputs can reach 512 through CAN.
    The positive or negative limit signal / origin signal of axis can be configured to any inputs.
    The output current can reach 300mA, which can directly drive some kinds of solenoid valves.
    Interfaces: USB, RS485, RS232, Ethernet
    Linear interpolation of up to 12 axes, interpolation of random, spherical and helical.
    Electronic cam, electronic gear, position latch, synchronous follow and virtual axis etc.
    Independent continunous interpolation with multi-machine
    Multi-file and multi-task programming, and supports PC procedure and inner procedure of controller work at the same time
    A variety of program encryption methods to protect the intellectual property rights of customers.
    Support multi robotic arm structures.

  • Parameter/Specification

    ZMC104S

    ZMC106S

    Basic Axes

    4

    6

    Max extended Axes

    12

    12

    Basic Axes Type

    the first two axes support pulse axis and encoder, other axes support pulse axes

    Inner IOs

    24 inputs and 8 outputs (with overcurrent protection)

    Max extended IOs

    512 inputs 512 outputs

    Max extended AD/DA

    256 ADs，128 DAs

    Pulse resolution

    32

    Encoder resolution

    32

    Speed resolution

    32

    Axis Motion Buffer

    128

    Array Space

    40000

    Procedure Space

    460KByte

    Flash Space

    128MByte

    Power input

    24 DC input (power is within 10W, no need of fan cooling), IO Power Supply: 24V DC

    Communication interface

    RS232, RS485, Ethernet, USB

    Size

    226*127
