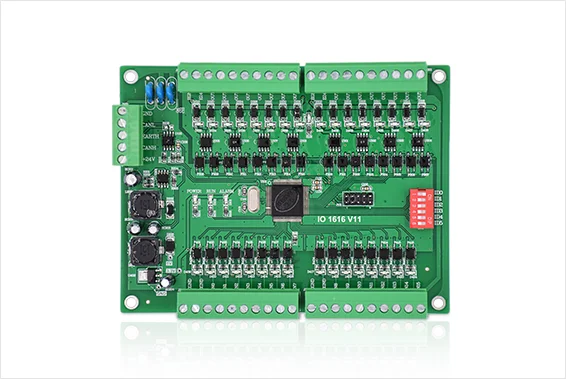

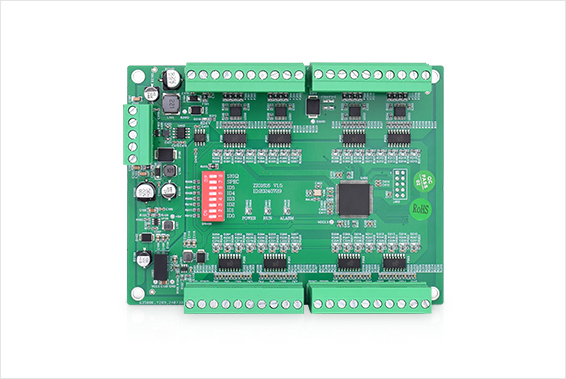

Product name ：ZIO1616 (16 IN & 16 OUT)
Specification: 16 IN & 16 OUT CAN Expansion Module
ZIO1616 is an expansion board that expands 16 digital inputs and 16 digital outputs by CAN protocol. When your controller IO resources can't meet the requirements, the ZIO1616 can be used.
In addition, for ZIO CAN modules, no need to do mapping. There is one DIP switch, just to dial codes.
One ZIO1616 extends 16 general inputs and 16 digital outputs.

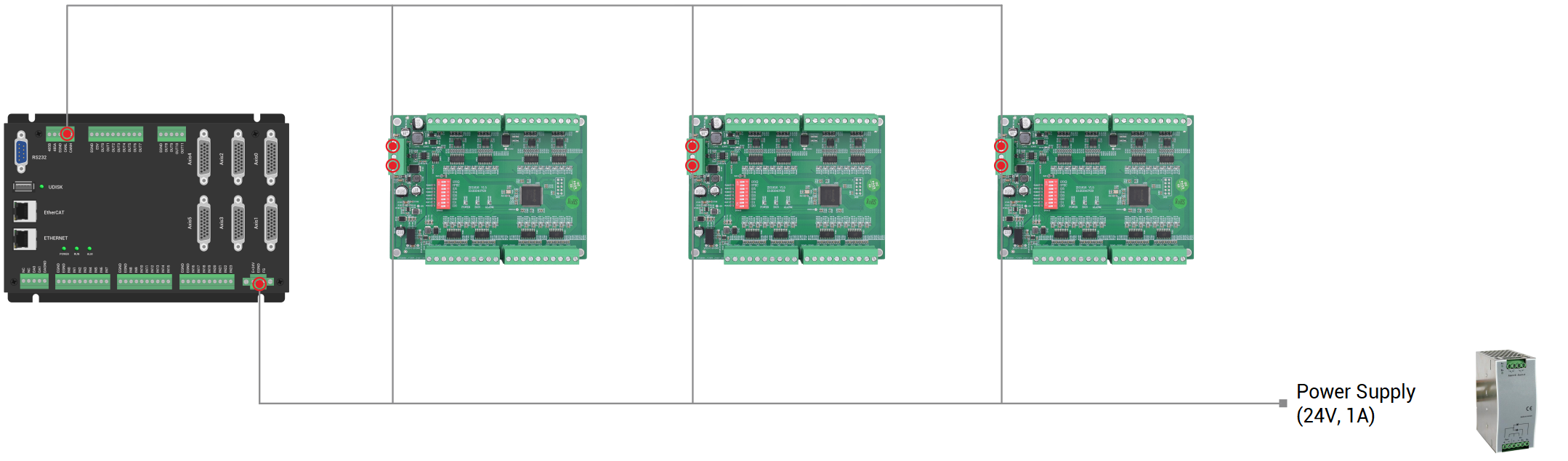

There is one embedded CAN bus port to link with master controller
Combination Value of DIP1-4 | Starting IO No. | End IO No. |
0 | 16 | 31 |
1 | 32 | 47 |
2 | 48 | 63 |
3 | 64 | 79 |
4 | 80 | 95 |
5 | 96 | 111 |
6 | 112 | 127 |
7 | 128 | 143 |
8 | 144 | 159 |
9 | 160 | 175 |
10 | 176 | 191 |
11 | 192 | 207 |
12 | 208 | 223 |
13 | 224 | 239 |
14 | 240 | 255 |
15 | 256 | 271 |
Dial switch 5-6 to configure CAN speed
Combination Value of DIP5-6 | Specification |
0 | Speed 500KBPS |
1 | Speed 250KBPS |
2 | Speed125KBPS |
3 | Speed 1MBPS |

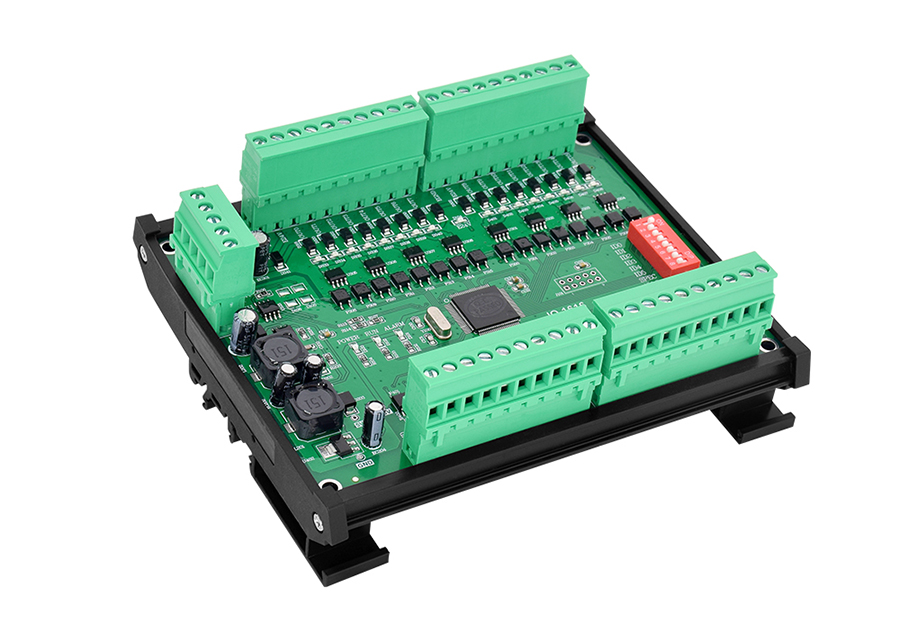

Selectable mounting brackets (ZIO1616M)
