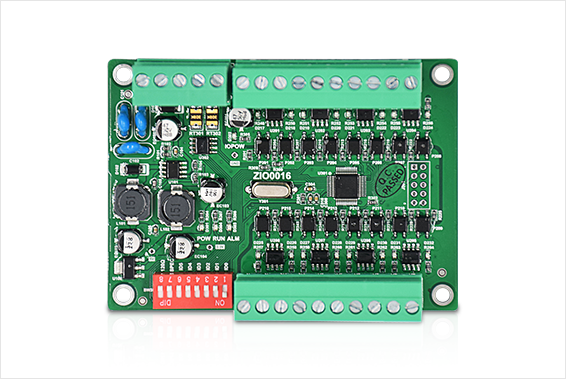

Product name ：ZIO0016 (16 OUT)

Specification: 16 OUT CAN Expansion Module

ZIO0016 is an expansion board that expands 16 digital outputs by CAN protocol. When you only need more outputs, ZIO0016 can do that. And several modules can be used at the same time.
In addition, for ZIO CAN modules, no need to do mapping. There is one DIP switch, just to dial codes.

Features
Parameters

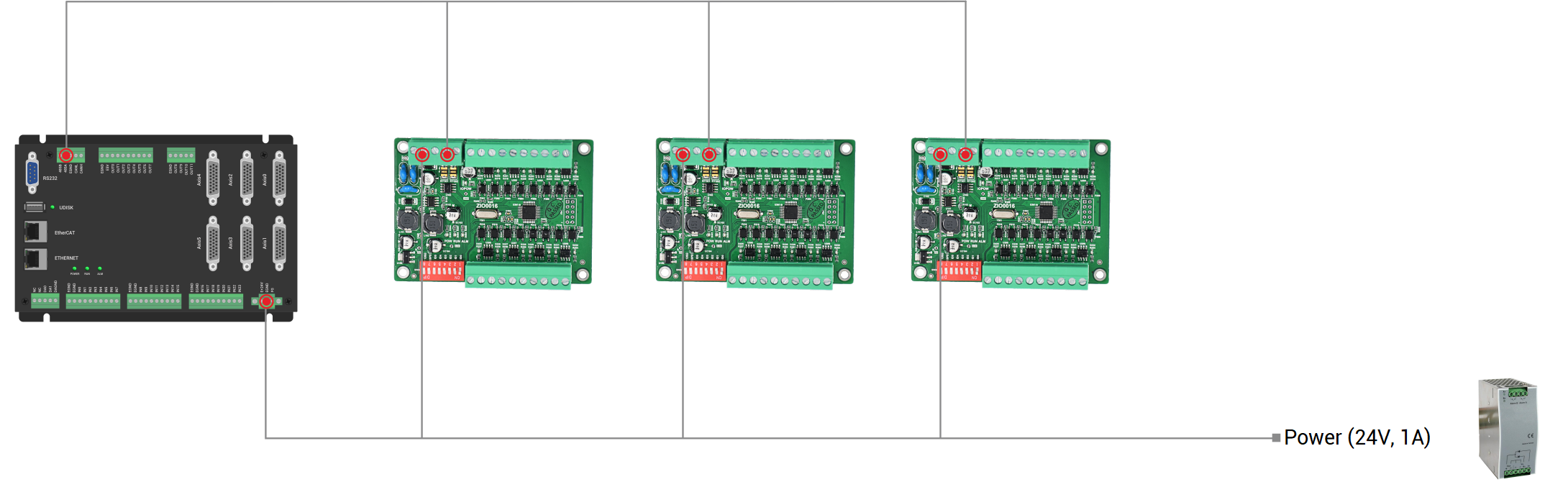

System Architecture
Download

One ZIO0016 extends 16 general outputs.
There is one embedded CAN bus port to link with master controller.
Dial switch 1-4 to configure CAN address
Combination Value of DIP 1-4
Starting IO No.
End IO No.
0
16
31
1
32
47
2
48
63
3
64
79
4
80
95
5
96
111
6
112
127
7
128
143
8
144
159
9
160
175
10
176
191
11
192
207
12
208
223
13
224
239
14
240
255
15
256
271

Dial switch 5-6 to configure CAN speed

Combination Value of DIP 5-6
Specification
0
Speed 500KBPS
1
Speed 250KBPS
2
Speed 125KBPS
3
Speed 1MBPS

Selectable mounting brackets (ZIO0016M)

Name	Version No	Format	Size	Download
ZIO CAN Expansion Module User Manual V2.2.1	V2.2.2	PDF	3.89MB	Download

Combination Value of DIP 1-4	Starting IO No.	End IO No.
0	16	31
1	32	47
2	48	63
3	64	79
4	80	95
5	96	111
6	112	127
7	128	143
8	144	159
9	160	175
10	176	191
11	192	207
12	208	223
13	224	239
14	240	255
15	256	271

Combination Value of DIP 5-6	Specification
0	Speed 500KBPS
1	Speed 250KBPS
2	Speed 125KBPS
3	Speed 1MBPS
