ZMC4XX EtherCAT/RTEX/SCAN Controller

Product name :ZMC412

Specifications: 12 axes pulse motion controller

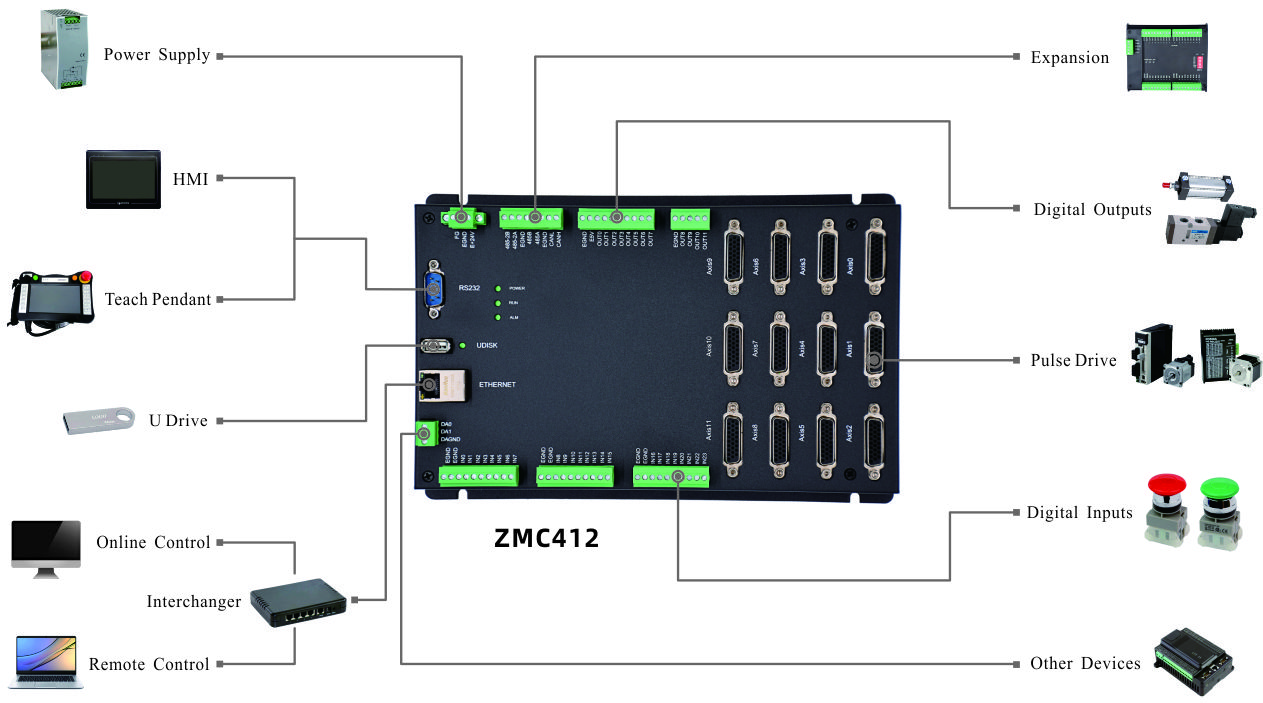

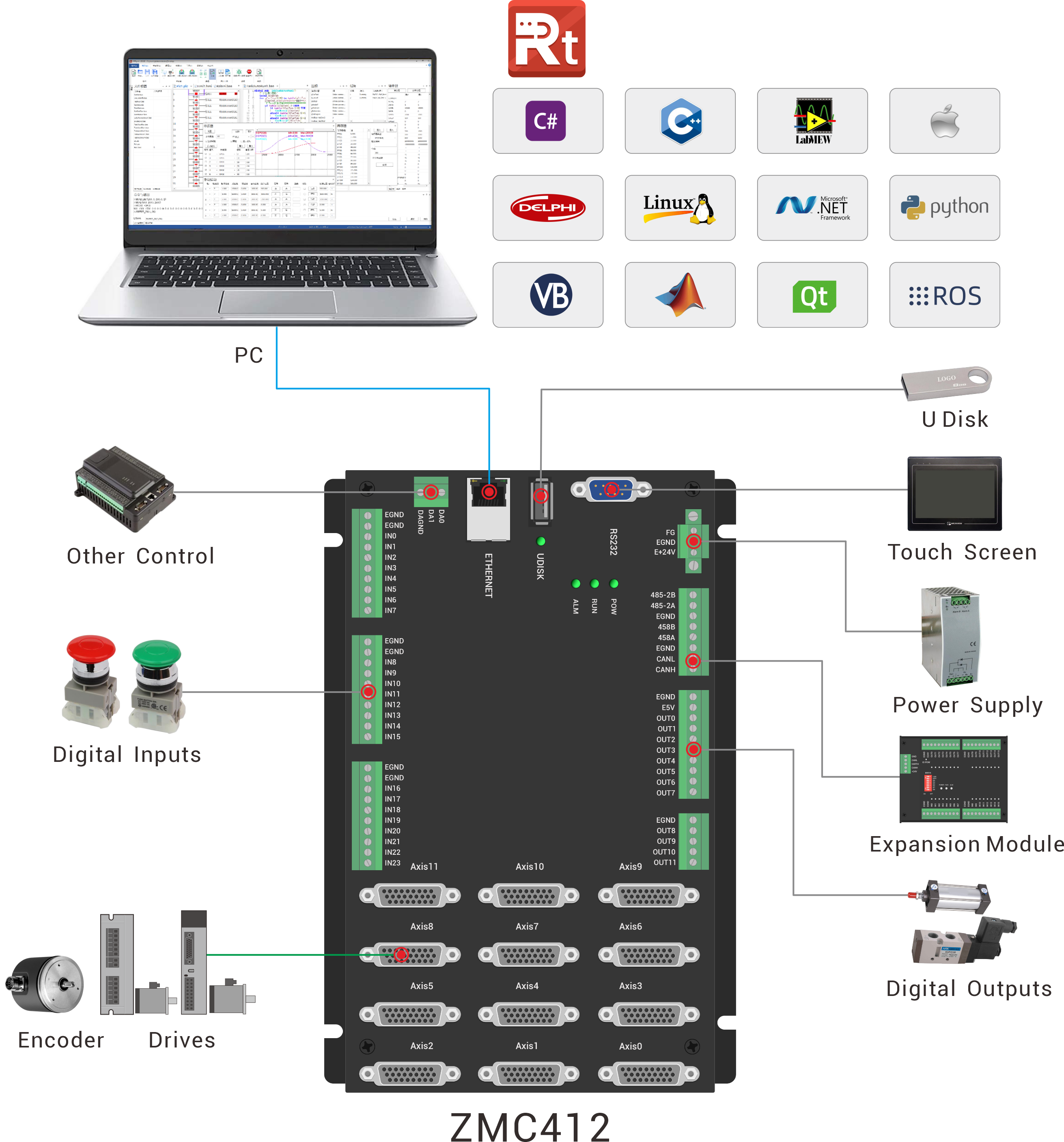

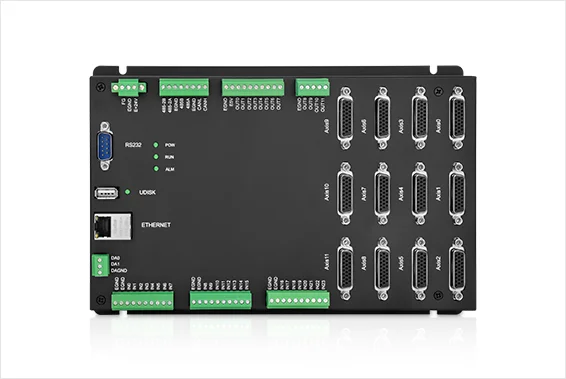

ZMC412 is a kind of high performance pulse motion controller developed by ZMotion Technology. It has 12 basic axes, which can be extended to up to 32 axes. And it has 8 high speed position latchs, 1μs measurement accuracy, GbE(gigabit EtherCAT), RS485, RS232, CAN communication interfaces and 4 high speed hardware comparison outputs.

  • 12 basic axes, which can be extended to up to 32 axes.
    Support encoder position measurement, and encoder port can be configured to handwheel mode.
    Maximum axis output frequency: 10Mhz.
    Maximum extended IOs can reach 512 through CAN.
    The positive or negative limit signal / origin signal of axis can be configured to any inputs.
    The output current can reach 300mA,which can directly drive some kinds of solenoid valves.
    Interfaces: USB Drive, RS232, RS485, Ethernet.
    Interpolation up to 16 axes of linear, circular, spherical, helical etc.
    Electronic cam, electronic gear, position latch, synchronous follow, virutal axis and other functions.
    Support pulse closed loop, pitch compensation, etc.
    Support hardware comparison output(HW_PSWITCH2), hardware timer and precision output in motion.
    Multi-task and multi-file programming in ZBasic.
    Independent continuous interpolation on multi machines
    Various encryption methods to protect customers' intellectual properties
    Power failure detection and power failure storage
    Support independent continuous interpolation on multi-machine
  • Specification

    ZMC412

    ZMC412-14

    Basic Axes

    12

    14

    Max Axes

    32

    32

    Basic Axis Type

    Pulse output (all axes with encoder)

    Pulse ouput (axis 0-11 with encoder)

    Inner IOs

    24 Inputs 12 Outputs (overcurrent protection), and axis 0-11, each has 1 in and 1 out

    Max IOs

    512 Inputs 512 Outputs

    PWM

    2 (output frequency: 1Mhz)

    Inner ADDA

    2 DAs (0-10V)

    Max ADDA

    256 ADs,128 DAs

    Pulse Resolution

    64

    Encoder Resolution

    64

    Speed Resolution

    64

    Max Pulse Speed

    10Mhz

    Axis Motion Buffer

    4096

    Array Space

    320000

    Procedure Space

    2000KByte

    Flash Sace

    256MByte

    Power Supply

    24V DC(power is within 10W,no need of fan cooling), IO load is not included.

    Communication

    RS232,RS485,Ethernet,USB Drive,CAN etc.

    Size

    250*164mm


    Model

    Specification

    ZMC412-14

    14 axes,point to point,Linear,Circular,Electronic Cam,Continuous Interpolation,Robot Instructions.

    ZMC412

    12 axes,point to point,Linear,Circular,Electronic Cam,Continuous Interpolation,Robot Instructions.

    ZMC412R

    12 axes,point to point,Linear,Circular,Electronic Cam,Continuous Interpolation,Robot Instructions,Delta,6 joints.


  • ZMC412架构图.png

  • Name Version No Format Size Download
    ZMC412 -- 3D Model V ZIP 1.49MB Download
    ZMC412 -- EPLAN V ZIP 16.4MB Download
    ZMC412 Controller User Manual V1.5 V1.5 PDF 2.45MB Download
