ECI3000

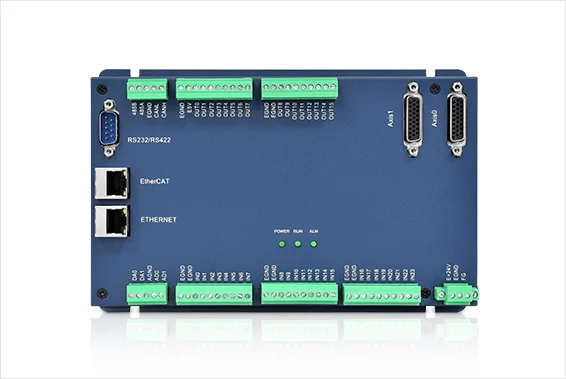

Product name :ECI3828

Specifications: 12 axes network motion control card

ECI3828 supports maximum 12 axes linear inerpolation, random circular interpolation, space arc, helical interpolation, electronic gear, electronic cam, synchronous follow, virtual axis setting, etc. Multi-task can run at the same time for ZMC. And it can directly do simulation on PC.

  • Support EtherCAT bus communciation.
    Virtual axis motion control can reach 16 (there are 8 real axes on ECI3828).
    Pulse output mode: directional / pulse or dual pulse.
    The refresh period of ECAT bus is ms.
    Support encoder position measurement, which can be configured as handwheel input mode.
    The max output pulse frequency of each axis is 10MHz.
    Isolation inputs or outputs can be extended to 4096 through EtherCAT bus.
    Axis position limit signal/origin signal can be configured as any inputs.
    The max output current can reach 300mA, which can directly drive some valves.
    RS232 and Ethernet interfaces.
    Interpolation of linear, random circular, helical and spline can reach 12 axes at most.
    Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis, etc.
    Support hardware comparison output (HW_PSWITCH2), hardware timer, precision output in motion.
    Multi-file and multi-task can program in ZBasic.
    There are various program encryptions to protect customer's intellectual property.

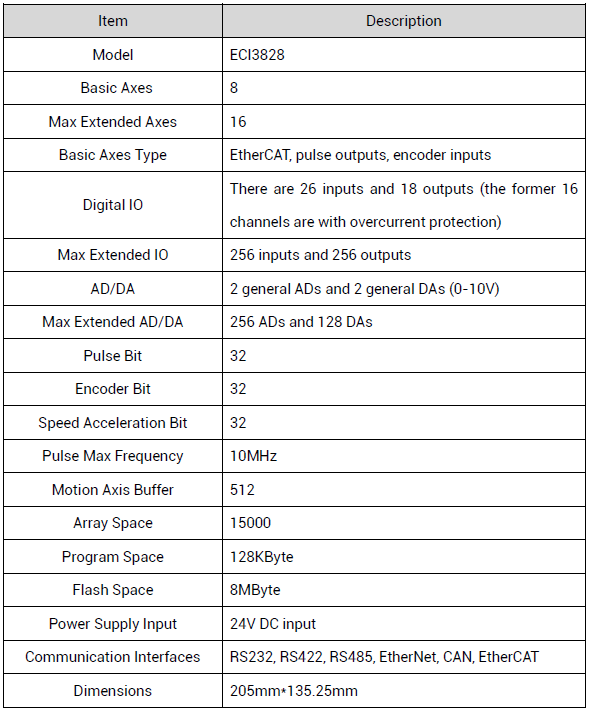

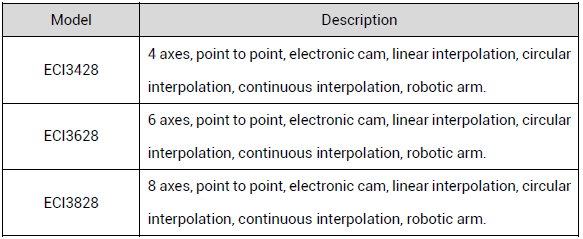

  • Specification

    ECI3628

    ECI3828

    Basic Axes

    6

    8

    Max Axes

    12

    12

    Basic Axis Type

    EtherCAT, 2 pulse outputs, 2 encoder inputs

    Inner IOs

    26 inputs 18 outputs (the first 16 channels with overcurrent protection)

    Max IOs

    512 inputs 512 outputs

    Inner ADDA

    2 ADs, 2 DAs.

    Max ADDA

    256 ADs, 128 DAs

    Pulse Resolution

    32

    Encoder Resolution

    32

    Speed Resolution

    32

    Max Pulse Speed

    10Mhz

    Axis Motion Buffer

    512

    Array Space

    15000

    Procedure Space

    128KByte

    Flash Sace

    8MByte

    Power Supply

    24V DC, IO 24V input

    Communication

    RS232, Ethernet, EtherCAT

    Size

    205*135.25mm

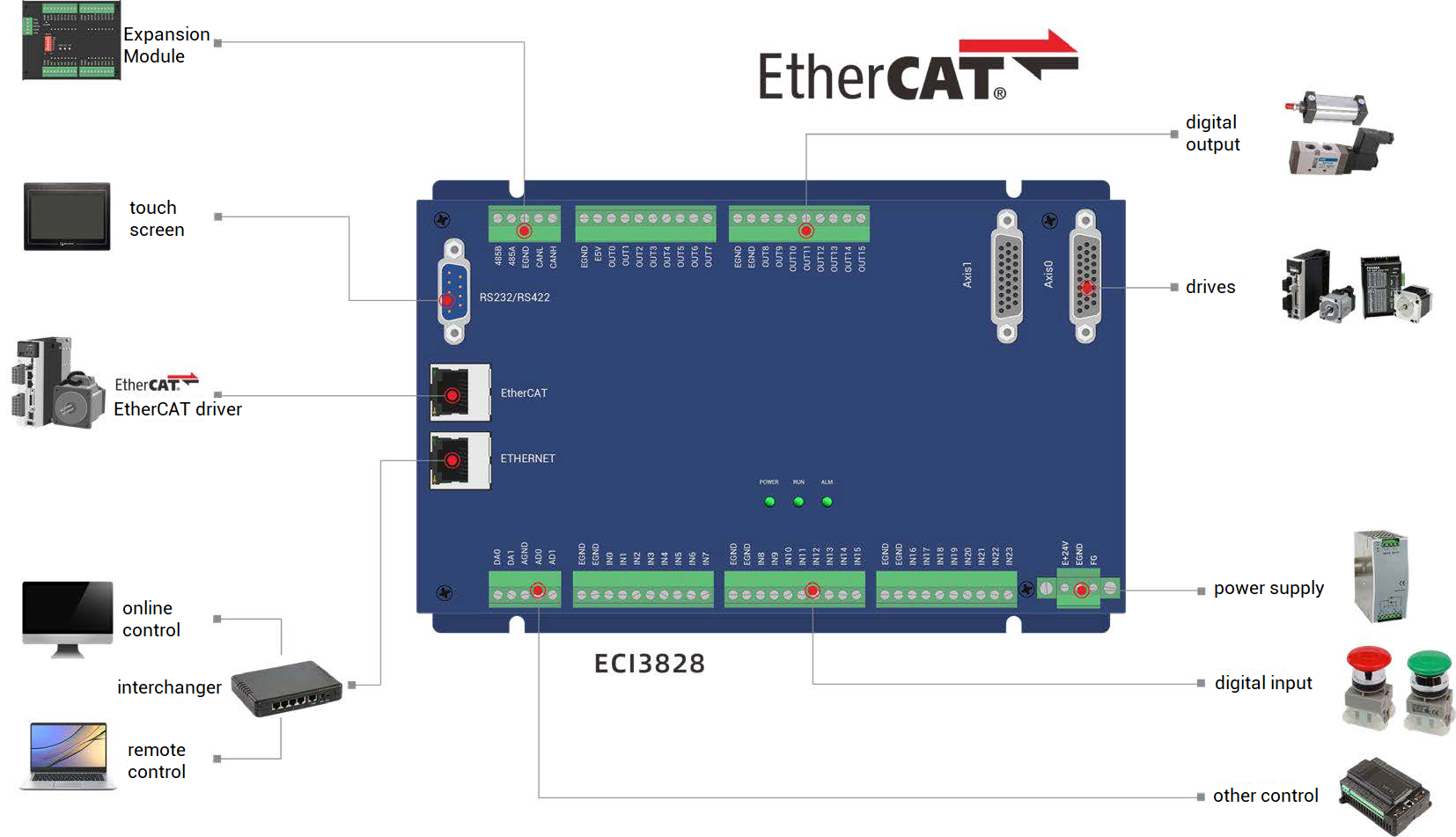

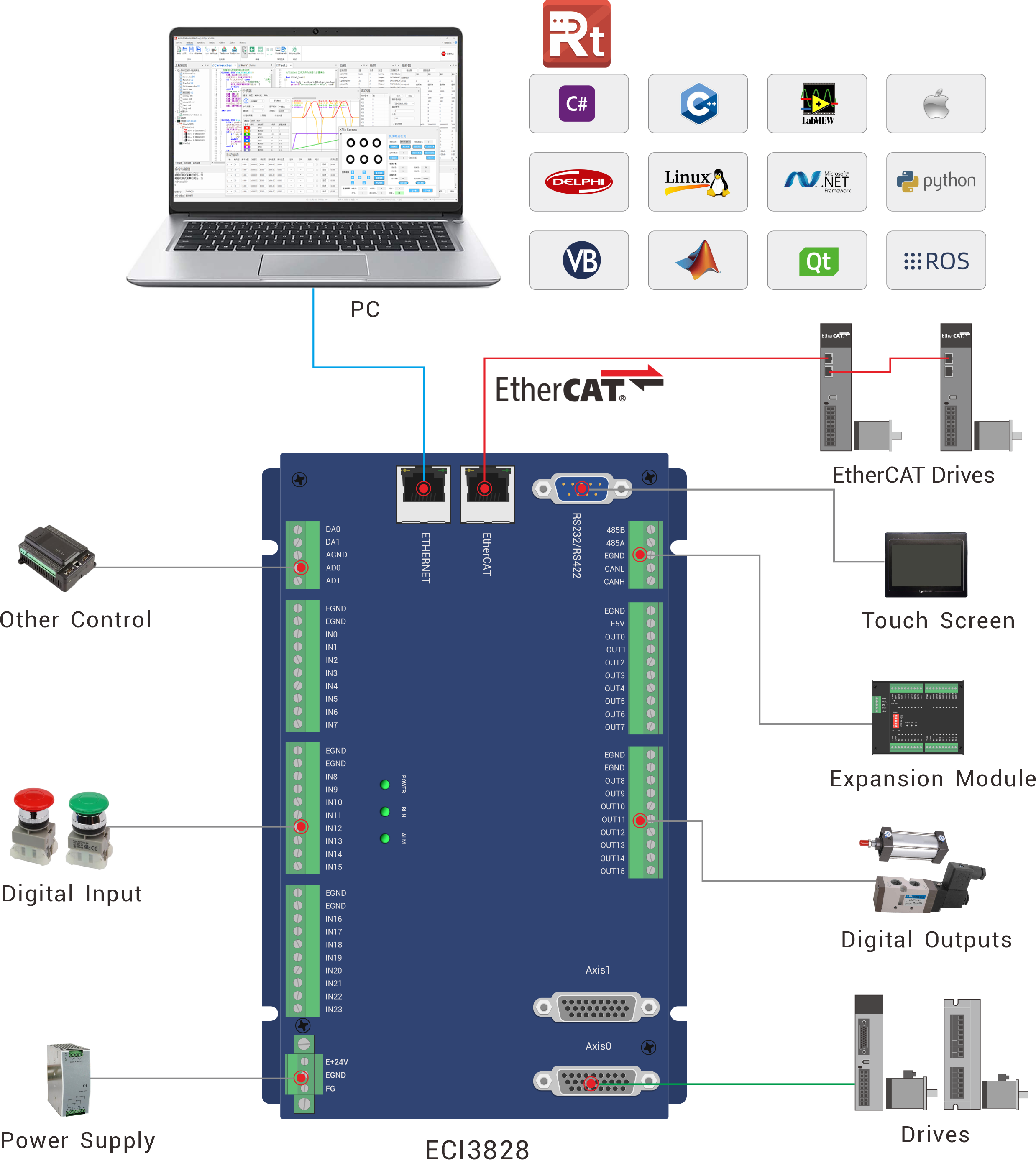

  • \ECI3838架构图.png


  • Name Version No Format Size Download
    ECI3828 Motion Control Card User Manual V1.5 V1.5 PDF 2.65MB Download
