CAN Bus Expansion

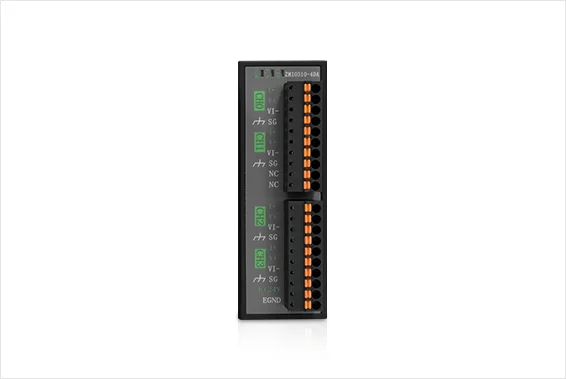

Product name :ZMIO310-4DA

Specifications: Vertical EtherCAT AIO Anlog Output Module

The ZMIO310-4DA expansion sub-module is a 4-channel analog output expansion sub-module used by the ZMIO310 expansion module. When the AIO resources are not enough, it can be used with the ZMIO310-ECAT communication modules to expand the number of analog output.

  • IOs: up to 256 inputs and 256 outputs through one coupler.
    Analog: up to 32 ADs or 32 DAs through one coupler.
  • Specification

    ZMIO300-4DA

    Output Channels

    4

    Power Supply

    24V DC

    Current Load Resistance

    >10KΩ

    Voltage Output Range

    bipolar ±5V, ±10V, unipolar: +5V, +10V

    Current Output Range

    0~20mA, 4~20mA

    Resolution

    16 bits

    Switch Time

    1ms per channel

    Precision (25℃)

    Voltage:±0.1%, Current:±0.1% (full range)

    Precision (0~55℃)

    Voltage:±0.3%, Current:±0.8%

    Inner Power

    0.3W

    Total Power

    0.9W

    Isolation Mode

    optocoupler


  • 架构图.png

  • Name Version No Format Size Download
    ZMIO310 Vertical Bus Expansion Module User Manual V1.0 V1.0 PDF 2.51MB Download
    ZMIO310 -- 3D Model V ZIP 994KB Download
