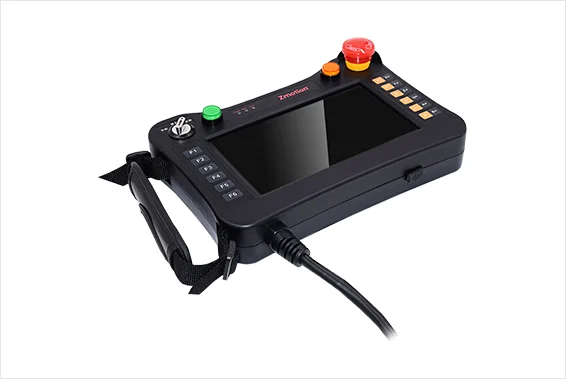

Product name ：ZHD400X
Specifications:ZHD400X teach pendant
ZHD400X is a kind of touch screen teach pendant displayed through network, and it must be used with ZMOTION motion controllers that support XPLC function, and the controller-development software, Zdevelop's version should be above 2.6. It has one USB, U Disk interface, 24V power supply(can use USB), a display screen with 800*480 resolution, 18 buttons, and with an emergency stop switch, buttons and touching can be used together.
Programmable teaching box, which can realize various display interfaces through script programs.
Drawing functions: line, circle, pircute, characters (Chinese and English), etc.
Emergency button embedded.
47/18 keys embedded, and this can be customized.
Serial port, USB port, U drive port, etc.
Support MODBUS or self-defined protocol.

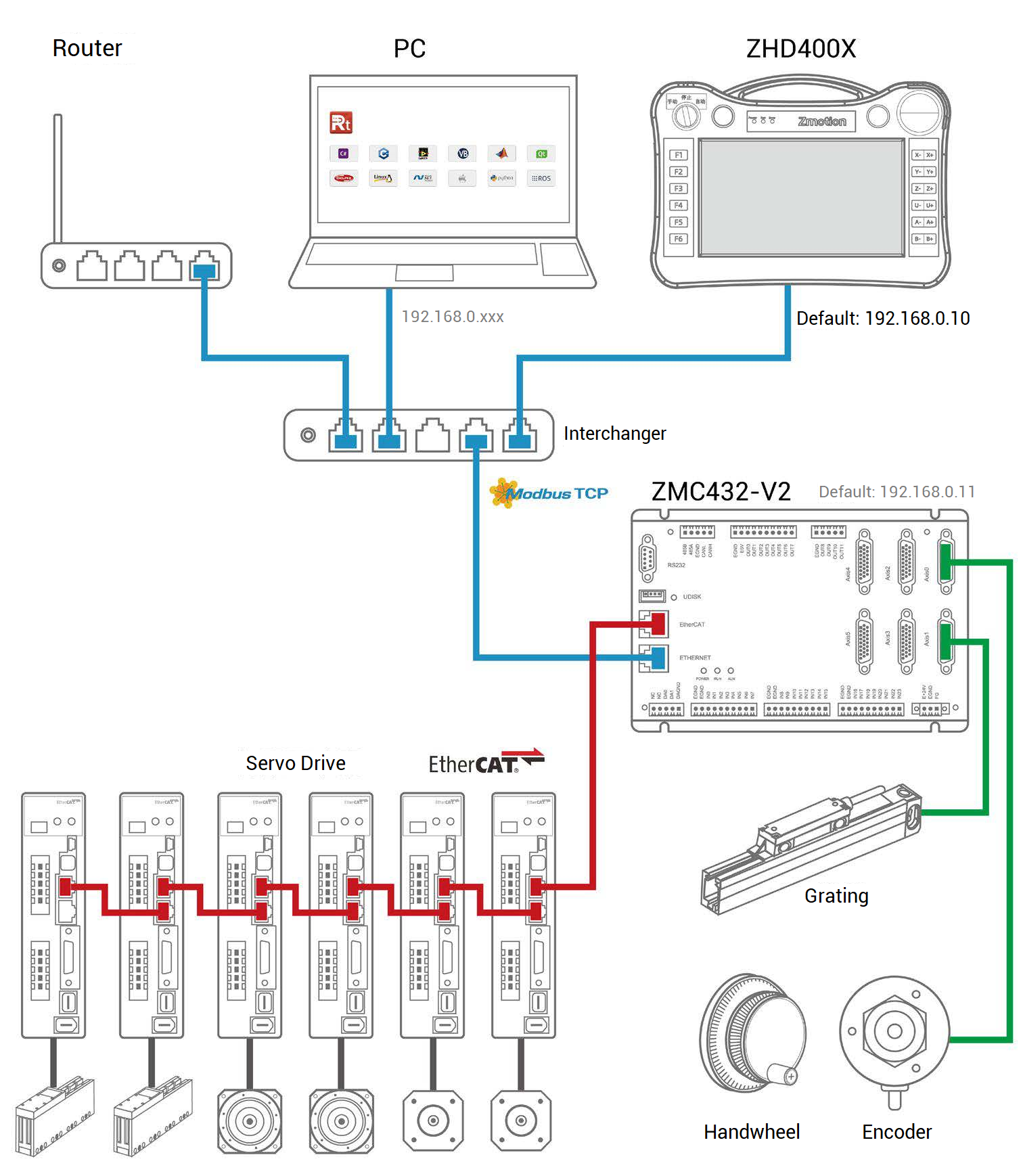

Capable of different kinds of machines or robots control.
Support screen touch.

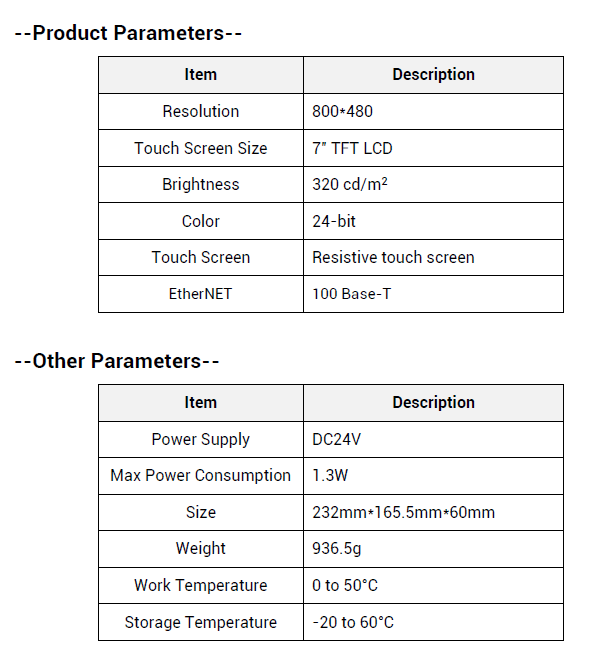

Screen resolution: 800*480

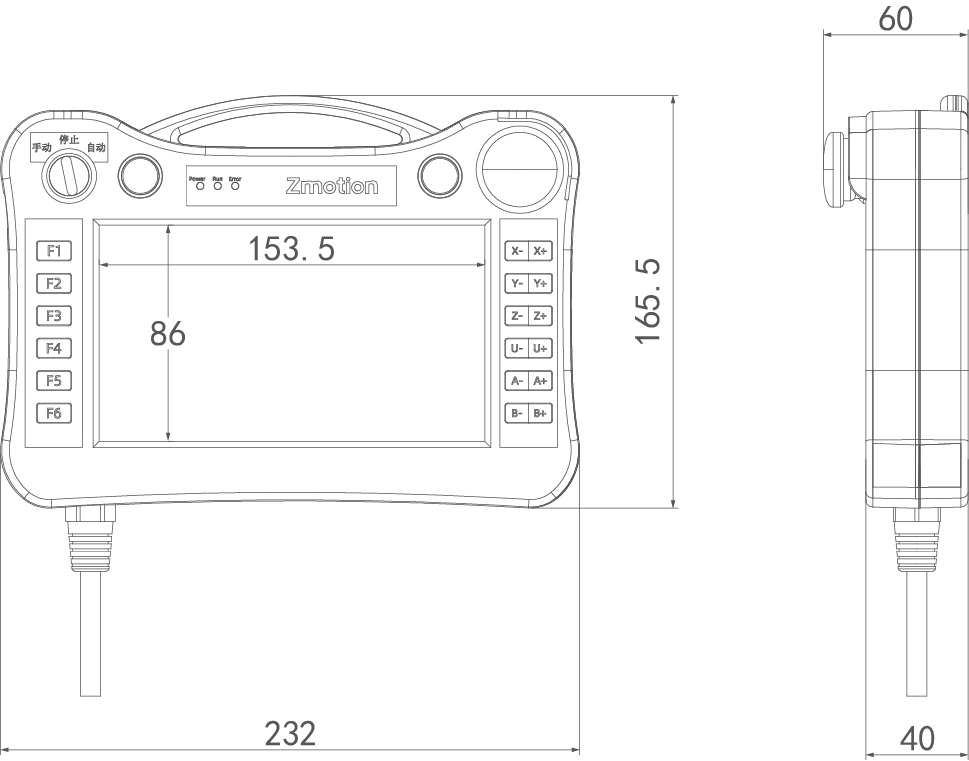

Pin | Name | Specifications |
1 | USB_5V | U Drive + 5V power output |
2 | USB_D- | Diffrencial data D- |
3 | USB_D+ | Diffrencial data D+ |
4 | USB_GND | U Drive ground(isolated with digital ground) |
5 | GND | Digital ground |
6 | NC | Reserved |
7 | EMG | Emergency stop |
8 | GND | Digital ground |
9 | DC24V | 24V power input |
10 | GND | Digital ground |
11 | NC | Reserved |
12 | ETH_TX- | Ethernet TX- |
13 | ETH_TX+ | Ethernet TX+ |
14 | ETH_RX- | Ethernet RX- |
15 | ETH_RX+ | Ethernet RX+ |
