XPLCXXX Series

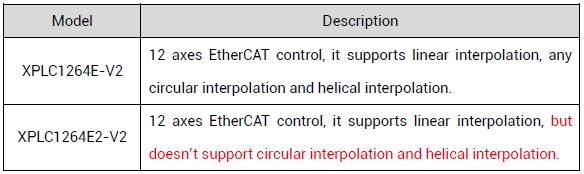

Product name :XPLC1264E2

Specifications: 12 axes EtherCAT motion controller

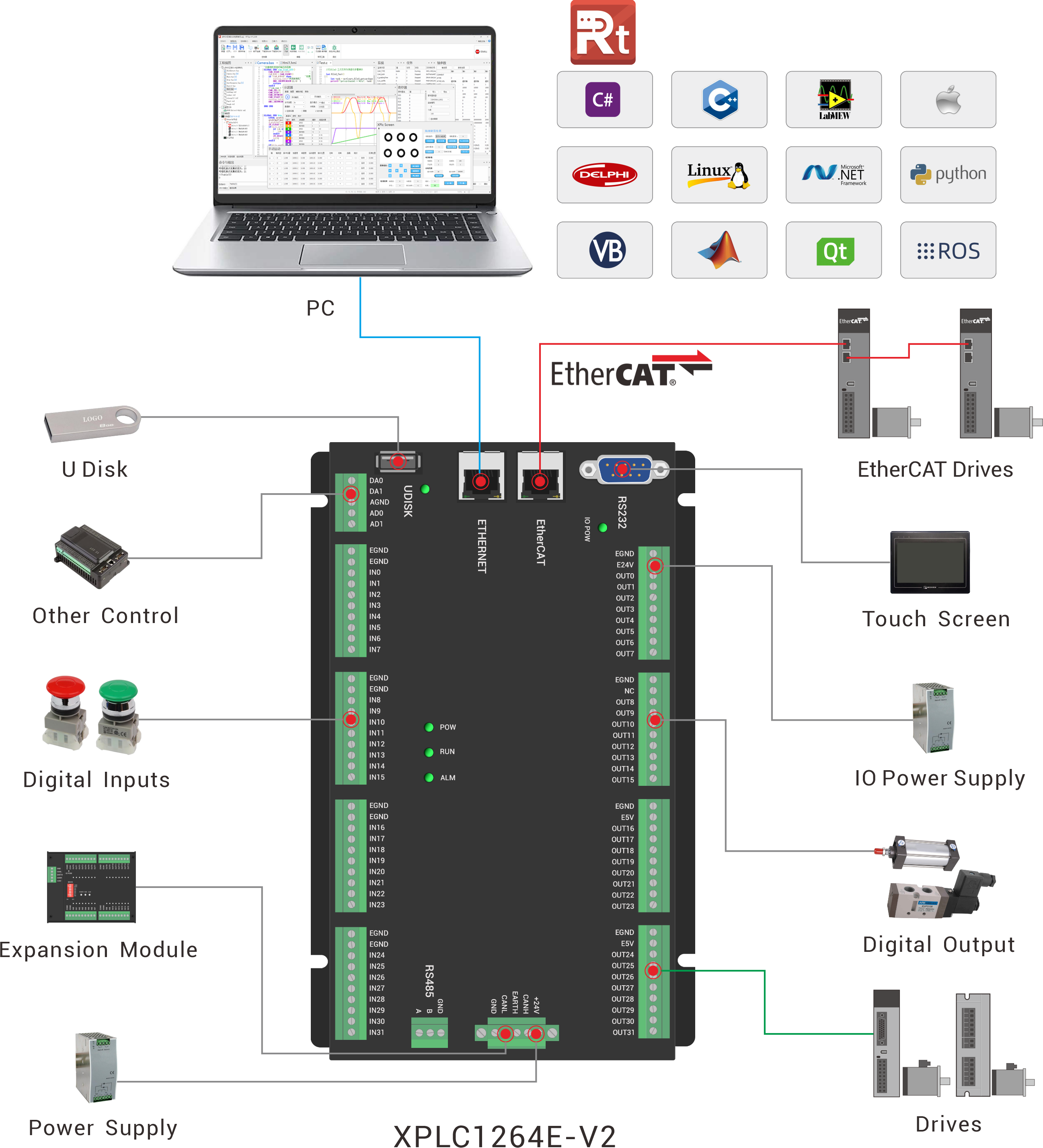

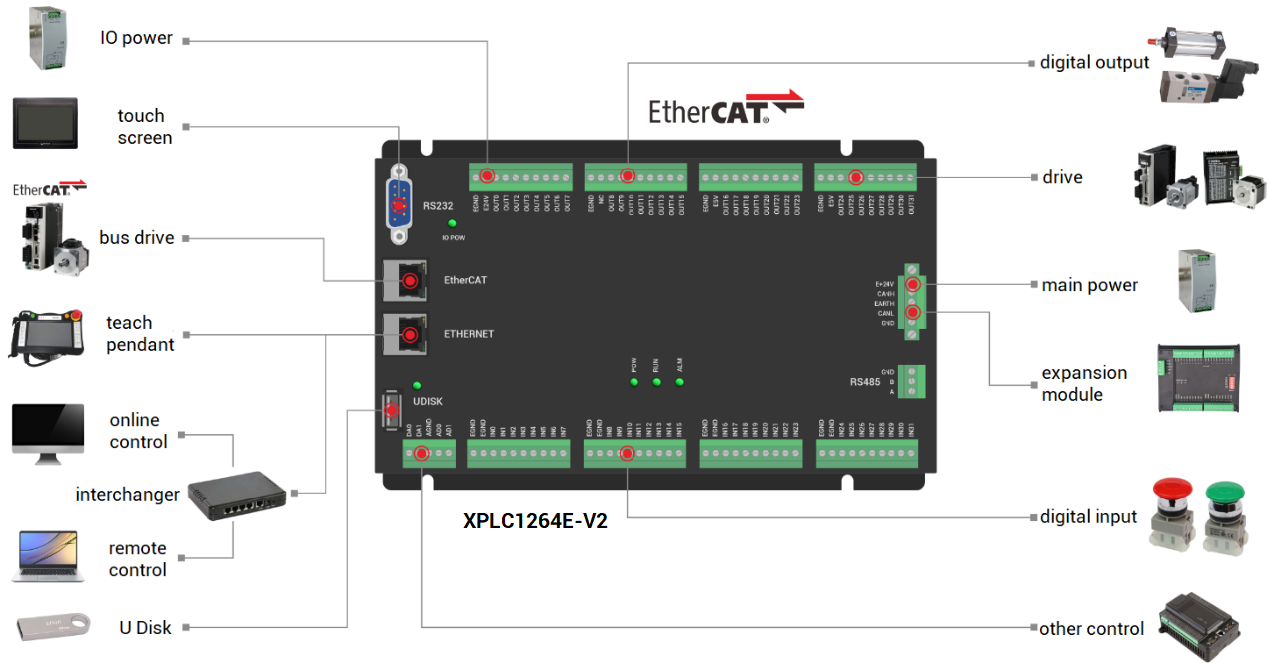

XPLC1264E2 is a ZMC motion controller that integrates ladder of diagram and comfiguration software. XPLC series motion controllers can be applied in any place with PC or without PC. XPLC864E has 12 basic axes, which can be extended to up to 16 axes, and there are many functions it can achieve, such as, linear interpolation, electronic cam, synchronous follow, virtual-axis, etc. In addition, multi-task can run at the same time, also can do simluation on PC directly.

  • It supports 12 axes basically, motion control of up to 16 axes.
    The fastest EtherCAT refresh period can reach 1ms.
    Pulse output mode: direction / pulse
    Support encoder position measurement, which can be configured as handwheel input mode.
    Max output pulse frequency of each axis is 500KHz.
    IOs can reach 512 through CAN Expansion.
    Positive or negative position limit or origin of axis can be configured to any input.
    The output current of OUT28-31 can reach 300mA at most, which can directly drive some kinds of solenoid valves.
    Support 12 axes interpolation of linear, any circular and helical.
    Electronic cam, electronic gear, position latch, synchronous follow, virtual axis etc.
    Multi-file and multi-task programming in ZBasic.
    Various encryption methods to protect customers' intellectual properties.

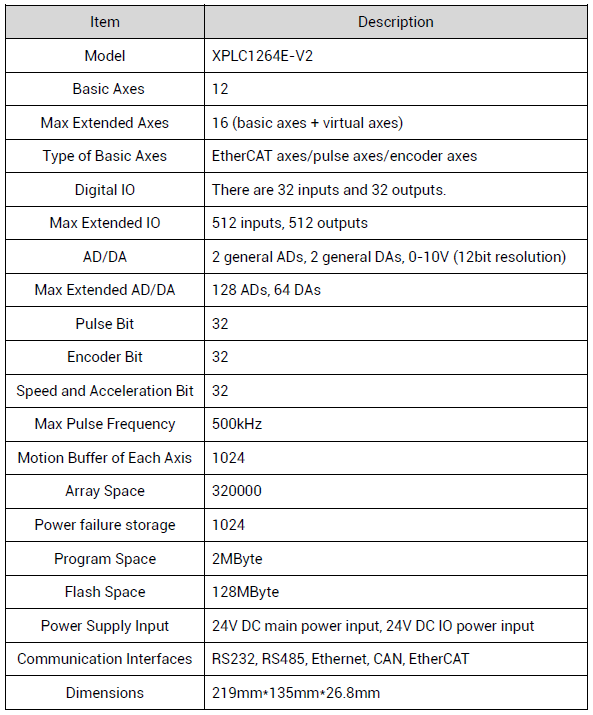

  • Specification

    XPLC1264E2

    Basic Axes

    12

    Max Axes

    16

    Basic Axis Type

    EtherCAT+Pulse (16), 2 Encoder axes

    Inner IOs

    32 Inputs 32 Outputs (share with axis channel)

    Max IOs

    512 Inputs 512 Outputs

    Inner DA

    /

    Max ADDA

    256 ADs,128 DAs

    Pulse Resolution

    32

    Encoder Resolution

    32

    Speed Resolution

    32

    Max Pulse Speed

    500Khz

    Axis Motion Buffer

    128

    Array Space

    20000

    VR Number

    1024

    Procedure Space

    2 MByte

    Flash Sace

    8 MByte (128 blocks)

    Power Supply

    24V DC, IO Power Supply:24V DC

    Communication

    RS232,RS485,CAN,etc

    Size

    219*135mm


  • XPLC1264E2 ying.png


  • Name Version No Format Size Download
    V Download
    XPLC1264E2 -- 3D Model V ZIP 115KB Download
