EtherCAT Expansion

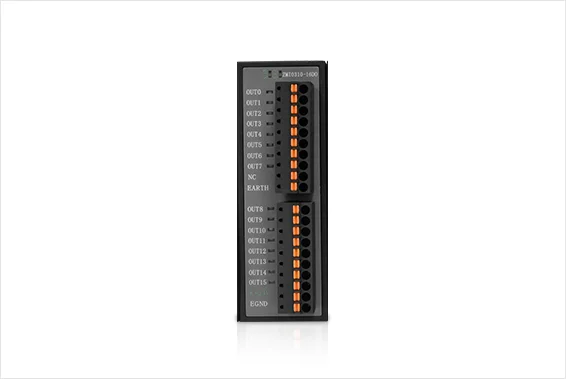

Product name :ZMIO310-16DO EtherCAT Bus Expansion Module

Specifications: Vertical EtherCAT IO digital output module

ZMIO310-16DO is a 16 digital outputs expansion module used for ZMIO310 expansion modules. When IO resources are not enough, it can be matched with ZMIO310-ECAT communication module to expand digital output terminal numbers.

  • IO: one coupler can expand up to 256 inputs or outputs.
    Analog: one coupler can expand up to 32 ADs or DAs.
  • Item

    Specification

    ZMIO310-16DO

    ZMIO310-16DOP

    Power voltage

    24VDC

    The number of outputs

    16

    The type of output

    Digital output

    The method of output

    Leakage (NPN, it is low electric level when there is output)

    Leakage (PNP, it is high electric level when there is output)

    Output overcurrent protection

    Max is 300mA

    The max leakage current when OFF

    25 μ A

    25 μ A

    Respond time when OFF

    12 μs

    12 μs

    Respond time when ON

    80μs

    60μs

    Internal power

    0.3W

    Power

    1.3W

    Isolation

    Coupler isolation

    Frequency (output)

    <8kHz

    Action showing (output)

    When the output is ON, output indication led will light.

    Service

    Firmware upgrade


  • 0.png

  • Name Version No Format Size Download
    ZMIO310 Vertical Bus Expansion Module User Manual V1.0 V1.0 PDF 2.51MB Download
    ZMIO310 -- 3D Model V ZIP 994KB Download
