ECI3000 Series

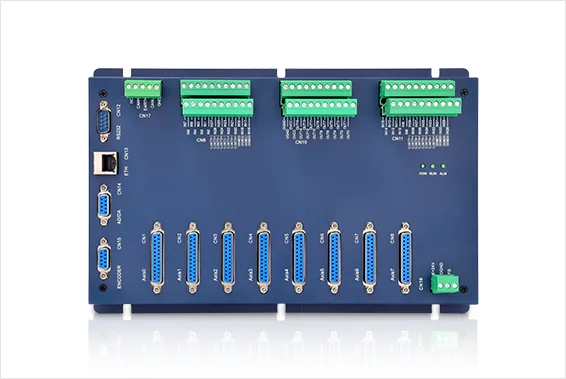

Product name :ECI3808

Specifications: 8 axes pulse motion control card

ECI3808 is a kind PC based motion control card developed by ZMOTION, it has 8 basic axes, which can be extended to 12 axes. It supports point to point, electronic cam, interpolation of linear, circular, etc. continuous interpolation, robotic arm instructions, etc. Real-time motion control is available through optimized network communication protocol.

  • 8 basic axes, can be extended to 12 axes.
    Pulse output mode: direction+pulse or double pulse.
    Encoder position measurement is supported and can be configured as hand wheel input mode.
    Maximum axis pulse output frequency: 8Mhz.
    Maximum inputs or outputs can reach 256 through CAN bus.
    Positive or negative position limit or origin of axis can be configured to any input.
    The output current can reach 300mA,which can directly drive some kinds of solenoid valves.
    Linear interpolation of up to 12 axes,interpolation of circular,helical etc.
    Electronic cam,electronic gear,continuous interpolation, robot instrucitons etc.
    Multi-file and multi-task programming in ZBasic.
    Various program encryption methods to protect customers' intellectual properties.
    Independent continuous interpolation on multi machine.

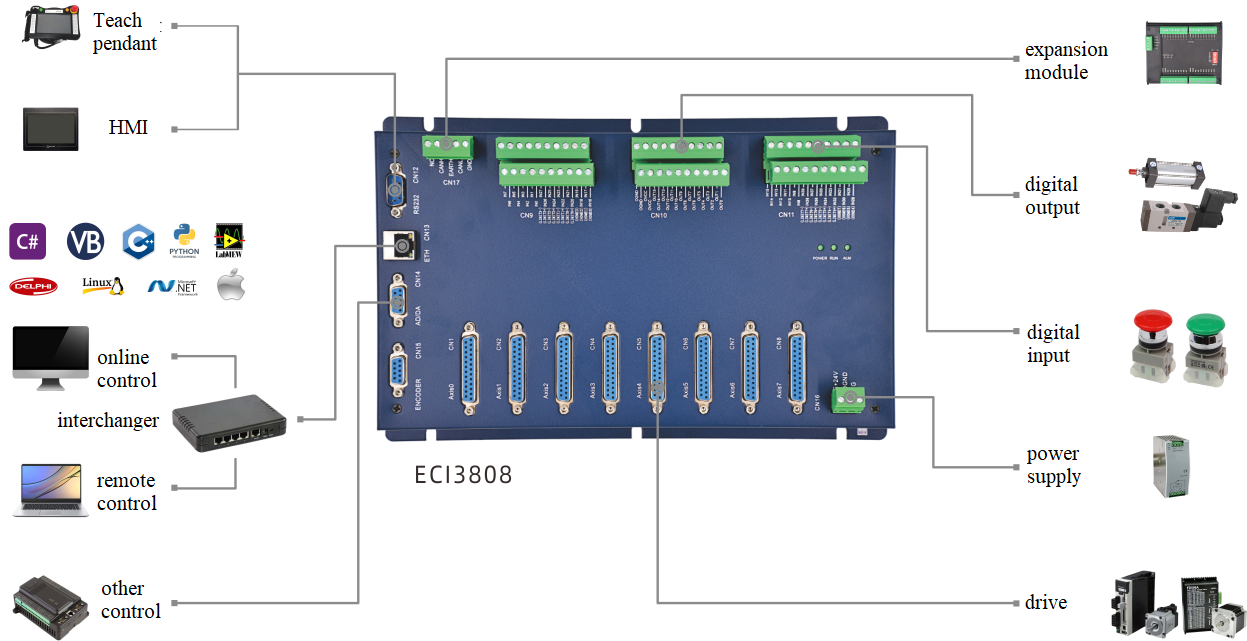

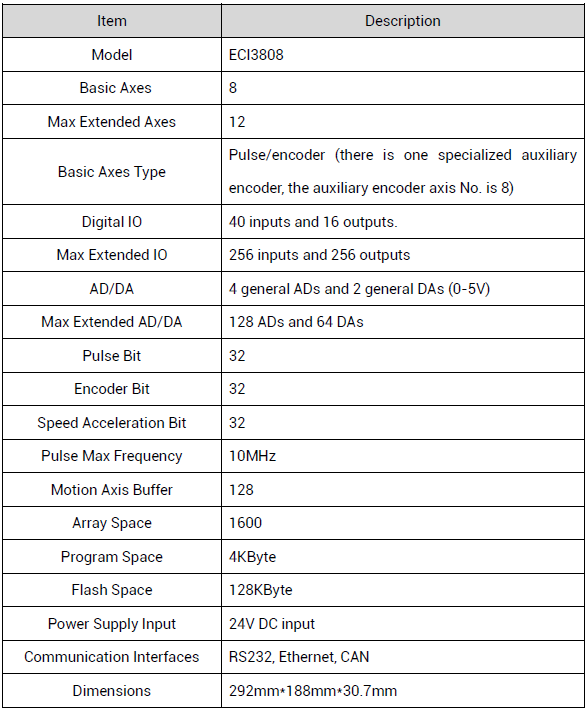

  • Specification

    ECI3608

    ECI3808

    Basic Axes

    6

    8

    Max Axes

    12

    12

    Basic Axis Type

    Pulse/Encoder(another one specialized auxilary encoder, its axes number is 8)

    Inner IOs

    40 Inputs 16 Outputs (with overcurrent protection)(each axis has enable/alarm/alarm clear signal)

    Max IOs

    256 Inputs 256 Outputs

    PWM

    2 (output frequency: 1Mhz)

    Inner ADDA

    4 ADs, 2 DAs.(0-5V)

    Max ADDA

    125 ADs, 64 DAs

    Pulse Resolution

    32

    Encoder Resolution

    32

    Speed Resolution

    32

    Max Pulse Speed

    10Mhz

    Axis Motion Buffer

    128

    Array Space

    1600

    Procedure Space

    4KByte

    Flash Sace

    128MByte

    Power Supply

    24V DC(power is within 10W,no need of fan cooling),IO Power Supply:24V DC

    Communication

    RS232,Ethernet,CAN

    Size

    292*188mm

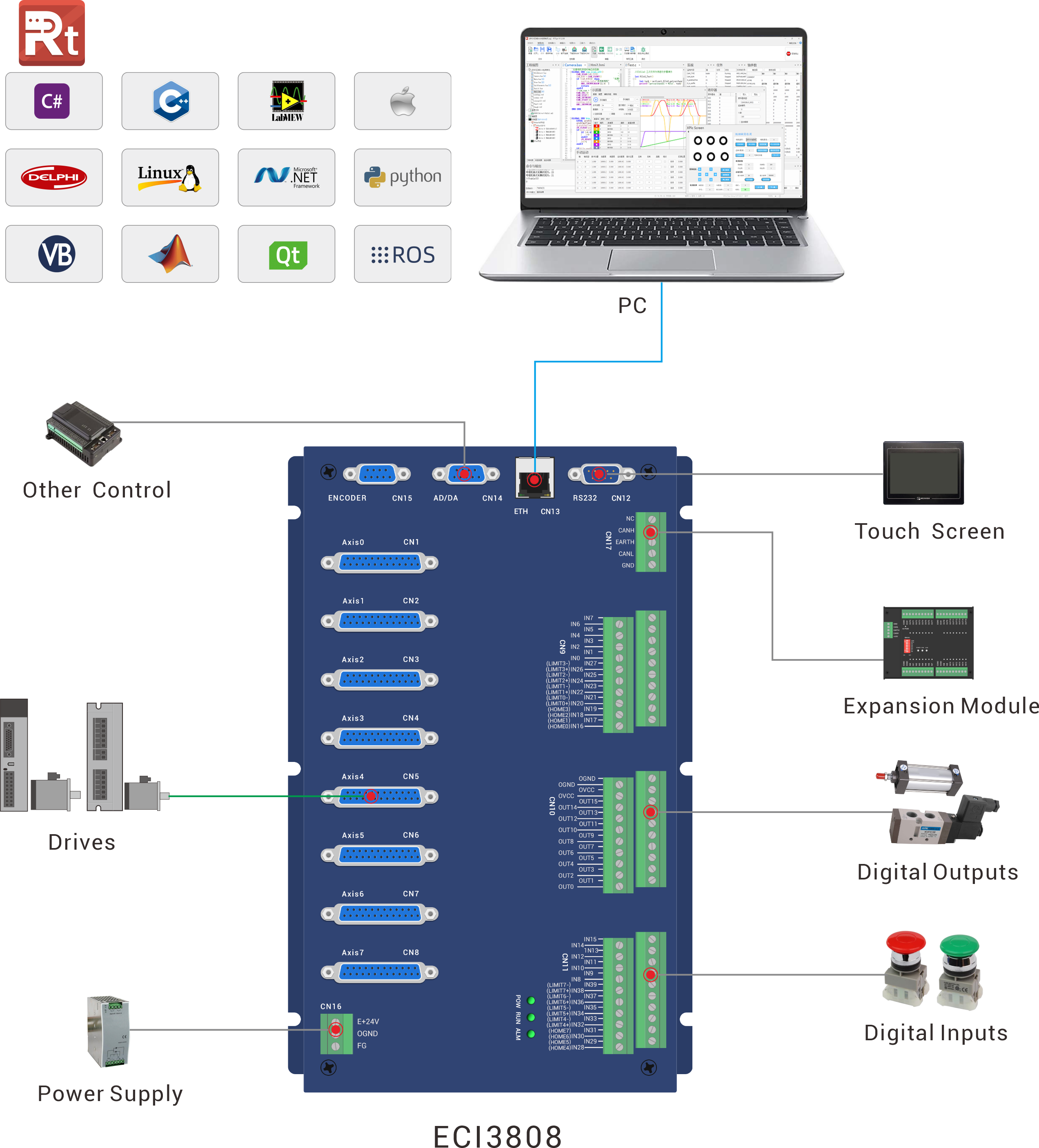

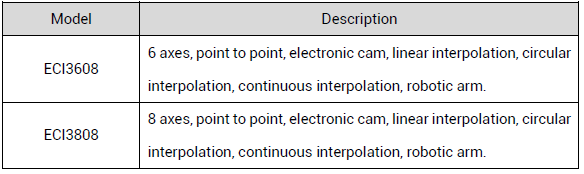

    Model

    Specification

    ECI3600

    6 axes,Point to Point,Electronic Cam,no interpolation.

    ECI3602

    6 axes,Point to Point,Electronic Cam,linear Interpolation.

    ECI3606

    6 axes,Point to Point,Electronic Cam,linear and circular Interpolation.

    ECI3608

    6 axes,Point to Point,Electronic Cam,linear and circular Interpolation,Continuous Interpolation,robotic instructions.

    ECI3800

    8 axes,Point to Point,Electronic Cam,no interpolation.

    ECI3802

    8 axes,Point to Point,Electronic Cam,linear Interpolation.

    ECI3806

    8 axes,Point to Point,Electronic Cam,linear and circular Interpolation.

    ECI3808

    8 axes,Point to Point,Electronic Cam,linear and circular Interpolation,Continuous Interpolation,robotic instructions.


  • ECI3808 ying.png

  • Name Version No Format Size Download
    ECI3808 Network Motion Control Card Hardware Manual Verison 1.3 V1.3 PDF 1.4MB Download
