Today, ZMotion shares one 4-axis network control card ECI1408.
There are two main parts, Introduction and Applications.
Let’s learn together ~

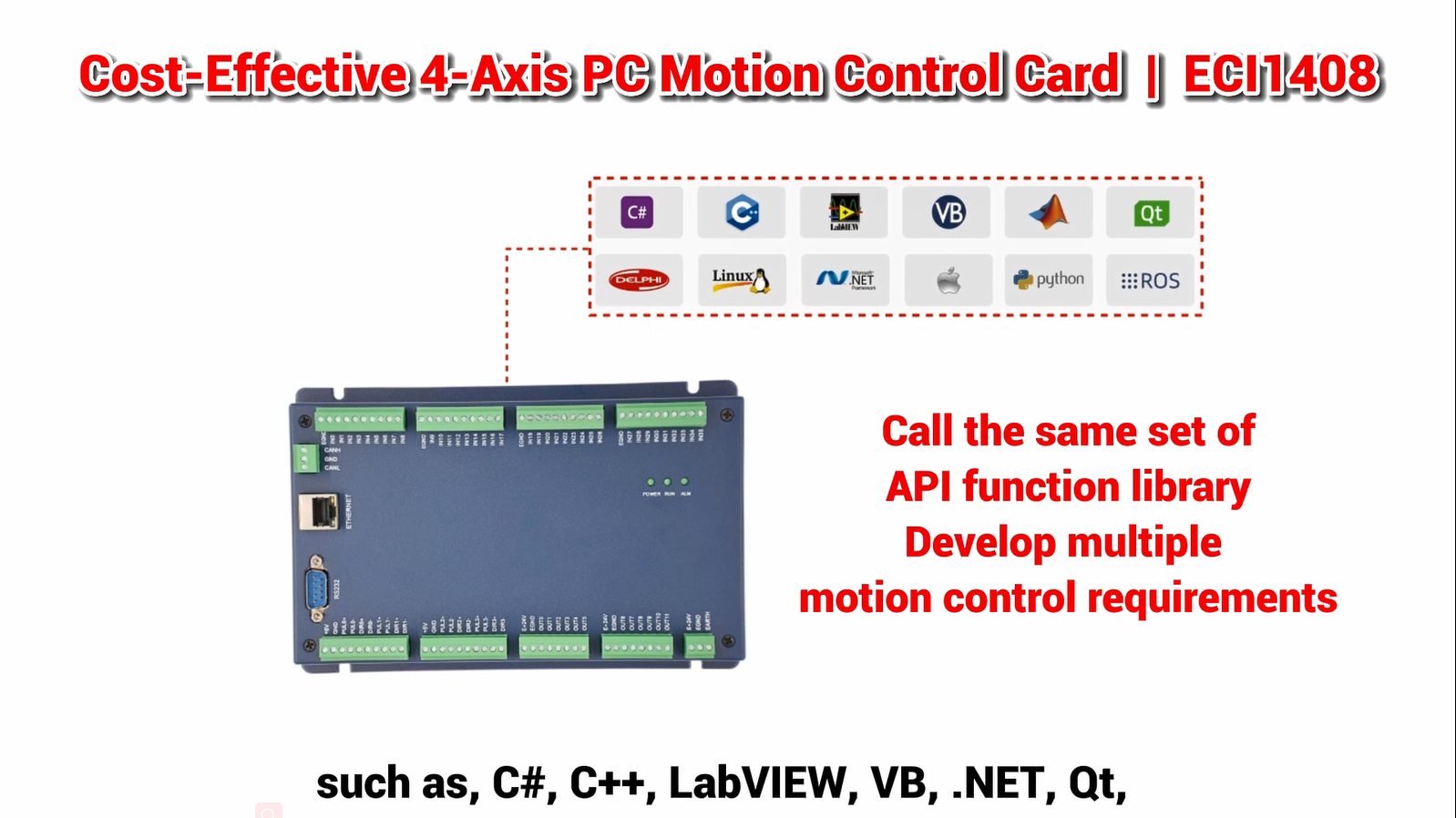

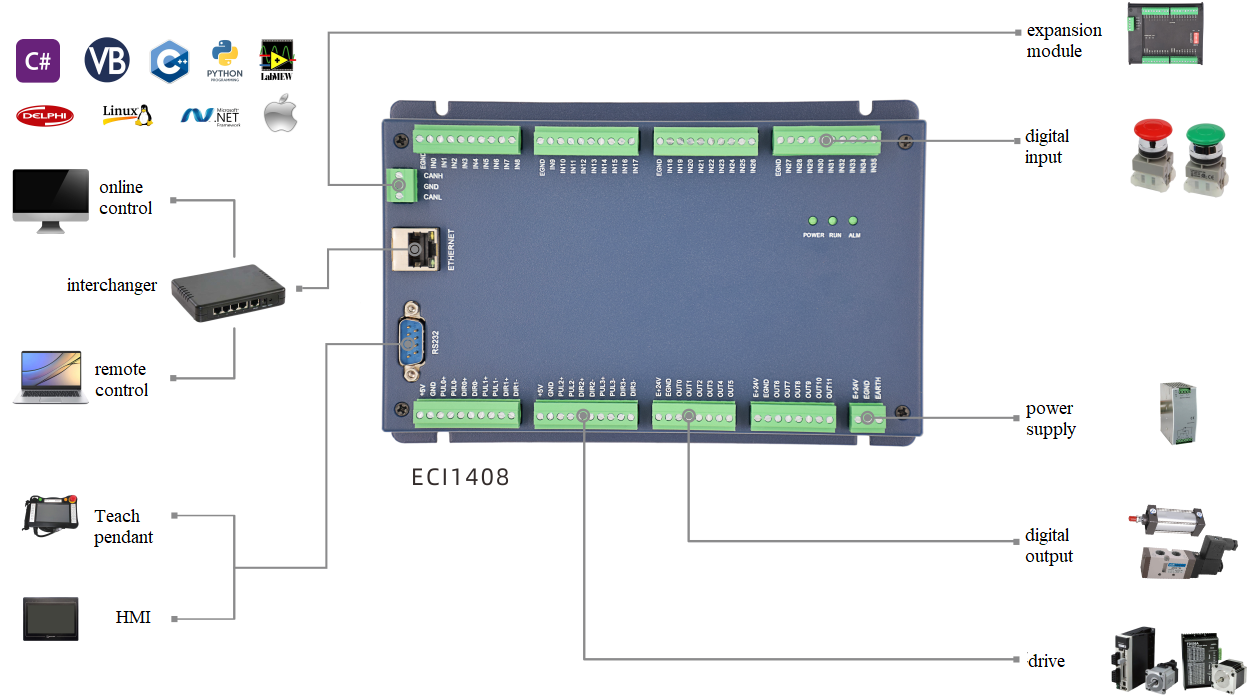

Uniform API function can be called through optimized net port communication,
such as, C#, C++, LabVIEW, VB, .NET, Qt, Python, ROS, MATLAB, Delphi, Linux, etc.
It has 36 general inputs and 12 general outputs.

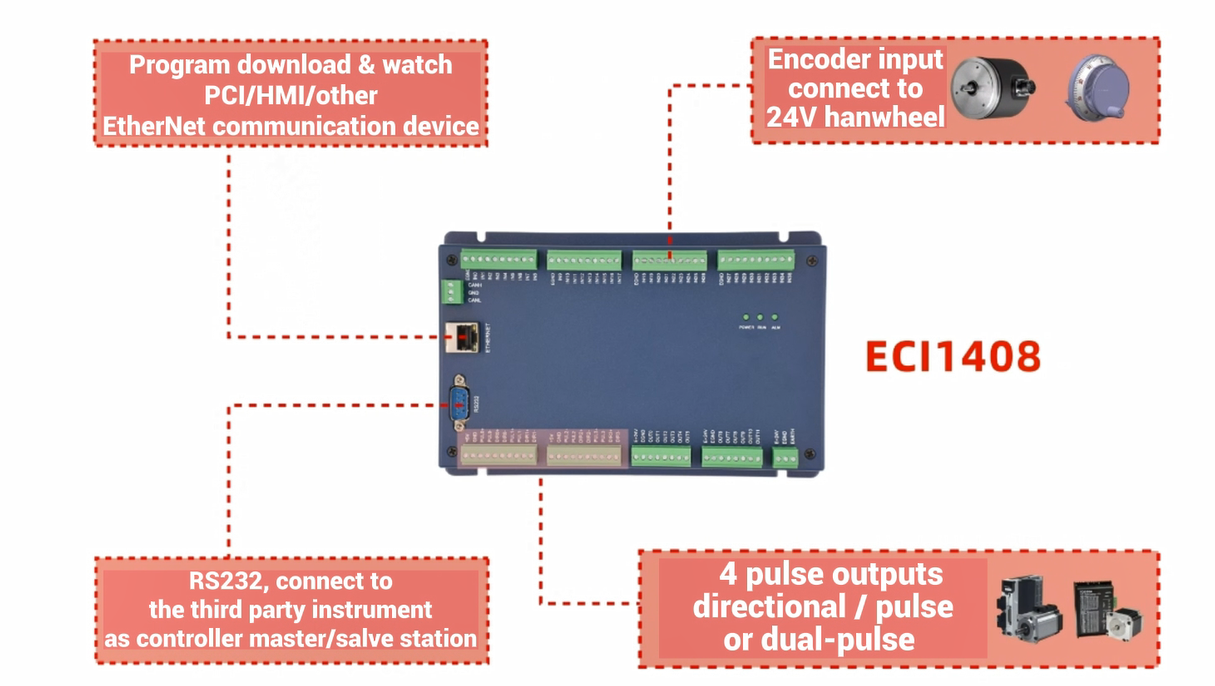

→ 4 pulse outputs can be connected to servo or step.
→ Encoder inputs can be connected to 24V handwheel.
→
RS232 interface can be connected to the third party instrument.

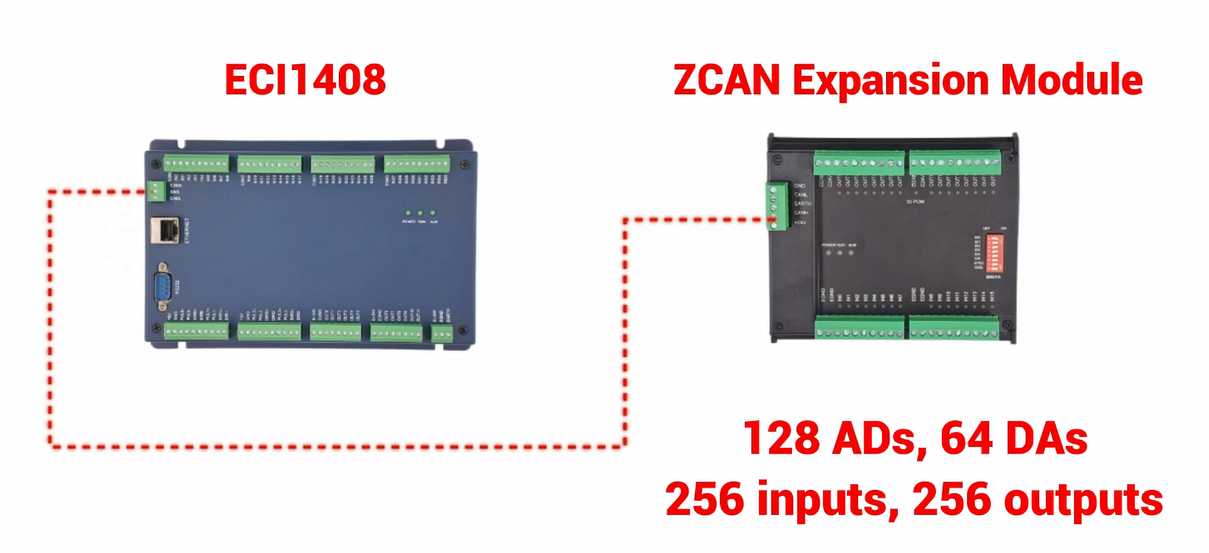

In addition, it can expand 128 ADs, 64 DAs,256 inputs and outputs.
Product Functions:
The max pulse output frequency is 5MHz.
S curve, dynamic speed in motion can be achieved.
Point to point, linear and circular interpolation, continuous trajectory processing.
Product Advantages:
Pretty economical | Cost-Effective
Net port communication, uniform API function can be called, it is convenient to develop.
No need of PCI card slot, IPC configuration requirements can be reduced and space can be solved.
No need to install PCI drive, one cable is enough, easy to debug.
No need of adapter wiring or board, easy to wiring and check.

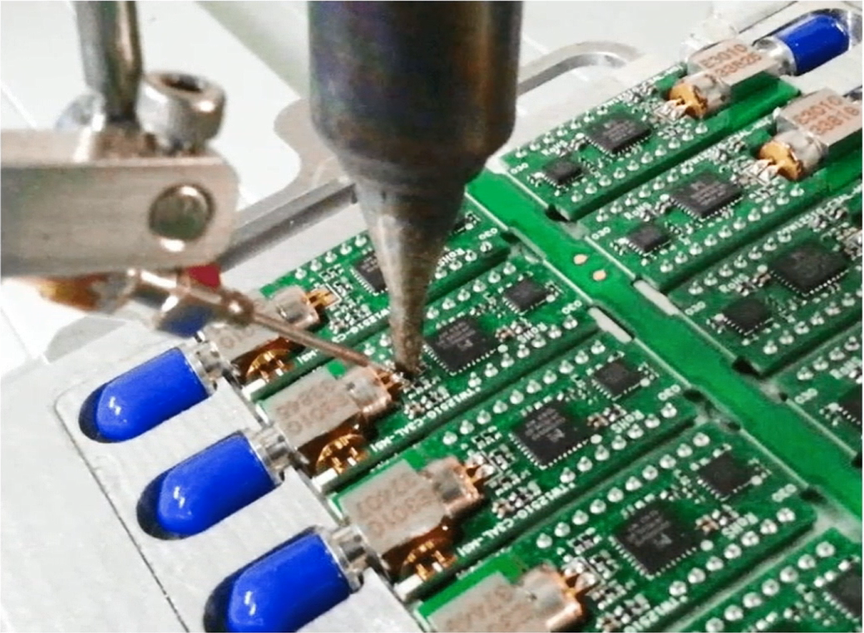

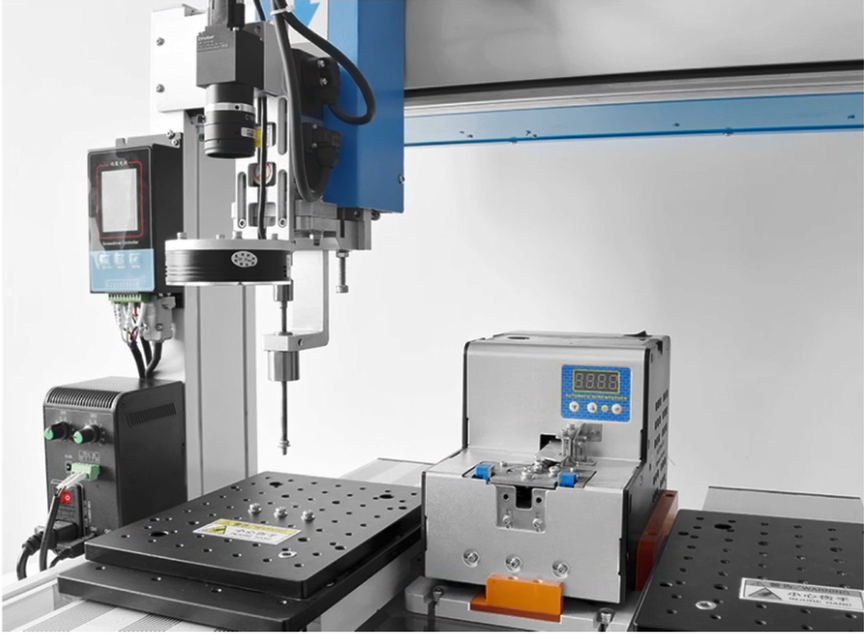

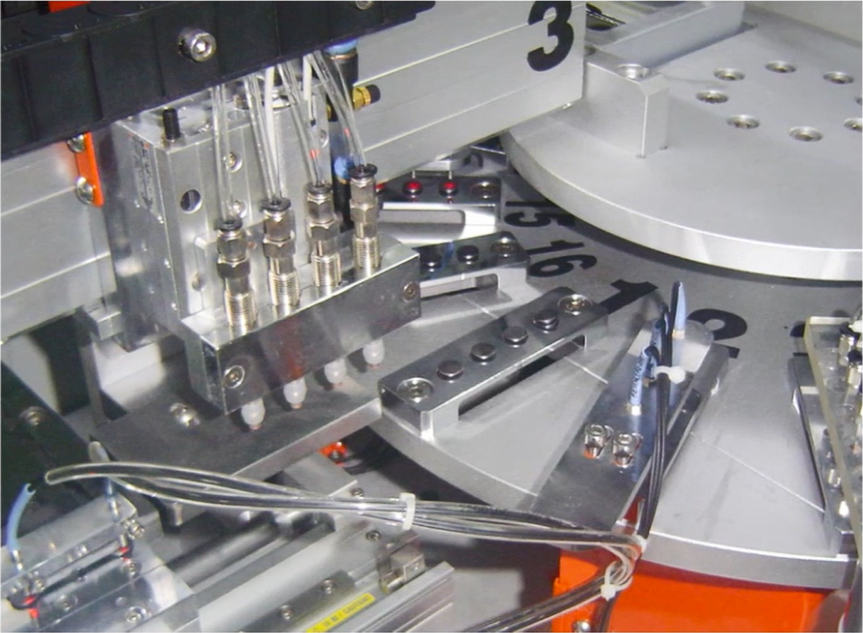

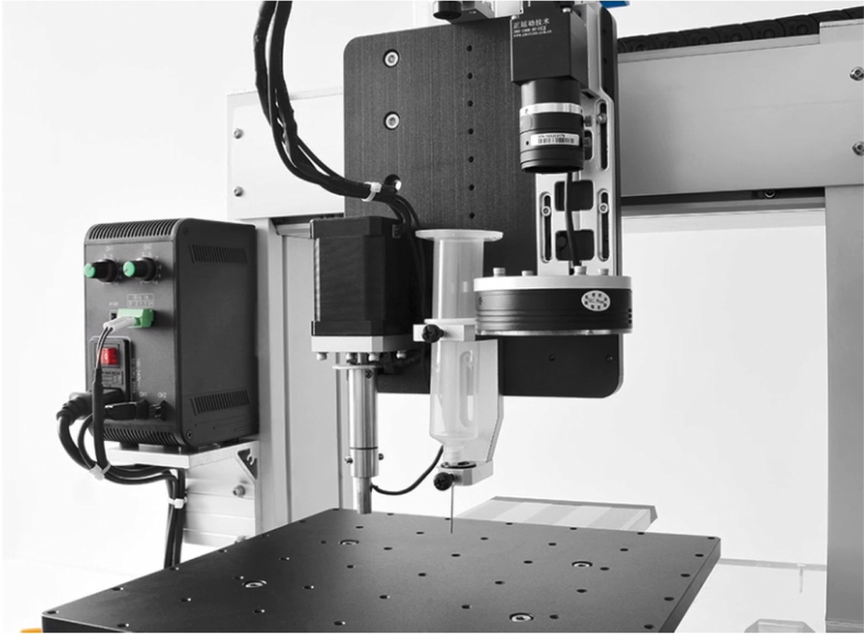

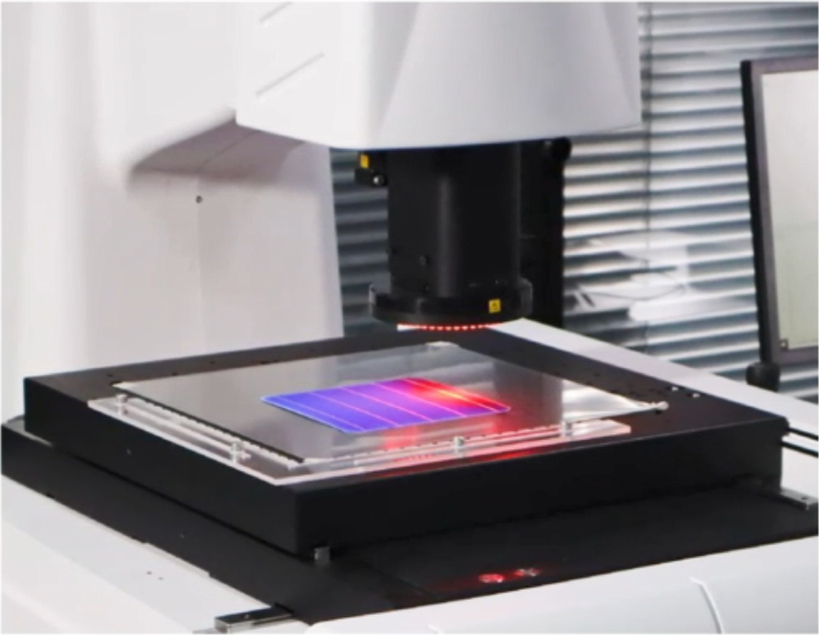

ECI1408 cost-effective card is applied in 1-4 axis pulse occasions, such as, dispensing, locking, welding, assembly, detection, non-standard automation, etc.
